HP TOUCHSMART TM2 Maintenance And Service Guide

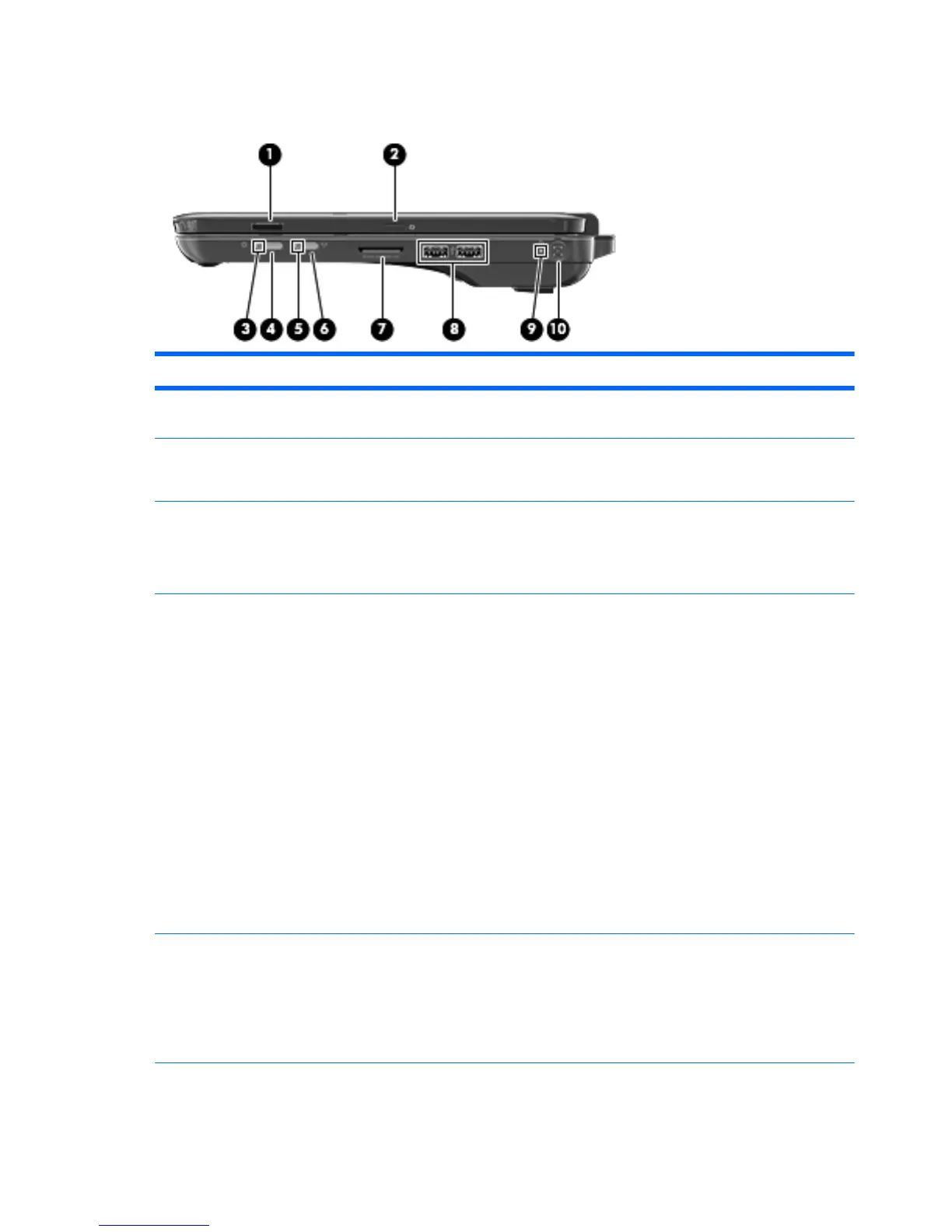

Right-side components
Item Component Function
(1) Fingerprint reader (select models only) Allows a fingerprint logon to Windows instead of a
password logon.
(2) Rotate button Rotates the screen image counterclockwise to 4
orientations: landscape primary, portrait primary,
landscape secondary, and portrait secondary.
(3) Power light
●
White: The computer is on.
●
Blinking white: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
(4) Power switch
●
When the computer is off, slide the power switch
to turn on the computer.
●
When the computer is on, briefly slide the power
switch to exit Sleep.
●
When the computer is in the Sleep state, briefly
slide the power switch to exit Sleep.
●
When the computer is in Hibernation, briefly slide
the power switch to exit Hibernation.
If the computer has stopped responding and Windows
shutdown procedures are ineffective, slide and hold the
power switch for at least 5 seconds to turn off the
computer.
To learn more about your power settings, select Start
> Control Panel > System and Security >
Power Options.
(5) Wireless light
●
White: An integrated wireless device, such as a
WLAN device and/or a Bluetooth device, is on.
NOTE: Wireless devices are enabled at the
factory.
●
Amber: All wireless devices are off.
10 Chapter 2 External component identification ENWW

HP TOUCHSMART TM2 Specifications

General

Bus type	DMI
Stepping	K0
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
System bus rate	2.5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-300 Mobile Series
Processor socket	BGA 1288
Processor threads	4
Processor codename	Arrandale
Processing Die size	81 mm²
Processor frequency	1.33 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16
Thermal Design Power (TDP)	18 W
CPU multiplier (bus/core ratio)	10
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	382 M
Motherboard chipset	Intel® HM55 Express
Internal memory	3 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	320 GB
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD
Number of HDDs installed	1
Display diagonal	12.1 \
Touch technology	Multi-touch
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Ethernet interface type	Gigabit Ethernet
Operating temperature (T-T)	41 - 95 °F
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	166 MHz
On-board graphics card dynamic frequency (max)	500 MHz
Audio system	Dolby Advanced
Speakers manufacturer	Altec Lansing
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit LAN, WLAN
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Keyboard layout	-
Pointing device	Clickpad
Operating system installed	Windows 7 Home Premium
Form factor	Convertible (Swivel)
Product type	Hybrid (2-in-1)
Country of origin	China
Battery life (max)	- h
Number of battery cells	6
AC adapter power	65 W
Cable lock slot type	Kensington
Operating altitude	-15 - 3048 m
Non-operating altitude	-15 - 12192 m
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Processor code	SLBSL
Processor ARK ID	50028
Processor package size	BGA 34 x 28 mm
Graphics & IMC lithography	45 nm
Supported instruction sets	SSE4.1, SSE4.2

Weight and Dimensions

Depth	326 mm
Width	230 mm
Weight	1893 g
Height (rear)	30 mm
Height (front)	24.3 mm
