HP TOUCHSMART TM2 - Hdmi

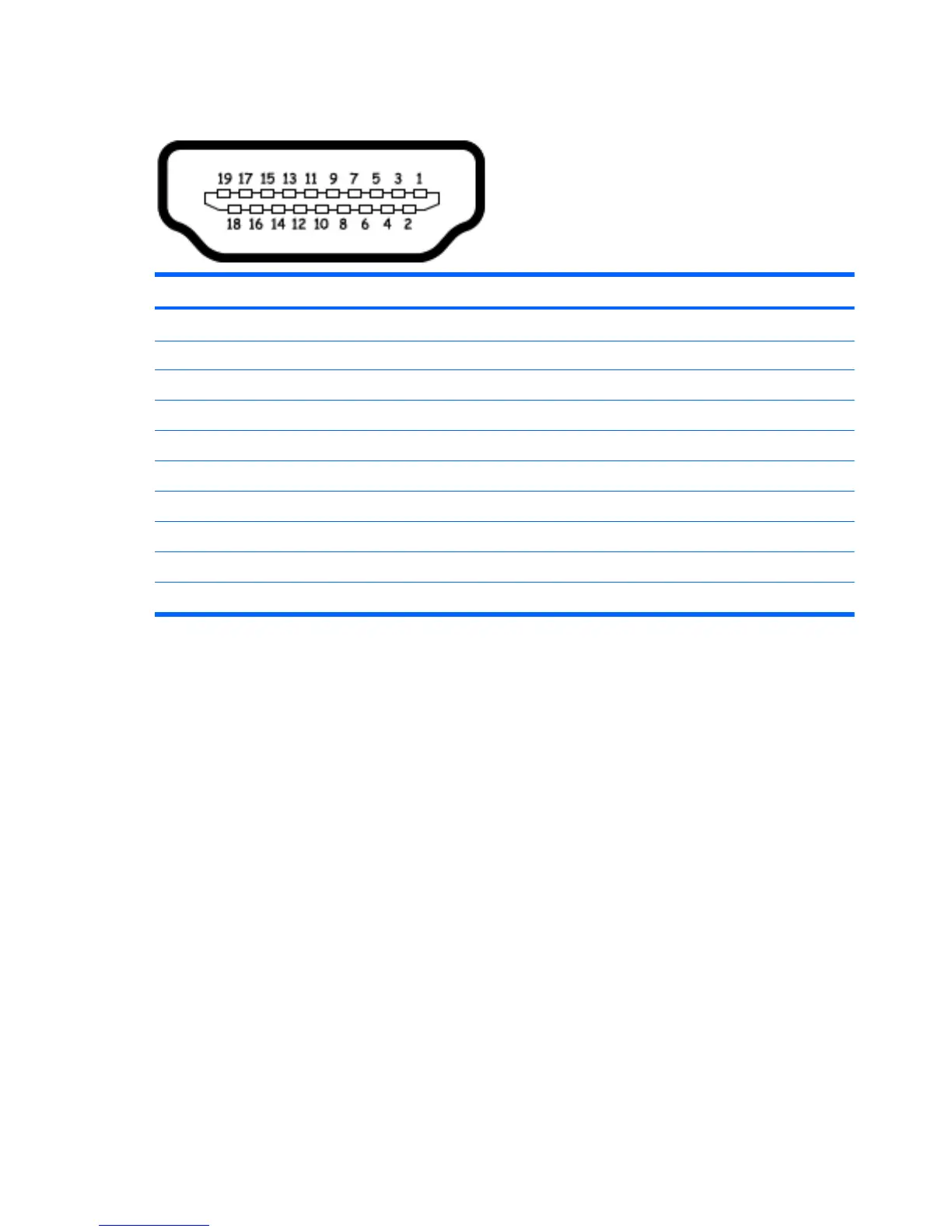

HDMI
Pin Signal Pin Signal
1 TMDS data 2+ 11 TMDS clock shield
2 TMDS data 2 shield 12 TMDS clock-
3 TMDS data 2- 13 CEC
4 TMDS data 1+ 14 No connect
5 TMDS data 1 shield 15 DDC clock
6 TMDS data 1- 16 DDC data
7 TMDS data 0+ 17 Ground
8 TMDS data 0 shield 18 +5V power
9 TMDS data 0- 19 Hot plug detect
10 TMDS clock+
88 Chapter 8 Connector pin assignments ENWW
