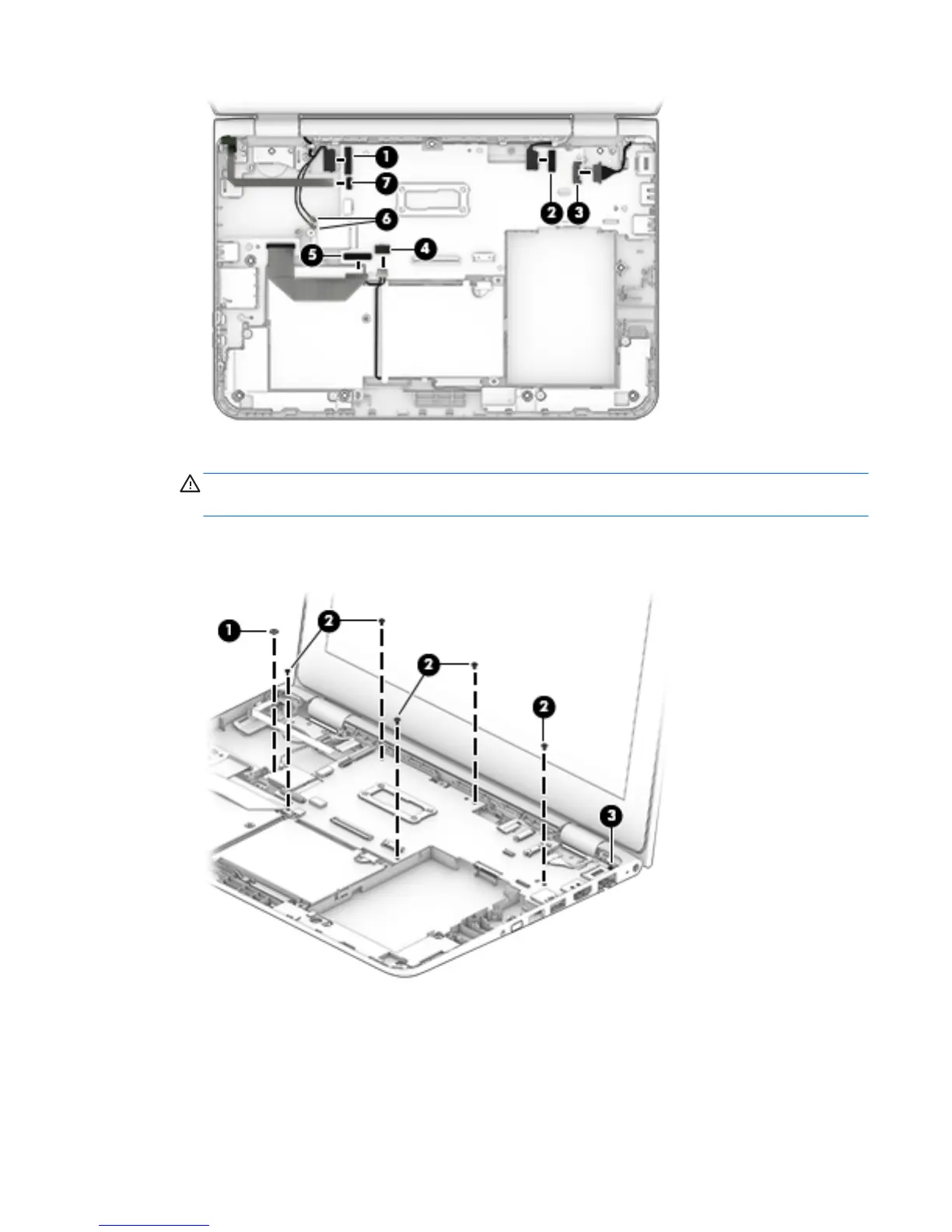

2. Remove the Phillips PM2.5×3.0 screw from the WLAN module (1).
CAUTION: To avoid damaging the WLAN module, do not remove the module from the system board
socket until AFTER you removing the system board from the computer.
3. Remove the ve Phillips PM2.5×4.0 screws (2) that secure the system board to the computer.
4. Loosen the captive screw in the upper right corner of the system board (3).
Component replacement procedures 45
