Display assembly
The display is only spared at the subcomponent level. The full hinge-up is not spared.
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the top cover (see Top cover on page 29).
5. Remove the system board (see System board on page 43).
To remove the display assembly:

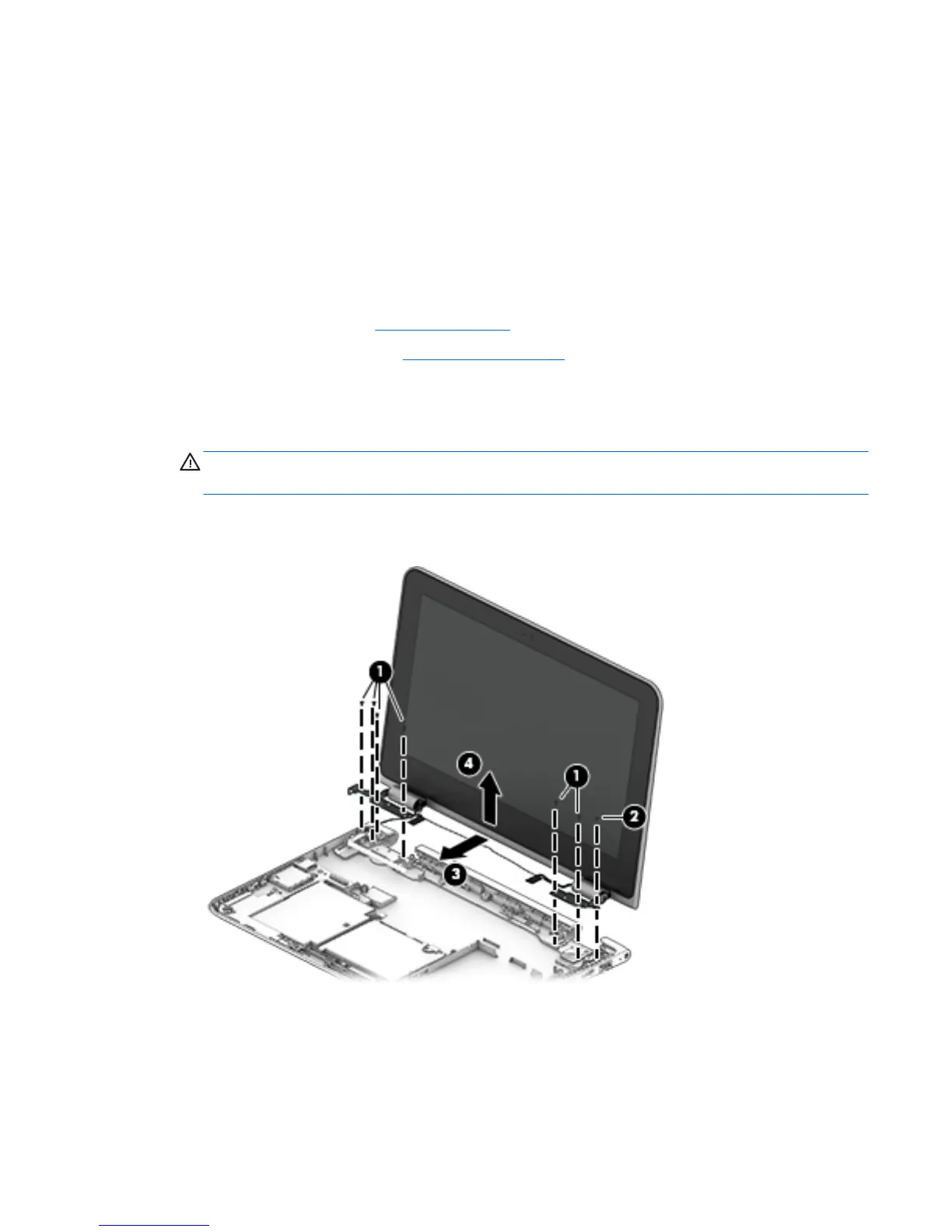

1. Remove the six Phillips PM2.5×4.0 screws (1) and the Phillips PM2.0×2.5 screw (2) that secures the
display assembly to the computer.
CAUTION: Support the display assembly when removing the screws. Failure to support the display
assembly can result in damage to the display assembly and other computer components.
2. Pull the display into the computer to remove hinges from computer (3).
3. Separate the display assembly from the computer (4).
If it is necessary to replace any of the display assembly subcomponents:
1. To remove the display enclosure:
Component replacement procedures 55
