Hard drive
NOTE: The Hard Drive Hardware Kit, spare part number 809537-001, includes the hard drive bracket and
hard drive connector cable.
Description Spare part number
1-TB, 5400-rpm, 7.0-mm 762990-005
500-GB, 5400-rpm, 7.0-mm 778186-005
500-GB, 5400-rpm, 8 GB hybrid SSD, 7.0-mm 732000-005
Hard Drive Hardware Kit (includes hard drive bracket and connector cable) 809537-001
Before removing the hard drive, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the top cover (see Top cover on page 29).
5. Disconnect the battery.
Remove the hard drive:

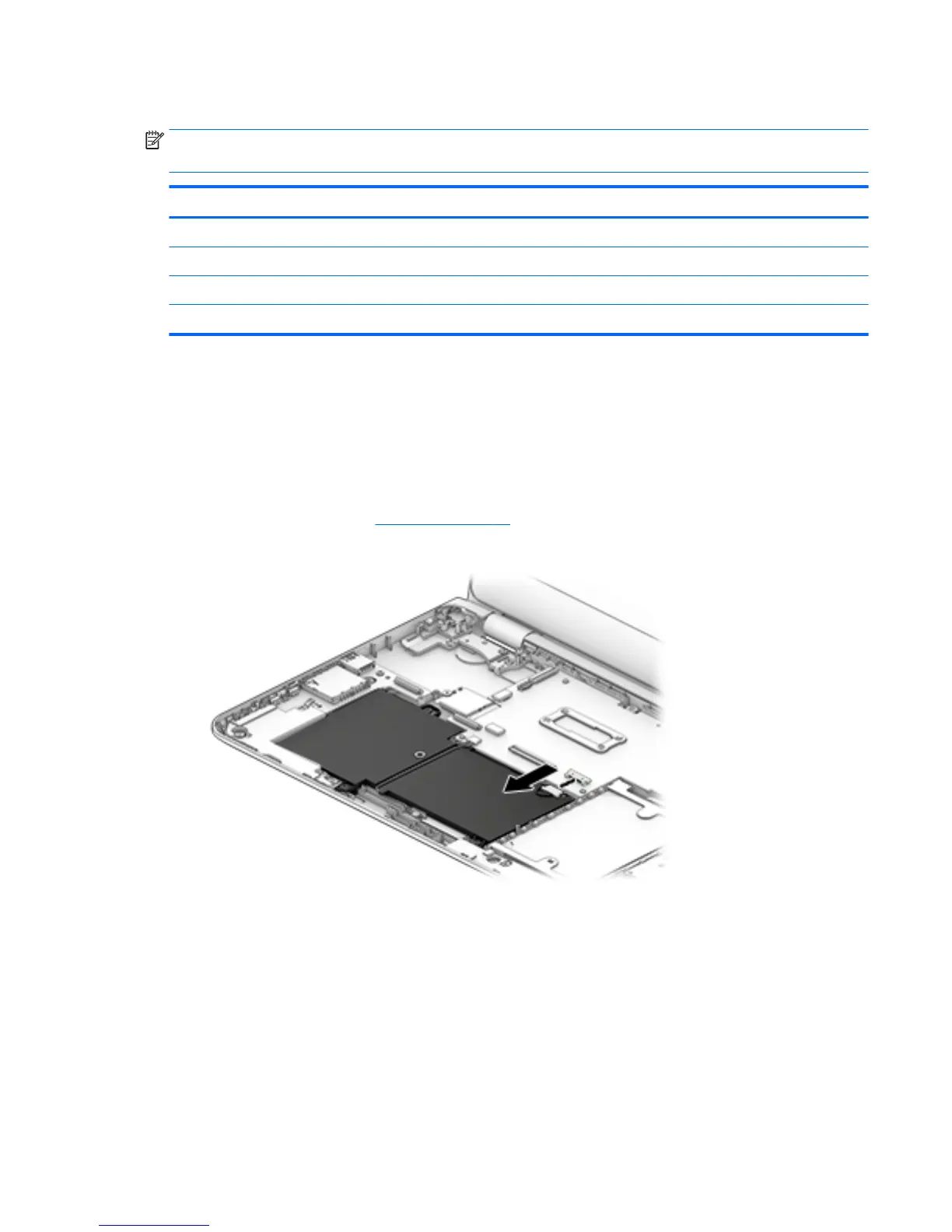

1. Disconnect the hard drive connector cable (1) from the system board.
Component replacement procedures 33
