HP Z620 Series User Manual

Z220 SFF Workstation rear panel

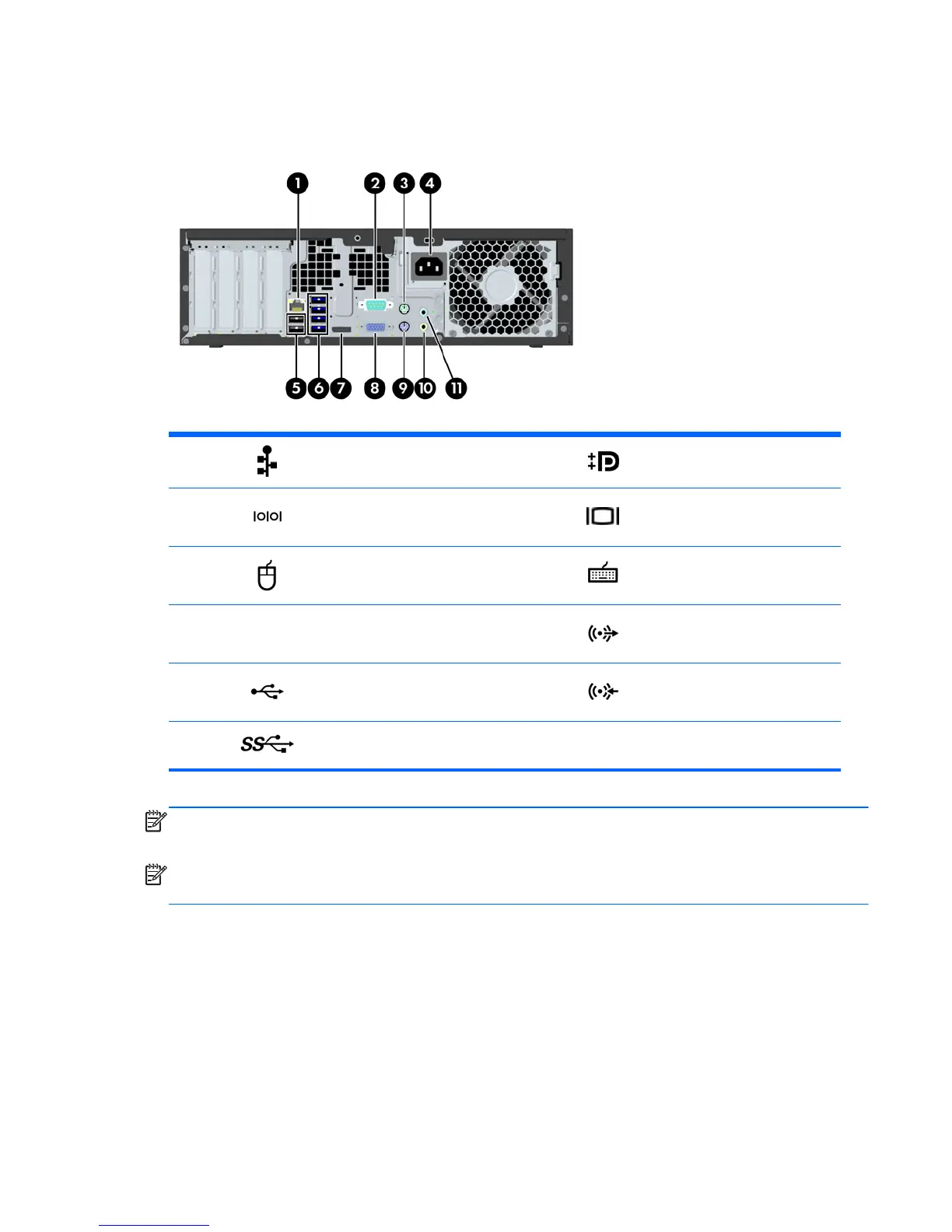

Figure 2-2 Rear panel components
Table 2-2 Component descriptions
1 RJ–45 network connector 7 DisplayPort (DP)
2
Serial port
8
VGA (monitor) (blue)
3
PS/2 mouse connector (green) 9
PS/2 keyboard connector
(purple)
4 Power cord connector 10
Audio line-out connector (green)
5
USB 2.0 ports (2) (back) 11 Audio line-in connector (blue)
6
USB 3.0 ports (4) (blue)
NOTE: The labels for the rear panel connectors use
industry-standard icons and colors.
NOTE:
The DP and VGA ports are not supported when the system is configured with Intel® Xeon E3-12x0 v2 processors. Also, if a discrete graphics
card is installed, these ports are disabled by default.
NOTE:
Simultaneous usage of integrated Intel HD graphics and discrete graphics cards (in order to drive more than two displays) can be enabled using
the Computer (F10) Setup Utility. However, HP recommends using only discrete graphics cards when attaching three or more displays.
HP Z220 SFF Workstation components
9

HP Z620 Series Specifications

General

Chipset	Intel C602
Memory	Up to 96GB DDR3 ECC
Graphics Options	NVIDIA Quadro or AMD FirePro
Power Supply	800W
Operating System	Windows 7, Windows 8, Linux
Dimensions	17.5 x 44.4 x 46.4 cm (6.9 x 17.5 x 18.3 in)
Networking	Integrated Gigabit Ethernet
Processor Options	Intel Xeon E5-2600 series (up to 8 cores)
Expansion Slots	7 slots (PCIe x16, PCIe x8, PCIe x4, PCI)
