HP Z620 Series User Manual

HP Z420 Workstation rear panel

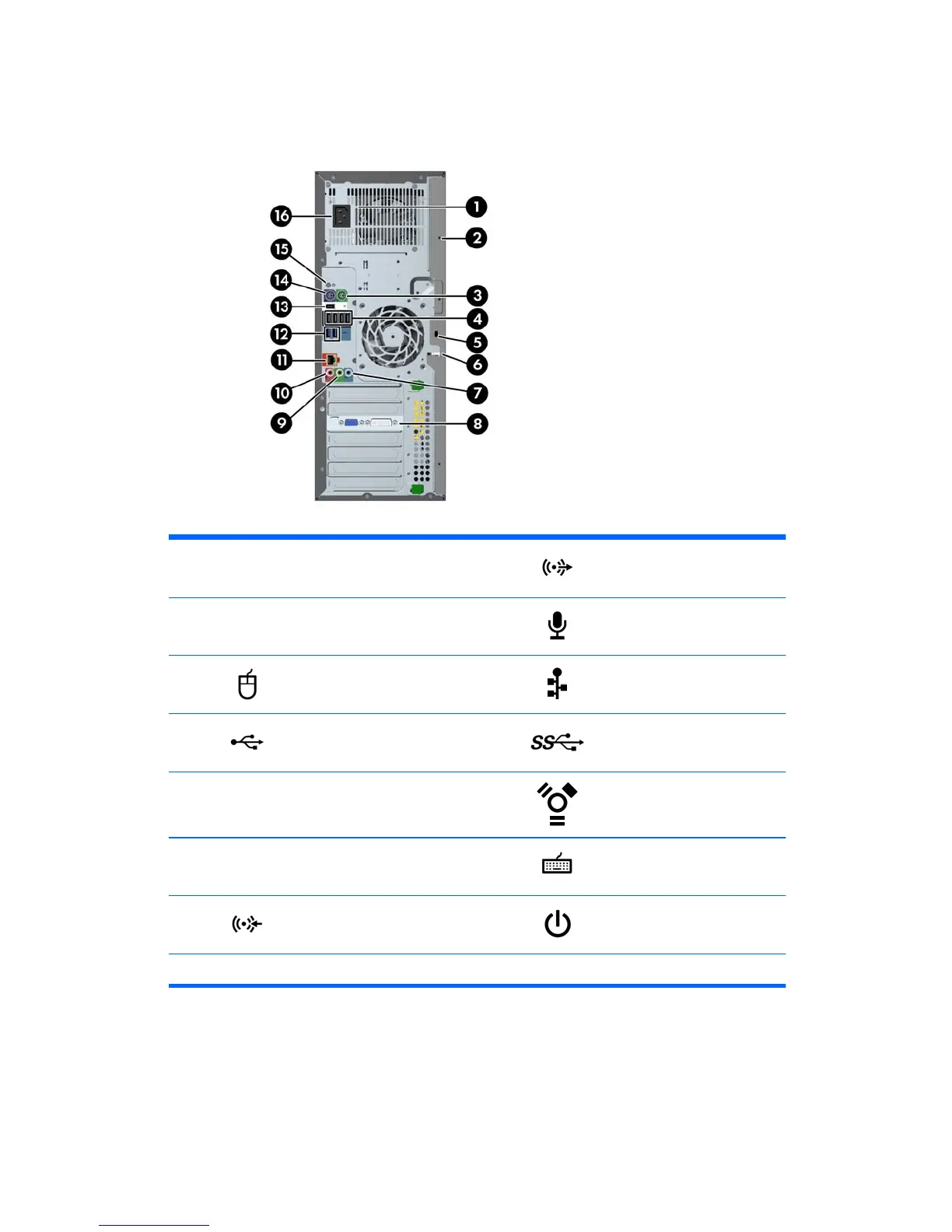

Figure 2-6 Rear panel components
Table 2-6 Component descriptions
1
Power supply Built-In Self Test
(BIST) LED
9
Audio line-out connector (green)
2 Universal chassis clamp opening 10
Microphone connector (pink)
3
PS/2 mouse connector (green) 11
AMT-enabled RJ-45 network
connector (orange)
4
USB 2.0 ports (4, black) 12 USB 3.0 ports (2, blue)
5 Security slot 13
IEEE-1394a FireWire connector
(white)
6 Padlock loop 14
PS/2 keyboard connector
(purple)
7
Audio line-in connector (blue) 15 Rear power button
8 Graphics card connector 16 Power cord connector
HP Z420 Workstation components
13

HP Z620 Series Specifications

General

Chipset	Intel C602
Memory	Up to 96GB DDR3 ECC
Graphics Options	NVIDIA Quadro or AMD FirePro
Power Supply	800W
Operating System	Windows 7, Windows 8, Linux
Dimensions	17.5 x 44.4 x 46.4 cm (6.9 x 17.5 x 18.3 in)
Networking	Integrated Gigabit Ethernet
Processor Options	Intel Xeon E5-2600 series (up to 8 cores)
Expansion Slots	7 slots (PCIe x16, PCIe x8, PCIe x4, PCI)
