HP Z620 Series User Manual

HP Z820 Workstation rear panel

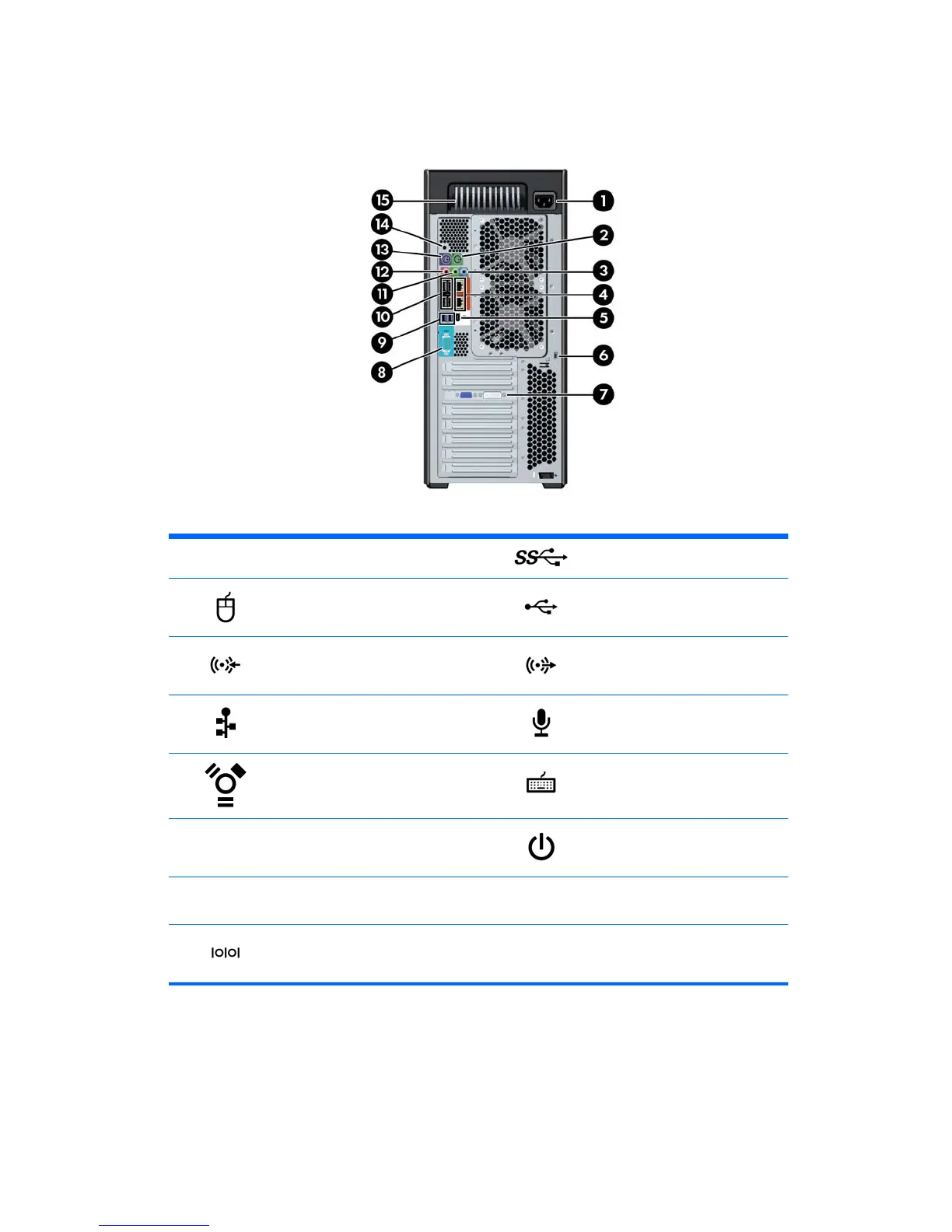

Figure 2-10 Rear panel components
Table 2-10 Component descriptions
1 Power cord connector 9 USB 3.0 ports (2, blue)
2
PS/2 mouse connector (green) 10 USB 2.0 ports (4, black)
3
Audio line-in connector (blue) 11 Audio line-out connector (green)
4
RJ-45 network connectors (2, orange)
Top connector is AMT enabled
12 Microphone connector (pink)
5
IEEE-1394a FireWire connector (white) 13 PS/2 keyboard connector (purple)
6 Security slot 14
Rear power button
7 Graphics card connector(s) 15
Power supply Built-In Self Test (BIST)
LED
8
Serial connector (teal blue)
HP Z820 Workstation components
17

HP Z620 Series Specifications

General

Chipset	Intel C602
Memory	Up to 96GB DDR3 ECC
Graphics Options	NVIDIA Quadro or AMD FirePro
Power Supply	800W
Operating System	Windows 7, Windows 8, Linux
Dimensions	17.5 x 44.4 x 46.4 cm (6.9 x 17.5 x 18.3 in)
Networking	Integrated Gigabit Ethernet
Processor Options	Intel Xeon E5-2600 series (up to 8 cores)
Expansion Slots	7 slots (PCIe x16, PCIe x8, PCIe x4, PCI)
