HP Z620 Series User Manual

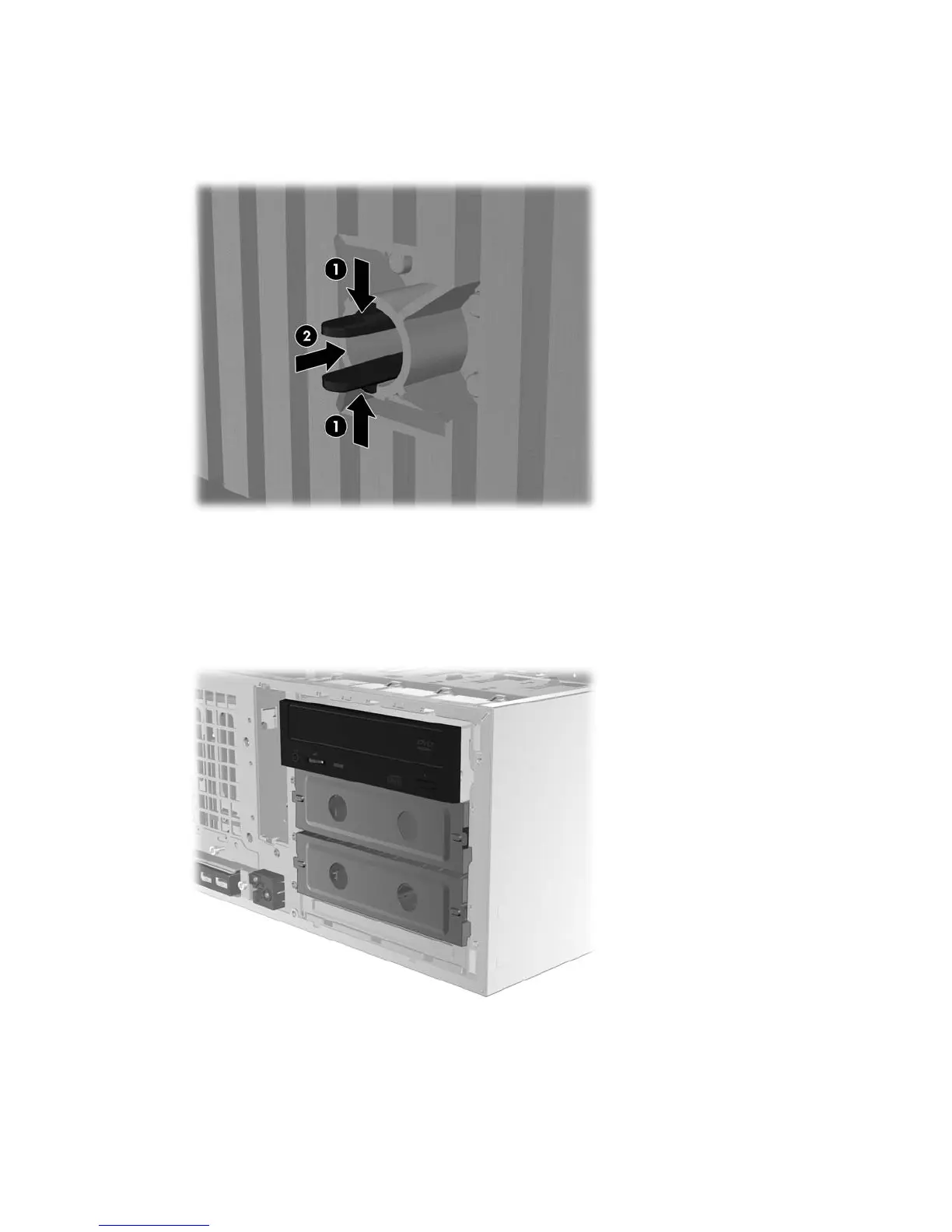

6. On the back of the front bezel, squeeze the HP logo mounting tabs (1) and press the logo outward
(2).
Figure 3-8 Rotating the HP logo
Rotate the HP logo 90 degrees counterclockwise, then release the logo and press it back into
place.
7. Remove the EMI filler panels and optical disk drive from the chassis.
8. Rotate the EMI filler panels and optical drive 90 degrees, then reinstall them.
Figure 3-9 Reinstalling the optical drive
9. Replace the front bezel and the side access panel.
30 Chapter 3 Setting up the workstation

HP Z620 Series Specifications

General

Chipset	Intel C602
Memory	Up to 96GB DDR3 ECC
Graphics Options	NVIDIA Quadro or AMD FirePro
Power Supply	800W
Operating System	Windows 7, Windows 8, Linux
Dimensions	17.5 x 44.4 x 46.4 cm (6.9 x 17.5 x 18.3 in)
Networking	Integrated Gigabit Ethernet
Processor Options	Intel Xeon E5-2600 series (up to 8 cores)
Expansion Slots	7 slots (PCIe x16, PCIe x8, PCIe x4, PCI)
