HP Z800 Hardware Setup Guide

Connections Overview

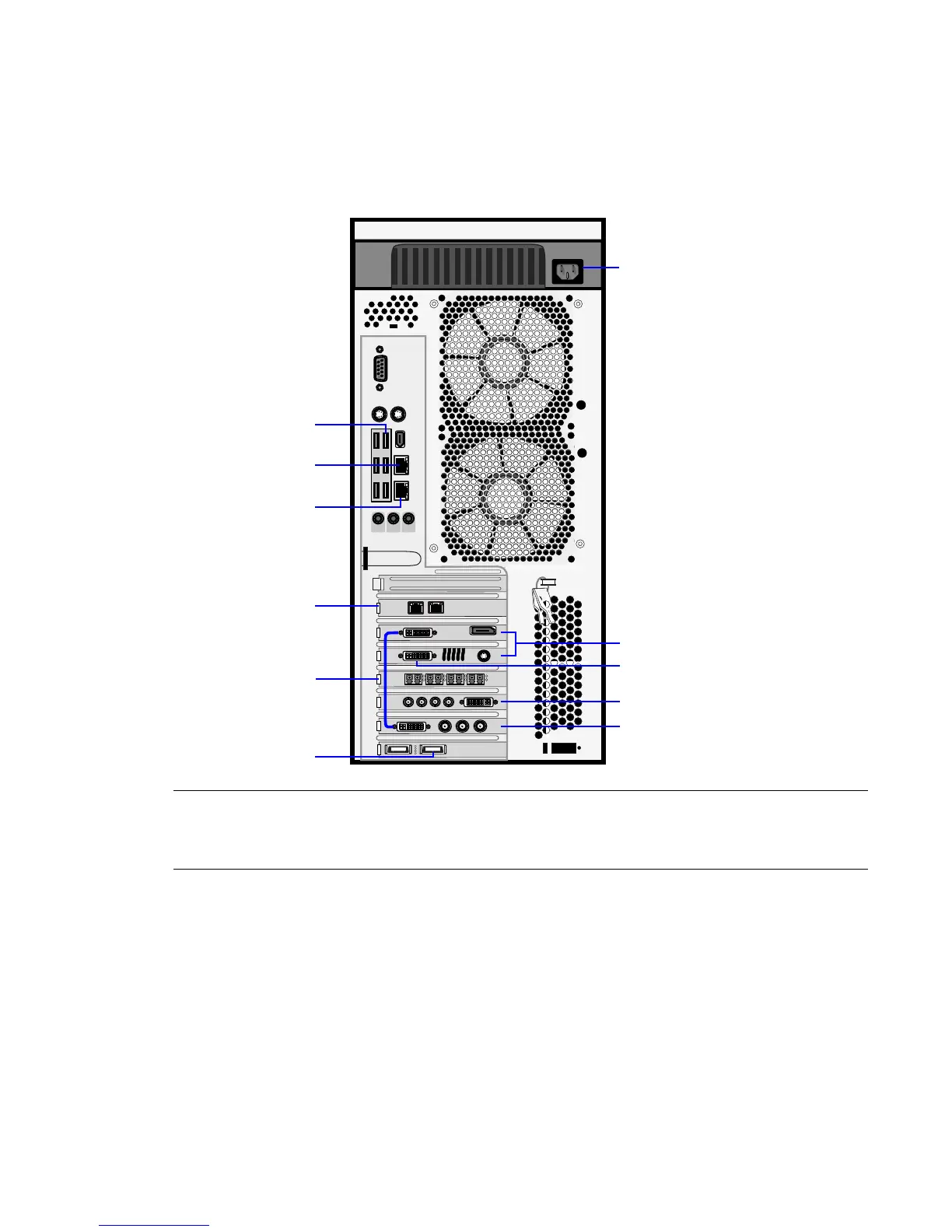

The following diagram provides an overview of the adapter card positions and general connection
requirements for the HP Z800 workstation.
HP Z800 Workstation
To keyboard, mouse,
tablet, monitor calibrator
To house network
GigE Adapter
to SAN and/or private
network, Incinerator node
Atto Celerity FC84-EN
to direct attached storage
Nvidia Quadro FX 5800
AJA OEM-2K
to video/audio i/o, VTR
Nvidia Quadro SDI Output
to reference monitor, Real-
Time Deliverables VTR,
sync generator
Power
Qlogic DDR InfinBand
to Wire network, Lustre
Media Server (optional)
To graphics monitor
To Lustre control surface
NOTE This diagram illustrates a 2-port GigE adapter in slot 1. You also have the option of using a 10-GigE adapter
or a second ATTO Fibre Channel adapter in slot 1. On the HP Z800 workstation, the slots are numbered 1–7 from
top to bottom. Note also that a number of HP Z800 workstations shipped with a 4-port GigE adapter instead of
the 2-port adapter.
Connecting the Graphics Monitor
The graphics monitor connects to the Nvidia
®
Quadro
®
FX 5800 graphics adapter card. This is also an
opportunity to connect the graphics adapter to its add-on card, the Nvidia Quadro SDI Output adapter.
To connect the monitor:
1 Use the short DVI cable (included in TP.FX5800DI) to connect port 1 of the Nvidia Quadro FX 5800
graphics adapter card to the DVI port of the Nvidia Quadro SDI Output adapter (the add-on card).
12 | Chapter 3 Connecting Peripherals

HP Z800 Specifications

General

Processor cache	8 MB
Processor model	E5560
Processor frequency	2.8 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor front side bus	1333 MHz
Number of processors installed	2
Audio system	Integrated High Definition Realtek ALC262 Audio, optional Creative X-Fi Titanium PCIe Audio Card, optional HP Thin USB Powered Speakers
Product type	Workstation
Motherboard chipset	Intel® 5520
ECC	Yes
Maximum internal memory	192 GB
HDD speed	15000 RPM
HDD capacity	446 GB
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD Super Multi
Card reader integrated	No
I/O ports	Front: 3 USB 2.0, 1 IEEE 1394a, 1 microphone in, 1 headphone out; Rear: 6 USB 2.0, 1 IEEE 1394a, 1 audio in, 1 audio out, 1 microphone in, 2 PS/2, 2 RJ-45 to integrated Gigabit LAN, 1 serial; Internal: 3 USB 2.0
Headphone outputs	1
USB 2.0 ports quantity	9
Parallel ports quantity	0
Power supply	1110 W
Power consumption (typical)	240 W
Non-operating altitude	9100 m
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	8 - 90 %
Operating relative humidity (H-H)	8 - 85 %
Display	HP LP1965 19-inch LCD Monitor, HP LP2065 20-inch LCD Monitor, HP LP2275w 22-inch Widescreen LCD Monitor, HP LP2475w 24-inch Widescreen LCD Monitor, HP DreamColor LP2480zx Professional Display (24-inch widescreen), HP LP3065 30-inch Widescreen LCD Monitor (all sold separately)
Drive bays	3 external 5.25\
Graphics card	-
Keyboard type	HP PS/2 Standard Keyboard
Expansion slots	1 PCI, 1 PCI Express Gen1 (x8 mechanically, x4 electrically), 1 PCI Express Gen2 (x8 mechanically, x4 electrically), 2 PCI Express Gen2 (x16 mechanically, x8 electrically), 2 PCI Express Gen2 x16
Pointing device	HP USB Laser Scroll Mouse
Power requirements	1110 watts wide-ranging, active Power Factor Correction, direct connection Power Supplies
Storage drive type	300 GB 15000 rpm SAS 146 GB 15000 rpm SAS SAS 146 GB + 300 GB
HDD controller type	SATA (10000 rpm) SATA (7200 rpm) SAS (15000 rpm)
Video card features	No integrated Graphic Card
Maximum HDD capacity	450 GB
Storage drive controller	Integrated 6 channel SATA 3 Gb/s controller with RAID (0, 1, 5 or 10) capability, integrated 8 channel SAS controller with RAID (0, 1 or 10) capability, optional LSI 8888 ELP 8-port SAS HW with RAID (0, 1, 5 or 10) capability
Minimum storage drive space	146 GB
Operating system installed	Windows Vista Business
Compatible operating systems	HP Installer Kit for Linux
Chassis type	Mini Tower
Country of origin	China

Weight and Dimensions

Depth	526.5 mm
Width	203.5 mm
Height	445.1 mm
Weight	19500 g
