XR 6412 Wiring Diagrams
The following diagrams illustrate 2-loop and 4-loops connections for XR 6412 series storage assemblies.
NOTE A XR 6412 RAID enclosure supports a maximum of seven XE expansion enclosures.
Cabling for additional enclosures
XE (EBOD) Expansion Enclosure
0
1
0
ID
0
1
0
ID
XR RAID Enclosure
0
!
0
!
FACTORY
USE ONLY
FACTORY
USE ONLY
XE (EBOD) Expansion Enclosure
0
1
0
ID
0
1
0
ID
XE (EBOD) Expansion Enclosure
0
1
0
ID
0
1
0
ID
XE (EBOD) Expansion Enclosure
0
1
0
ID
0
1
0
ID
To FC adapter on workstation / LMS (port 1)
To FC adapter (port 2)

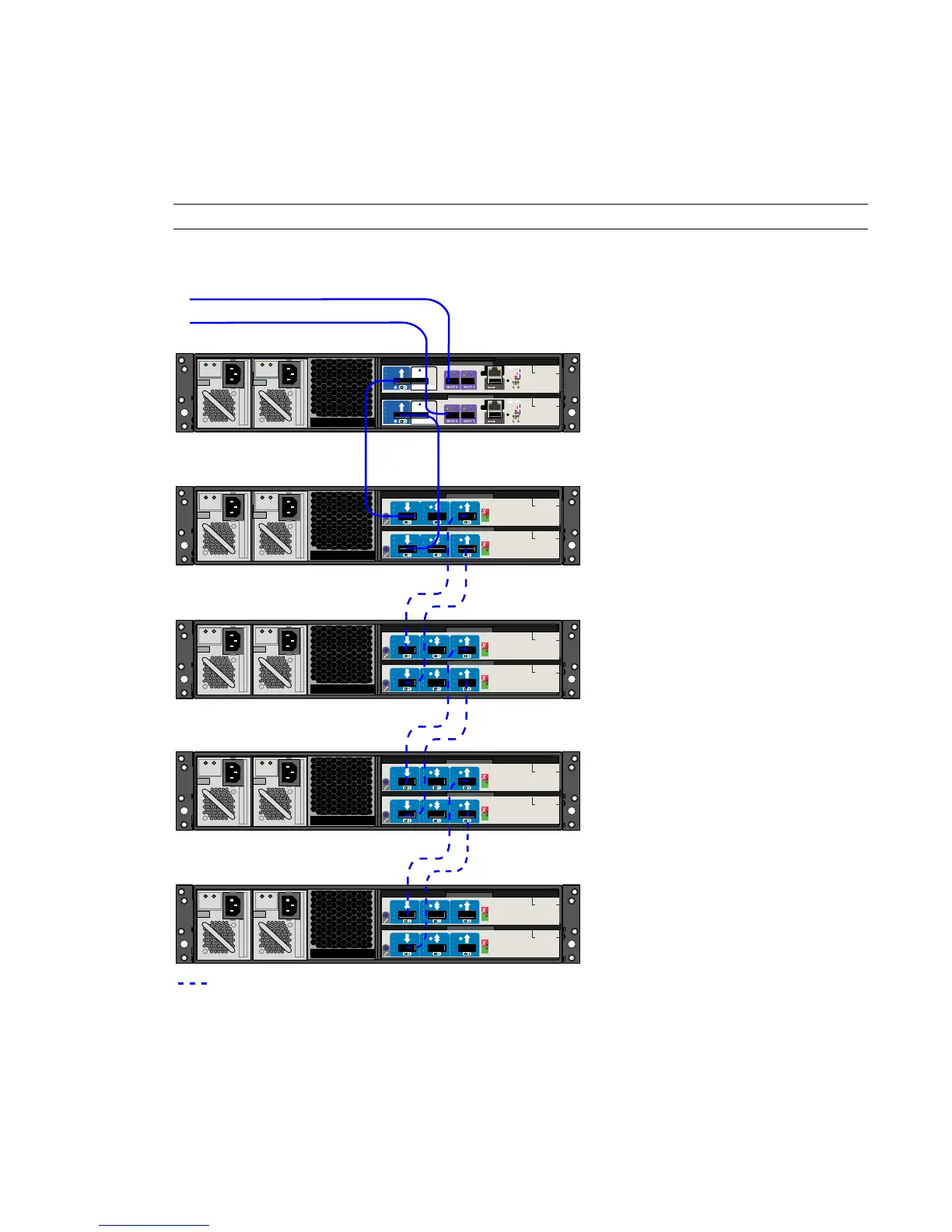

Single XR 6412 RAID enclosure, 2 loops
34 | Chapter 6 Connecting Storage
