HP Z800 Hardware Setup Guide

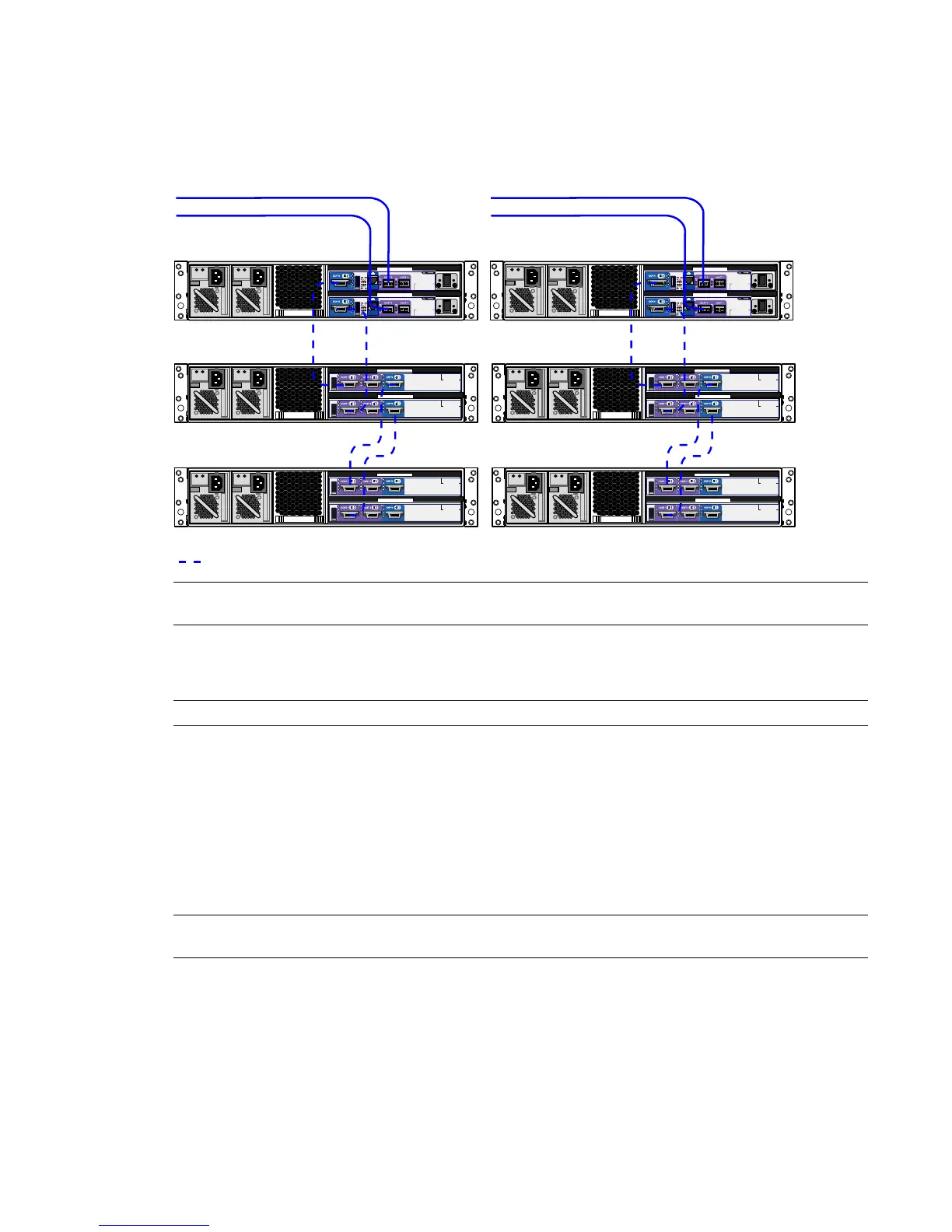

XR RAID Enclosure XR RAID Enclosure
XE (EBOD) Expansion Enclosure XE (EBOD) Expansion Enclosure
XE (EBOD) Expansion EnclosureXE (EBOD) Expansion Enclosure
Cabling for additional enclosures
To FC adapter on workstation / LMS (port 1)
To FC adapter (port 2)
To FC adapter on workstation / LMS (port 0)
To FC adapter (port 3)
First storage assembly Second storage assembly
Two XR 5402 / 5412 RAID enclosures, 4 loops
NOTE In a configuration with two XR RAID enclosures, the number of XE extension enclosures per XR RAID
enclosure must be the same. The total number of enclosures in the storage assembly must be an even number.
Connecting Archiving Storage
NOTE This section does not apply to Autodesk Lustre.
Visual Effects and Finishing applications support archiving to USB 2.0, FireWire
®
(IEEE 1394) and fibre
channel devices. This includes filesystems, VTRs and tape drives. This section discusses the requirements for
filesystem and tape drive devices. For information on connecting a VTR, see Connecting Video Components.
Filesystem Devices
USB 2.0 and FireWire (IEEE 1394) attached devices must be formatted with one of the following filesystems:
XFS, ext2, ext3, or HFS (Mac
®
). NTFS is not supported.
NOTE Care must be taken to ensure that the filesystems used to store archives are reliable, stable and properly
backed up so as to protect the archive integrity. This functionality is not provided by the application.
SCSI Tape Drive Devices
SCSI tape drives can be connected to a fibre channel port of the workstation by way of a fibre-channel-to-SCSI
bridge, such as the Atto FibreBridge 2390D. The tape drive device must meet two criteria. First, the device’s
Connecting Archiving Storage | 37

HP Z800 Specifications

General

Processor cache	8 MB
Processor model	E5560
Processor frequency	2.8 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor front side bus	1333 MHz
Number of processors installed	2
Audio system	Integrated High Definition Realtek ALC262 Audio, optional Creative X-Fi Titanium PCIe Audio Card, optional HP Thin USB Powered Speakers
Product type	Workstation
Motherboard chipset	Intel® 5520
ECC	Yes
Maximum internal memory	192 GB
HDD speed	15000 RPM
HDD capacity	446 GB
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD Super Multi
Card reader integrated	No
I/O ports	Front: 3 USB 2.0, 1 IEEE 1394a, 1 microphone in, 1 headphone out; Rear: 6 USB 2.0, 1 IEEE 1394a, 1 audio in, 1 audio out, 1 microphone in, 2 PS/2, 2 RJ-45 to integrated Gigabit LAN, 1 serial; Internal: 3 USB 2.0
Headphone outputs	1
USB 2.0 ports quantity	9
Parallel ports quantity	0
Power supply	1110 W
Power consumption (typical)	240 W
Non-operating altitude	9100 m
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	8 - 90 %
Operating relative humidity (H-H)	8 - 85 %
Display	HP LP1965 19-inch LCD Monitor, HP LP2065 20-inch LCD Monitor, HP LP2275w 22-inch Widescreen LCD Monitor, HP LP2475w 24-inch Widescreen LCD Monitor, HP DreamColor LP2480zx Professional Display (24-inch widescreen), HP LP3065 30-inch Widescreen LCD Monitor (all sold separately)
Drive bays	3 external 5.25\
Graphics card	-
Keyboard type	HP PS/2 Standard Keyboard
Expansion slots	1 PCI, 1 PCI Express Gen1 (x8 mechanically, x4 electrically), 1 PCI Express Gen2 (x8 mechanically, x4 electrically), 2 PCI Express Gen2 (x16 mechanically, x8 electrically), 2 PCI Express Gen2 x16
Pointing device	HP USB Laser Scroll Mouse
Power requirements	1110 watts wide-ranging, active Power Factor Correction, direct connection Power Supplies
Storage drive type	300 GB 15000 rpm SAS 146 GB 15000 rpm SAS SAS 146 GB + 300 GB
HDD controller type	SATA (10000 rpm) SATA (7200 rpm) SAS (15000 rpm)
Video card features	No integrated Graphic Card
Maximum HDD capacity	450 GB
Storage drive controller	Integrated 6 channel SATA 3 Gb/s controller with RAID (0, 1, 5 or 10) capability, integrated 8 channel SAS controller with RAID (0, 1 or 10) capability, optional LSI 8888 ELP 8-port SAS HW with RAID (0, 1, 5 or 10) capability
Minimum storage drive space	146 GB
Operating system installed	Windows Vista Business
Compatible operating systems	HP Installer Kit for Linux
Chassis type	Mini Tower
Country of origin	China

Weight and Dimensions

Depth	526.5 mm
Width	203.5 mm
Height	445.1 mm
Weight	19500 g
