HP Z800 Hardware Setup Guide

1 3 4 5 6 7 8
PWR
NETGEAR
2
Autodesk Control Surface
5V DC 4A Ethernet
Autodesk
Tablet
S
ystem
Power
Link
Activit y
-
+
Network Switch
To USB extender
Ports 3 and 4 to
additional panels
To port 1 on USB Extender
HP Z800 Workstation
NOTE The illustration shows the central panel only (the Colour Grading panel). This panel is easily identified,
since it has both an Ethernet network port and a USB connector. It is also the panel with the built-in tablet.

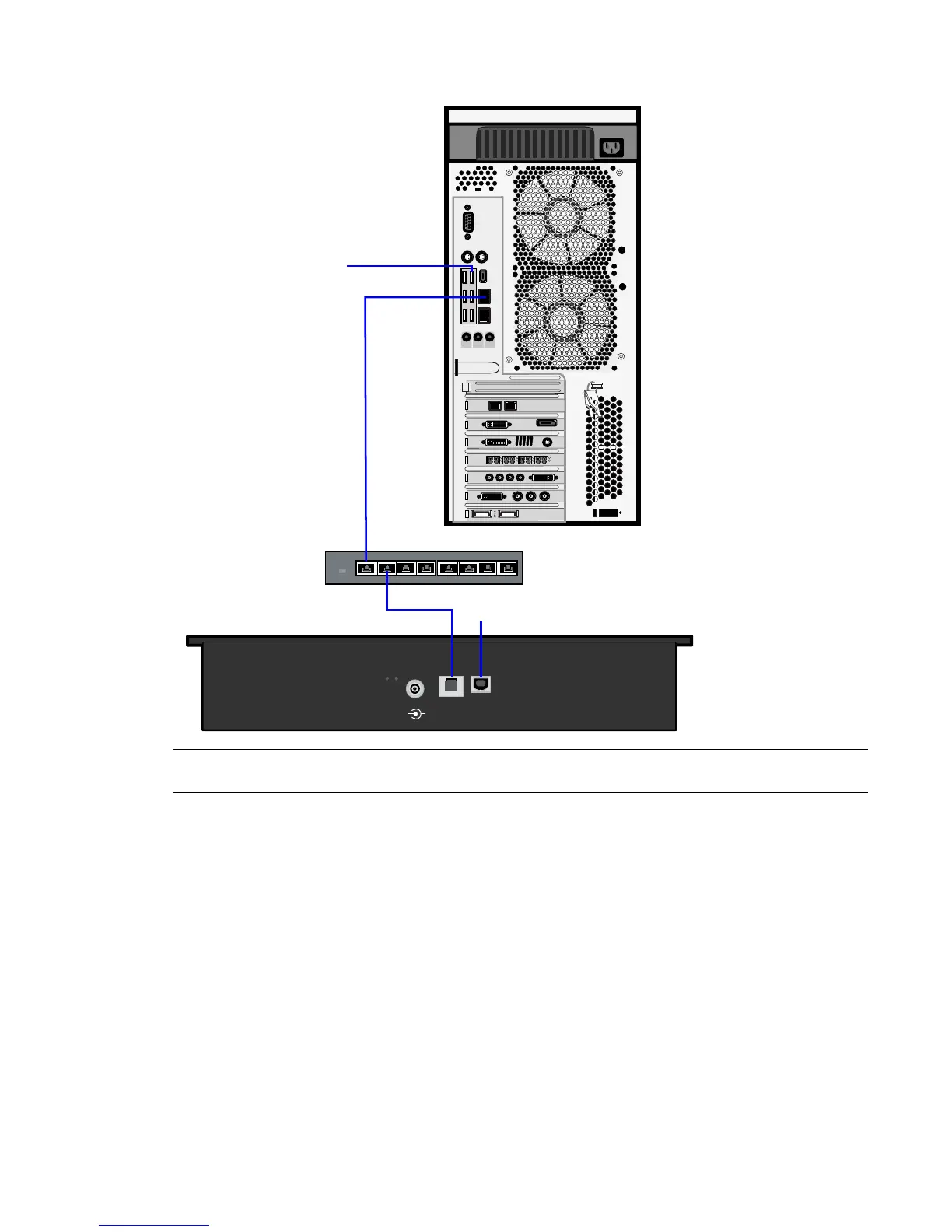

To connect the Autodesk Control Surface:
1 Connect each panel to a power supply using the AC power adapter cables.
2 Use network cables to connect each panel to the available ports in the network switch.
3 Additionally, connect the Colour Grading panel to the remote unit of the USB extender kit.
4 Use a network cable to connect an available port on the Netgear network switch to the workstation’s
on-board GigE port 1, as illustrated.
Connecting the Slave Renderer to a Lustre Workstation
The Lustre Slave Renderer is a single render node that provides automatic background rendering on a
shot-by-shot basis. It is available for the Lustre Master Station, the Station, and the HD Station.
16 | Chapter 3 Connecting Peripherals

HP Z800 Specifications

General

Processor cache	8 MB
Processor model	E5560
Processor frequency	2.8 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor front side bus	1333 MHz
Number of processors installed	2
Audio system	Integrated High Definition Realtek ALC262 Audio, optional Creative X-Fi Titanium PCIe Audio Card, optional HP Thin USB Powered Speakers
Product type	Workstation
Motherboard chipset	Intel® 5520
ECC	Yes
Maximum internal memory	192 GB
HDD speed	15000 RPM
HDD capacity	446 GB
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD Super Multi
Card reader integrated	No
I/O ports	Front: 3 USB 2.0, 1 IEEE 1394a, 1 microphone in, 1 headphone out; Rear: 6 USB 2.0, 1 IEEE 1394a, 1 audio in, 1 audio out, 1 microphone in, 2 PS/2, 2 RJ-45 to integrated Gigabit LAN, 1 serial; Internal: 3 USB 2.0
Headphone outputs	1
USB 2.0 ports quantity	9
Parallel ports quantity	0
Power supply	1110 W
Power consumption (typical)	240 W
Non-operating altitude	9100 m
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	8 - 90 %
Operating relative humidity (H-H)	8 - 85 %
Display	HP LP1965 19-inch LCD Monitor, HP LP2065 20-inch LCD Monitor, HP LP2275w 22-inch Widescreen LCD Monitor, HP LP2475w 24-inch Widescreen LCD Monitor, HP DreamColor LP2480zx Professional Display (24-inch widescreen), HP LP3065 30-inch Widescreen LCD Monitor (all sold separately)
Drive bays	3 external 5.25\
Graphics card	-
Keyboard type	HP PS/2 Standard Keyboard
Expansion slots	1 PCI, 1 PCI Express Gen1 (x8 mechanically, x4 electrically), 1 PCI Express Gen2 (x8 mechanically, x4 electrically), 2 PCI Express Gen2 (x16 mechanically, x8 electrically), 2 PCI Express Gen2 x16
Pointing device	HP USB Laser Scroll Mouse
Power requirements	1110 watts wide-ranging, active Power Factor Correction, direct connection Power Supplies
Storage drive type	300 GB 15000 rpm SAS 146 GB 15000 rpm SAS SAS 146 GB + 300 GB
HDD controller type	SATA (10000 rpm) SATA (7200 rpm) SAS (15000 rpm)
Video card features	No integrated Graphic Card
Maximum HDD capacity	450 GB
Storage drive controller	Integrated 6 channel SATA 3 Gb/s controller with RAID (0, 1, 5 or 10) capability, integrated 8 channel SAS controller with RAID (0, 1 or 10) capability, optional LSI 8888 ELP 8-port SAS HW with RAID (0, 1, 5 or 10) capability
Minimum storage drive space	146 GB
Operating system installed	Windows Vista Business
Compatible operating systems	HP Installer Kit for Linux
Chassis type	Mini Tower
Country of origin	China

Weight and Dimensions

Depth	526.5 mm
Width	203.5 mm
Height	445.1 mm
Weight	19500 g
