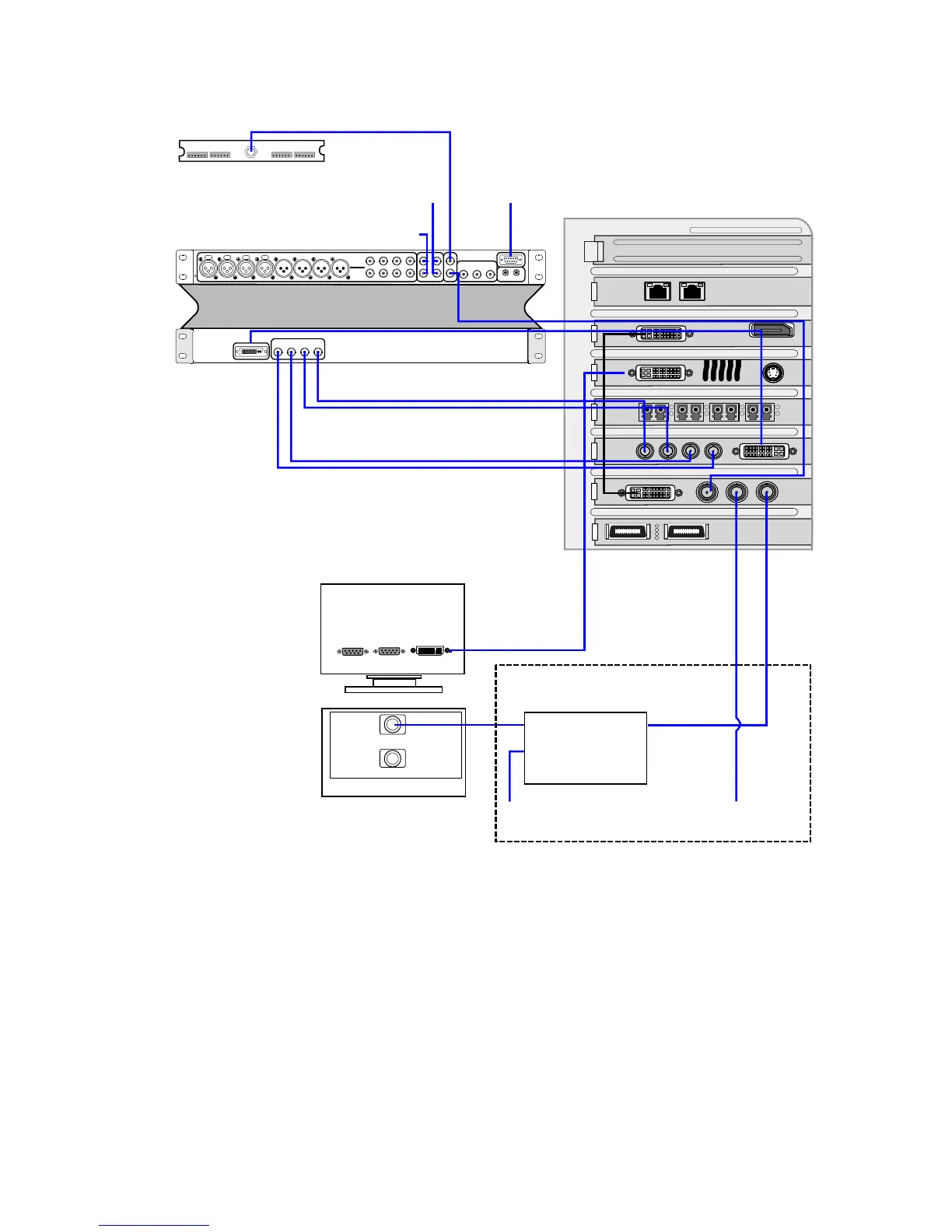

HP Z800 Hardware Setup Guide

Ref Loop
RS-422
SDI 1/A SDI 2/B
In
Out
Ch.1(L) Ch.2(R)
Y/G/CVBS Pb/B/Y Pr/R/C
Video MonitorOut
Ch. 1/2 Ch. 3/4
In
Out
Ch. 5/6
In
Out
In
Out
Ch. 1/2 Out Ch. 3/4 Out Ch. 5/6 Out Ch. 7/8 OutCh. 1/2 In
Ch. 3/4 In
Ch. 5/6 In
Ch. 7/8 In
AES/EBU
Audio
Ch. 7/8
AJA
www.aja.com 102053
K3-Box
J1 In 1/A In 2/B Out 1/A
Connect to Host
Out 2/B
AJA BOB (Front)
AJA BOB (Back)
HD-SDI Out 1/A to 4:2:2 VTR (or 4:4:4 dual link)
HD-SDI In 2/B to 4:4:4 VTR (dual link 0:2:2)
HD-SDI In 1/A to 4:2:2 VTR (or 4:4:4 dual link)
HD-SDI Out 2/B to 4:4:4 VTR (dual link 0:2:2)
VGA
DVIVGA
(not included)
SD/HD SDI IN 2
Graphics Monitor
SD/HD/SDI Monitor
SD/HD SDI IN 1
AJA HD5DA
OUT 1 INPUT
OUT 2
For Real-Time Deliverables
To SD/HD SDI
Link A onVTR
"Key" to SD/HD SDI Link B,
on VTR (for dual link)
cnyS neG
cnyS neG
from house sync generation
(Trilevel/NTSC/PAL not included)
SD/HD SDI
In / Out
SD/HD SDI In / Out
to RS-422 VTR
machine control
HP Z800 Video I/O
Sync loop out to
NVIDIA Input
Control cable and power
"Fill" to Input
Setting Up VTR Emulation
You can configure your Autodesk Visual Effects, Finishing, and Colour Grading application to emulate a
VTR for both input and output in real time. You control the emulator from the application or device that
sees the Autodesk Visual Effects, Finishing, and Colour Grading application as a VTR.
The following procedure describes how to configure the hardware for VTR emulation. Consult the “VTR
Emulation” chapter in your application User Guide for more information.
Setting Up VTR Emulation | 21

HP Z800 Specifications

General

Processor cache	8 MB
Processor model	E5560
Processor frequency	2.8 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor front side bus	1333 MHz
Number of processors installed	2
Audio system	Integrated High Definition Realtek ALC262 Audio, optional Creative X-Fi Titanium PCIe Audio Card, optional HP Thin USB Powered Speakers
Product type	Workstation
Motherboard chipset	Intel® 5520
ECC	Yes
Maximum internal memory	192 GB
HDD speed	15000 RPM
HDD capacity	446 GB
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD Super Multi
Card reader integrated	No
I/O ports	Front: 3 USB 2.0, 1 IEEE 1394a, 1 microphone in, 1 headphone out; Rear: 6 USB 2.0, 1 IEEE 1394a, 1 audio in, 1 audio out, 1 microphone in, 2 PS/2, 2 RJ-45 to integrated Gigabit LAN, 1 serial; Internal: 3 USB 2.0
Headphone outputs	1
USB 2.0 ports quantity	9
Parallel ports quantity	0
Power supply	1110 W
Power consumption (typical)	240 W
Non-operating altitude	9100 m
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	8 - 90 %
Operating relative humidity (H-H)	8 - 85 %
Display	HP LP1965 19-inch LCD Monitor, HP LP2065 20-inch LCD Monitor, HP LP2275w 22-inch Widescreen LCD Monitor, HP LP2475w 24-inch Widescreen LCD Monitor, HP DreamColor LP2480zx Professional Display (24-inch widescreen), HP LP3065 30-inch Widescreen LCD Monitor (all sold separately)
Drive bays	3 external 5.25\
Graphics card	-
Keyboard type	HP PS/2 Standard Keyboard
Expansion slots	1 PCI, 1 PCI Express Gen1 (x8 mechanically, x4 electrically), 1 PCI Express Gen2 (x8 mechanically, x4 electrically), 2 PCI Express Gen2 (x16 mechanically, x8 electrically), 2 PCI Express Gen2 x16
Pointing device	HP USB Laser Scroll Mouse
Power requirements	1110 watts wide-ranging, active Power Factor Correction, direct connection Power Supplies
Storage drive type	300 GB 15000 rpm SAS 146 GB 15000 rpm SAS SAS 146 GB + 300 GB
HDD controller type	SATA (10000 rpm) SATA (7200 rpm) SAS (15000 rpm)
Video card features	No integrated Graphic Card
Maximum HDD capacity	450 GB
Storage drive controller	Integrated 6 channel SATA 3 Gb/s controller with RAID (0, 1, 5 or 10) capability, integrated 8 channel SAS controller with RAID (0, 1 or 10) capability, optional LSI 8888 ELP 8-port SAS HW with RAID (0, 1, 5 or 10) capability
Minimum storage drive space	146 GB
Operating system installed	Windows Vista Business
Compatible operating systems	HP Installer Kit for Linux
Chassis type	Mini Tower
Country of origin	China

Weight and Dimensions

Depth	526.5 mm
Width	203.5 mm
Height	445.1 mm
Weight	19500 g
