HP Z800

Third-Party Master to Linux Emulator
WHT
BLK
BLK
RED
GND
MALE DB9
2 -RX -
7 -RX +
8 -TX-
3 -TX+
8 -TX-
3 -TX+
2 -RX -
7 -RX+
4 - GND (SHIELD)
4 - GND (SHIELD)
PAIR 1
PAIR 2

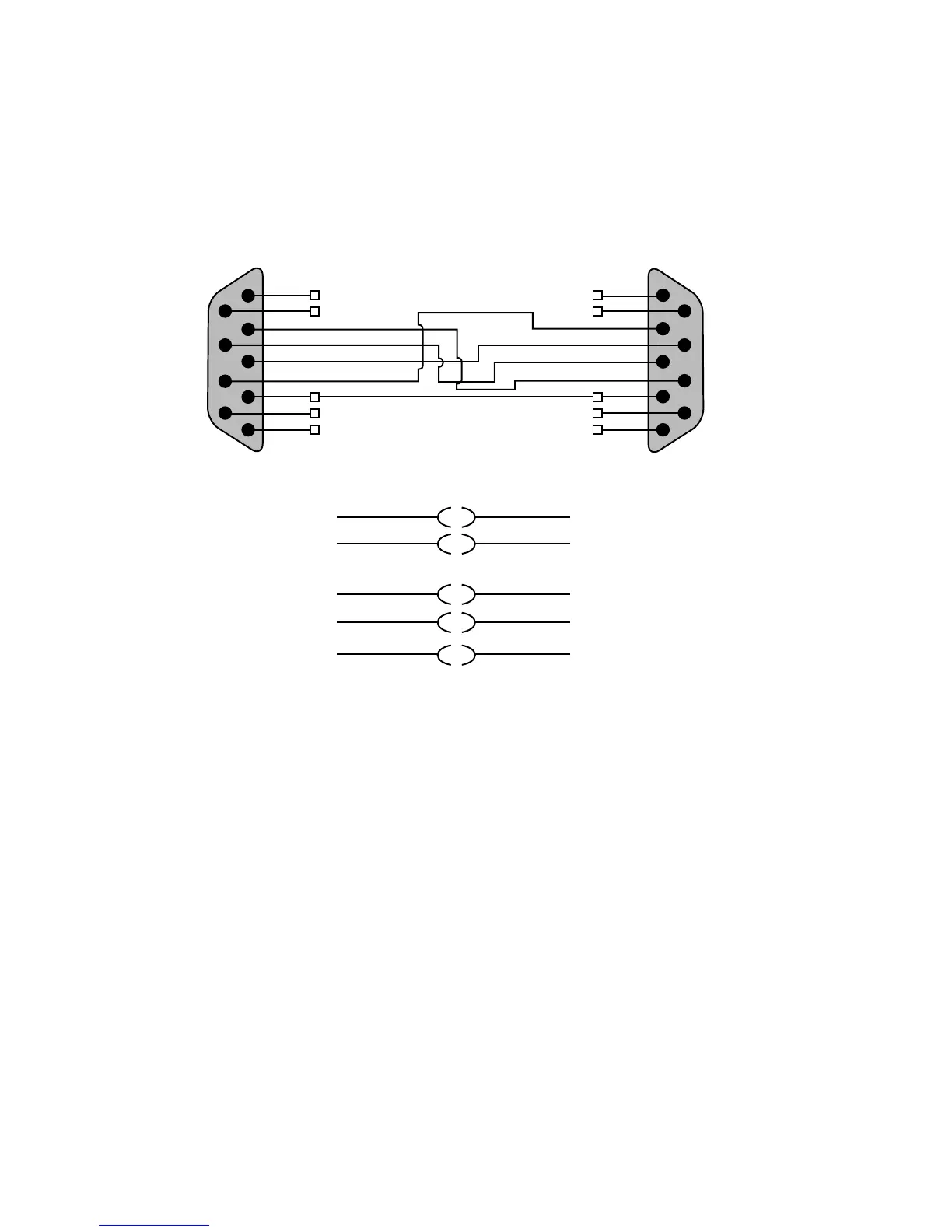

VTR-Emulation Control Cable:
3rd-Party Device Master Controlling Linux (AJA) Emulator
3rd-Party Device Master
Linux(AJA) Emulator
OEM-2K: MALE DB9
OEM-LH: FEMALE DB9
1
6
2
7
3
8
4
9
5
1
6
2
7
3
8
4
9
5
RS-422
