XR 5402 and XR 5412 Wiring Diagrams
The following digrams illustrate 2-loop and 4-loop connections for XR 5402 and XR 5412 series storage
assemblies.
XR 5402 and XR 5412 series storage assemblies support 2-loop configurations with one XR RAID enclosure,
and 4-loop configurations with two XR RAID enclosures.
To FC adapter on workstation / LMS (port 1)
To FC adapter (port 2)
XR RAID Enclosure
XE (EBOD) Expansion Enclosure
XE (EBOD) Expansion Enclosure
XE (EBOD) Expansion Enclosure
XE (EBOD) Expansion Enclosure
Cabling for additional enclosures

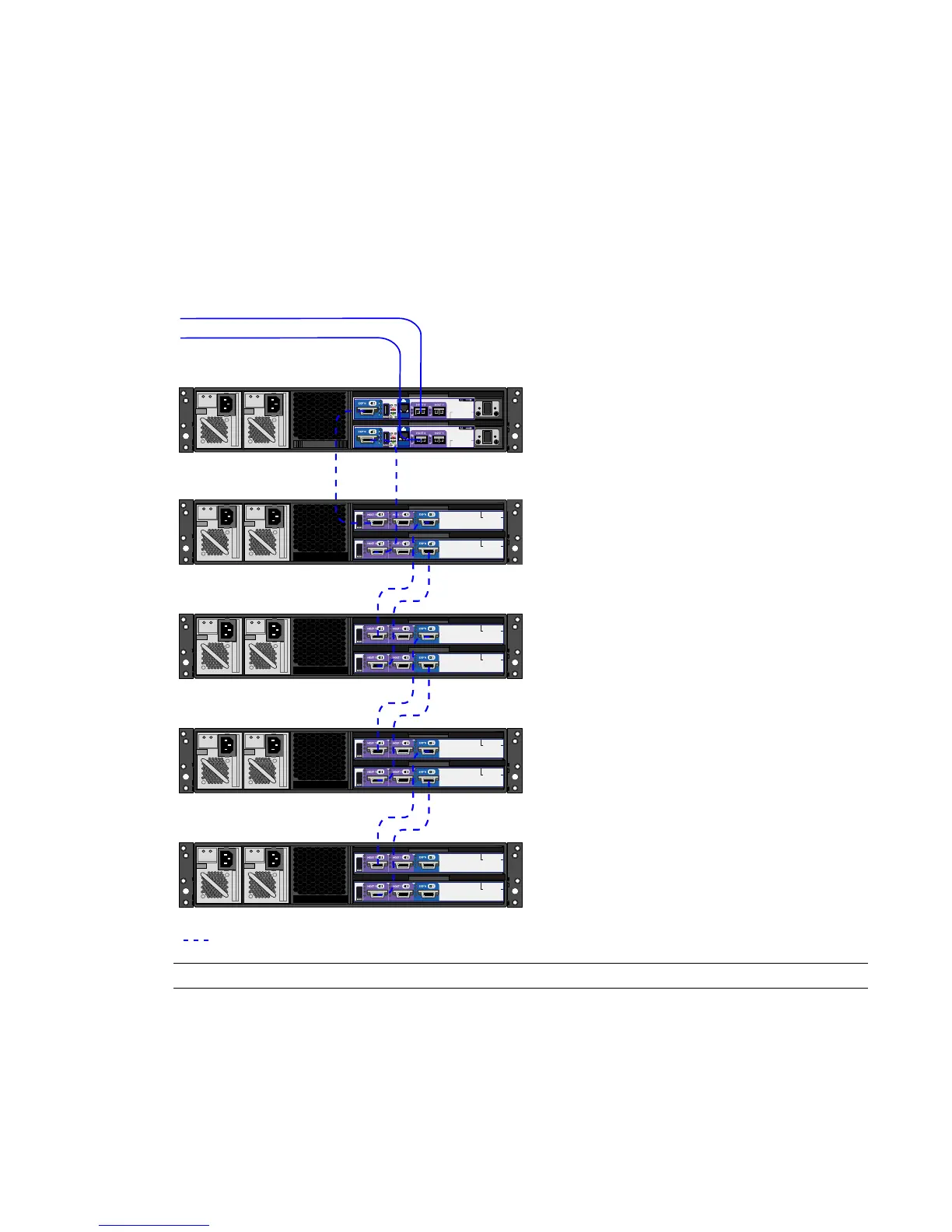

Single XR 5402 / 5412 RAID enclosure, 2 loops
NOTE The XR 5402 and XR 5412 RAID enclosures support a maximum of four XE expansion enclosures.
36 | Chapter 6 Connecting Storage
