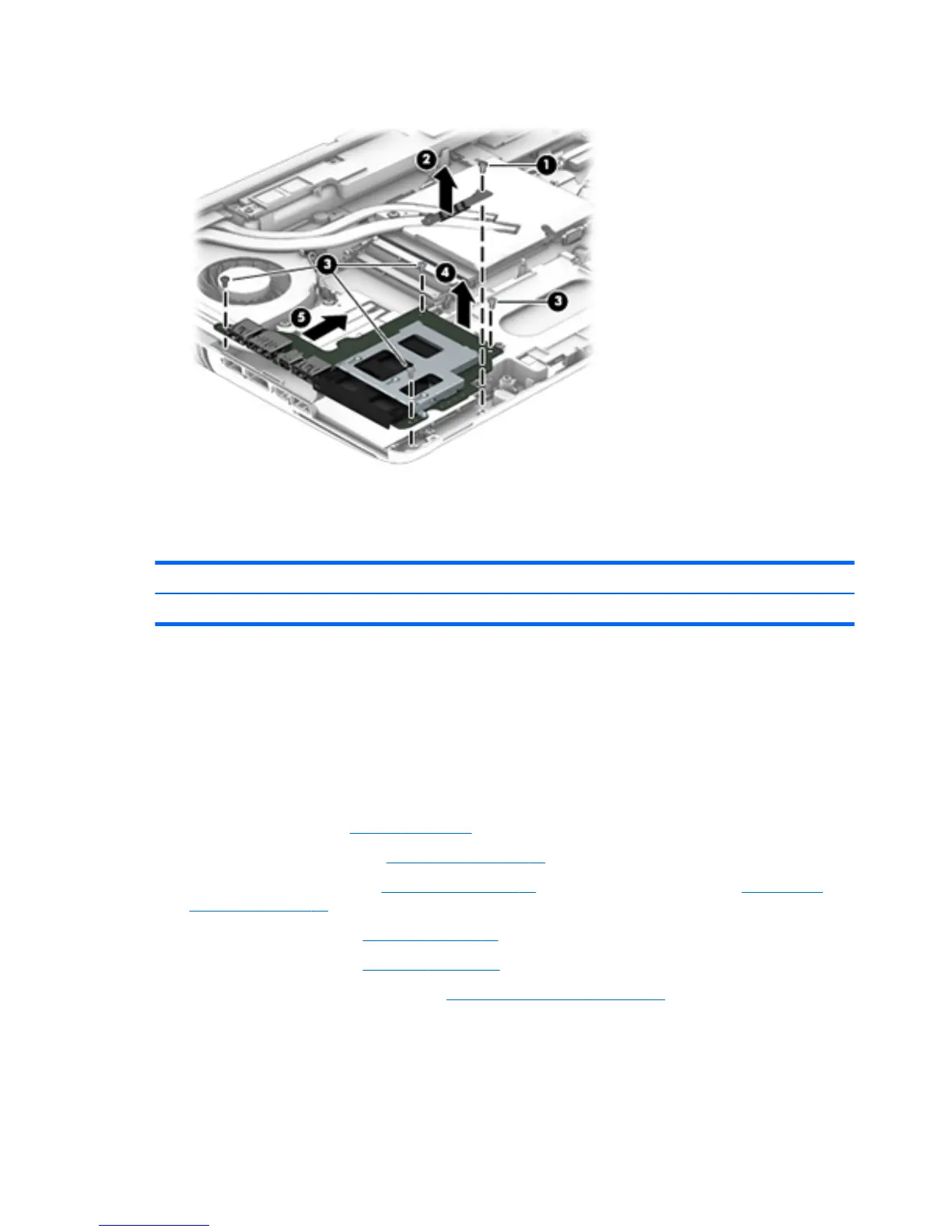

5. Remove the ExpressCard assembly (5) by sliding it up and to the right at an angle.
Reverse this procedure to install the ExpressCard assembly.
Smart Card reader
Description Spare part number
Smart Card reader (includes cable) 742159-001
Before removing the Smart Card reader, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 45).
5. Remove the service cover (see Service cover on page 47).
6. Remove the optical drive (see Optical drive on page 56) or upgrade bay hard drive (see Upgrade Bay
hard drive on page 58).
7. Remove the keyboard (see Keyboard on page 61).
8. Remove the top cover (see Top cover on page 71).
9. Remove the ExpressCard assembly (see ExpressCard assembly on page 87).
Remove the Smart Card:
1. Remove the three Phillips PM2.5×4.0 screws (1) that secure the Smart Card reader to the system board.
2. Lift the Smart Card reader slightly upward and toward the left (2).
88 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
