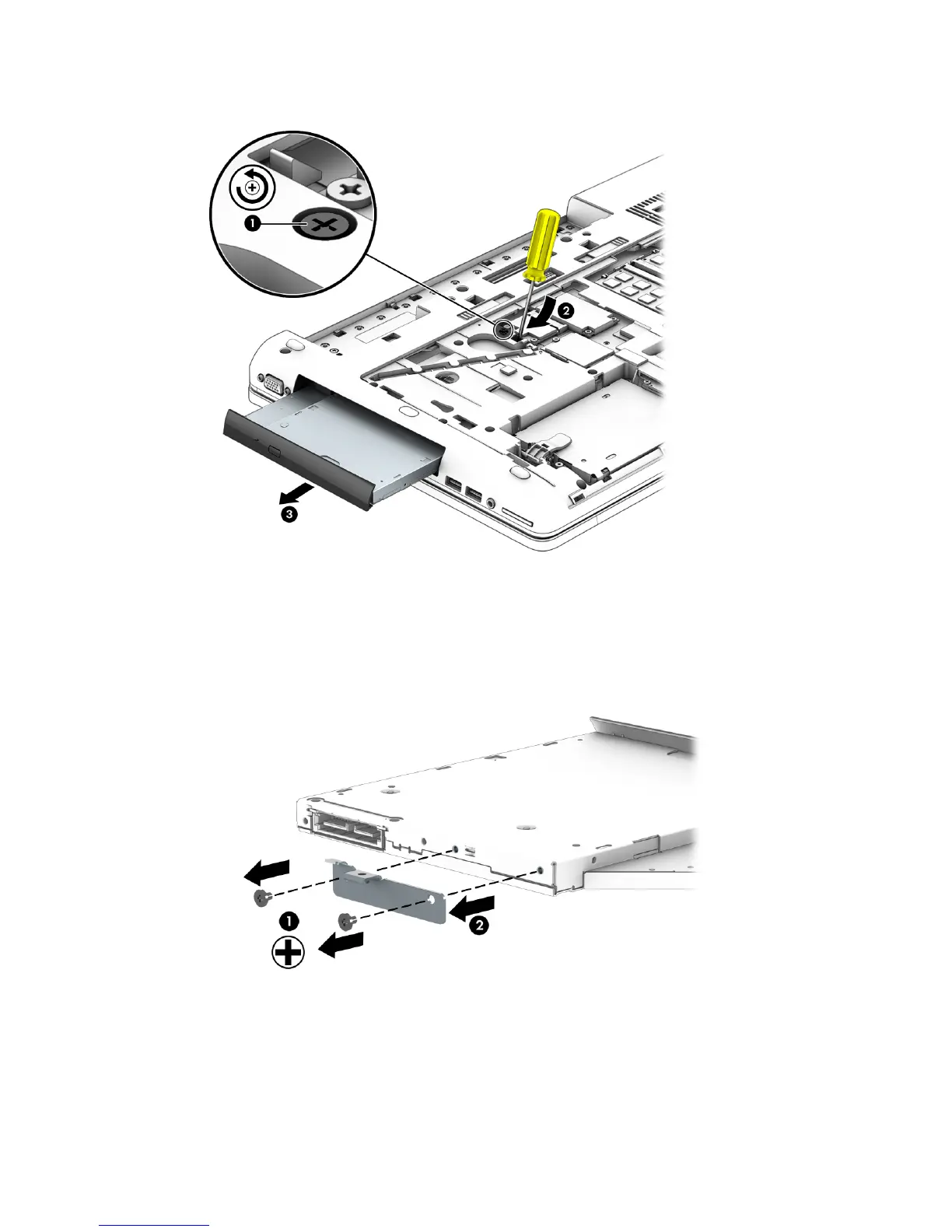

4. Remove the optical drive (3).
5. If it is necessary to replace the optical drive bracket:
a. Position the optical drive with the rear toward you.
b. Remove the two Phillips M2.0×3.0 screws (1) that secure the optical drive bracket to the optical
drive.
c. Remove the optical drive bracket (2).
Reverse this procedure to reassemble and install the optical drive.
Component replacement procedures 57
