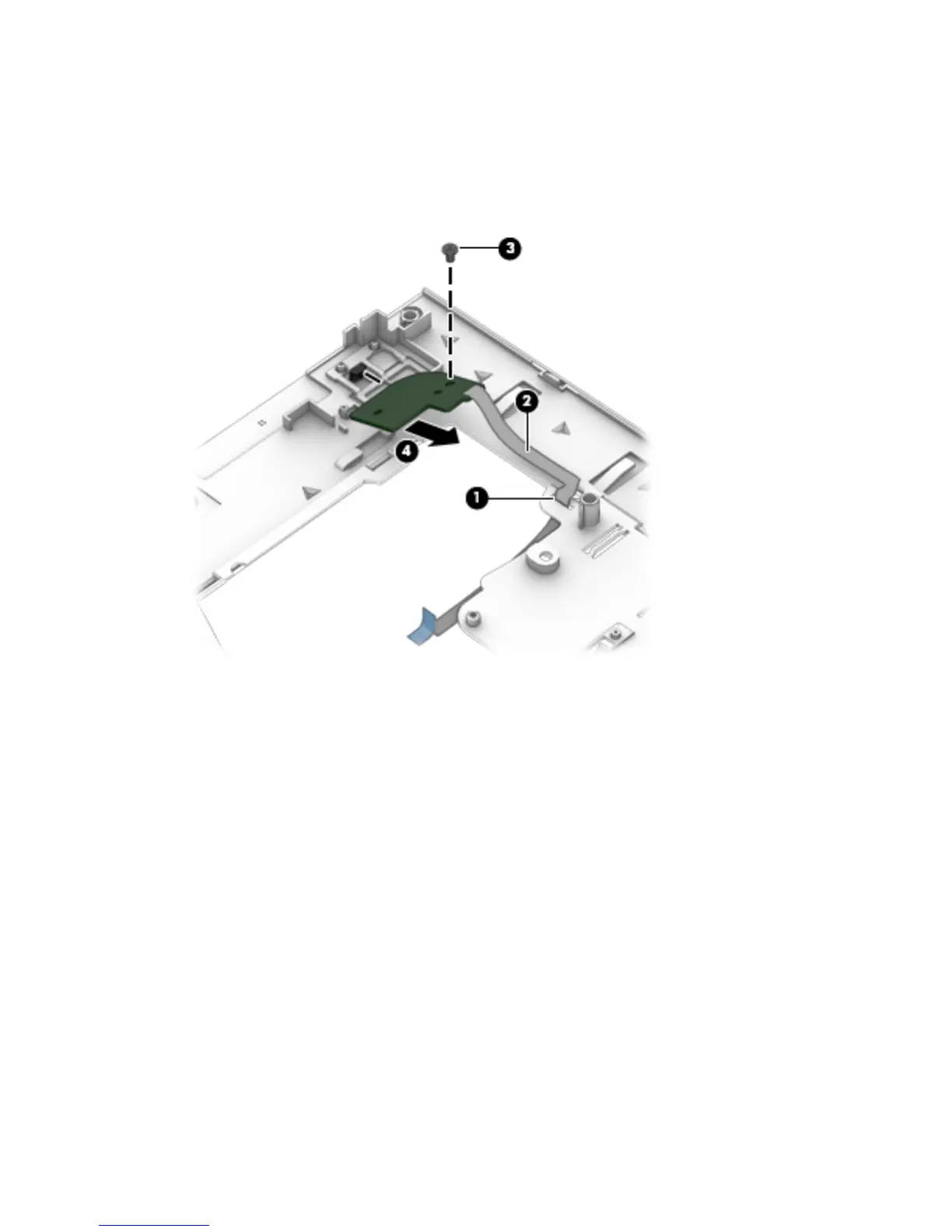

3. Detach the power button board cable (2) from the top cover. (The power button board cable is attached
to the top cover with double-sided tape.)
4. Remove the Phillips PM2.0×3.0 screw (3) that secures the power button board to the top cover.
5. Lift the bottom edge of the power button board, and then remove the power button board by sliding it
up and away at an angle from the tab that secures it in place (4).
Reverse this procedure to install the power button board.
80 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
