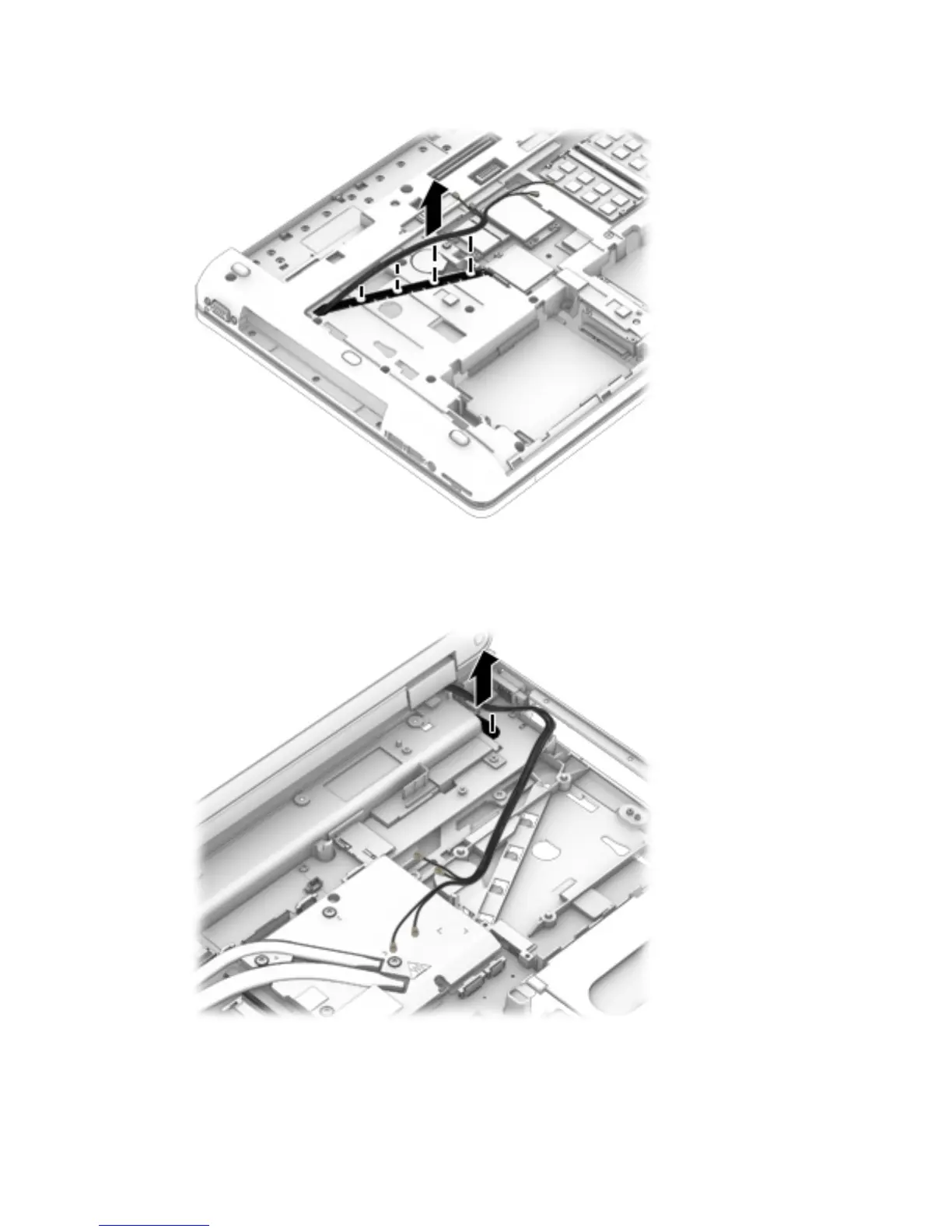

2. Release the WLAN and WWAN antenna cables from the routing channel built into the base enclosure.
3. Turn the computer right side up with the front toward you.
4. Open the computer as far as it will open.
5. Release the WLAN and WWAN antenna cables through the opening in the base enclosure.
6. Close the computer.
7. Position the computer with the rear toward you.
8. Remove the four Torx T8M2.5×3.0 screws (1) that secure the hinge cover to the computer.
82 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
