The valve bodies and seatings are threaded
for extraction.
Use the relative M10 extractor.
03
Extract the valves (items 11-12-13-14-15-
23) being careful not to damage them.
04
Check the condition of the components
and change any worn ones.
05 Reassemble the valve, always changing the
seal rings (items 8, 9, 10 and 23).
06
• Please note: Always change the O-rings at each disassembly.
M10 M10

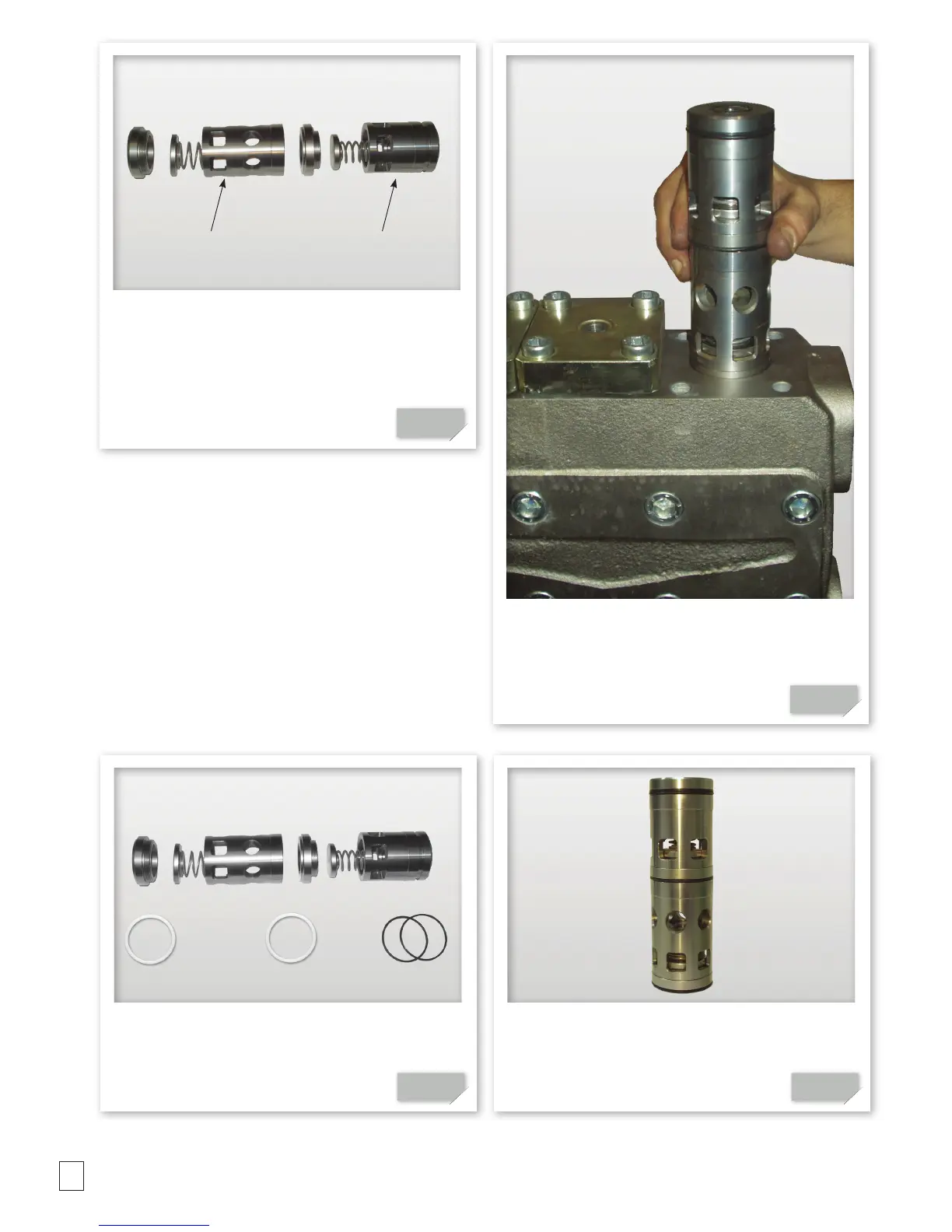

Fig. 18
Fig. 19
Fig. 20 Fig. 21
