HTC 650 - Exploded Diagram, HTC 950 Drive Mechanism; Parts List, HTC 950 Drive Mechanism

32
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
19
20
21
22
23
1
18
11
Parts list, HTC 950 drive mechanism

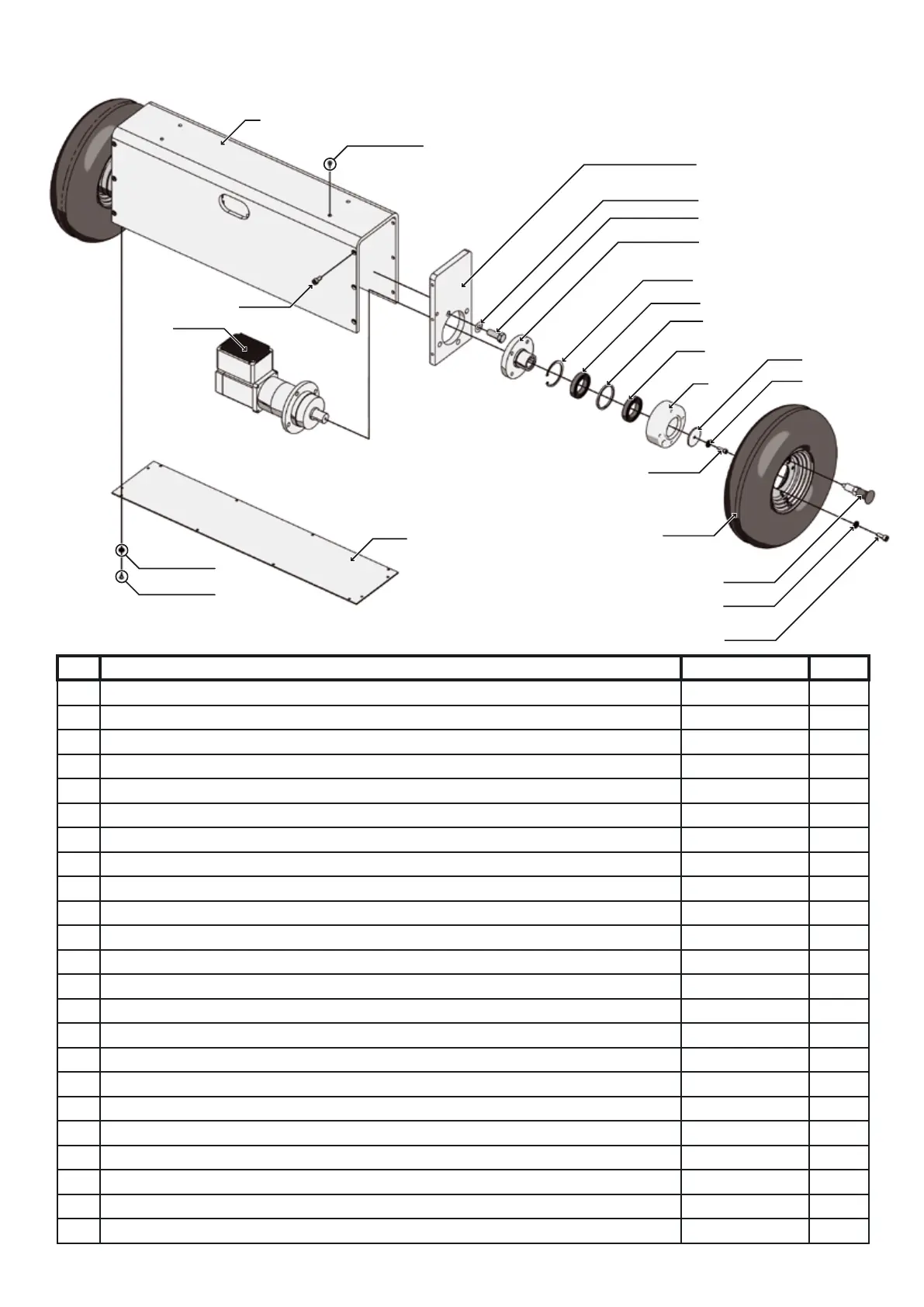

Exploded diagram, HTC 950 drive mechanism
No. Description Art. No. Qty
1 Drive mechanism, middle HTC 950 110999 1
2 Screw MF6S M10x20 310078 4
3 End drive mechanism, left HTC 950 111000 1
3 End drive mechanism, right HTC 950 111001 1
4 Washer BRB M12 13x24x2.5 310003 8
5 Screw M6S M12X25 galvanised 310011 8
6 Hub wheel locking HTC 950 111049 2
7 Circlip SGH 62 310204 2
8 Ball bearing 61908-2RS1 111087 2
9 Spacer wheel locking HTC 950 111052 2
10 Ball bearing 61908-2RS1 111087 2
11 Sleeve wheel locking HTC 950 111050 2
12 Washer wheel locking HTC 950 111051 2
13 Washer BRB M6 310012 2
14
Screw MC6S M8x20 8.8 galvanised 310161 8
15 Washer BRB M8 310077 8
16 Adjustment bolt Lockable wheel 111036 2
17 Wheel HTC 950 110899 2
18 Screw MC6S M6x35 8.8 galvanised 310191 2
19 Bottom plate drive mechanism HTC 950 111013 1
20 Screw MC6S M5x10 galvanised 10475 12
21 Washer BRB 5,3x10x1 310194 12
22 Driving motor RX 111126 2
