HTC 650 - Exploded diagram, HTC 950 chassis; Parts list, HTC 950 chassis

26
Parts list, HTC 950 chassis

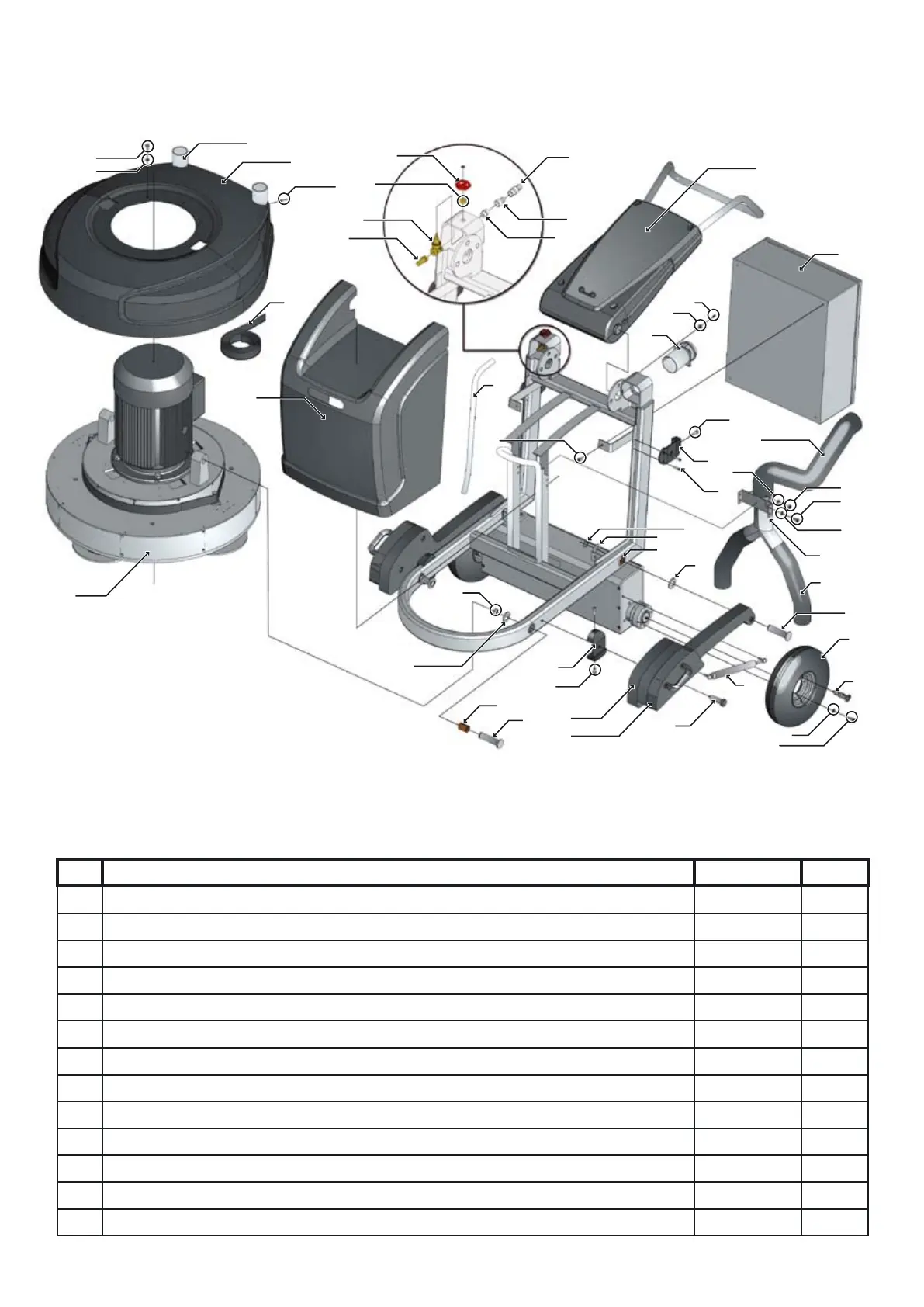

Exploded diagram, HTC 950 chassis
1
2
3
4
5
7
8
9
10
11
12
13
14
15
16
17
18
20
19
22
23
24
25
26
28
27
29
30
31
32
33
42
21
34
35
36
37
38
39
40
41
43
45
46
44
47
48
49
50
51
6
No. Description Art. No. Qty
1 Hose connection 3/8 111130 1
2 Sliding valve 111131 1
3 Sliding valve 1
4 Sliding valve 1
5 Quick coupling female 111127 1
6 Quick coupling male 1
7 Barrel nipple 3/8 111129 1
8 Handle complete see page 41
9 Screw MC6S M5x12 galvanised 310140 4
10 Washer BRB 5,3x10x1 310194 4
11 Connection, extractor HTC 950 111016 1
12 Power unit 15kW 3X400 HTC 950 110986 1
13 Screw MC6S M8x35 8.8 galvanised 310189
2
