Parts list, HTC 950, handle

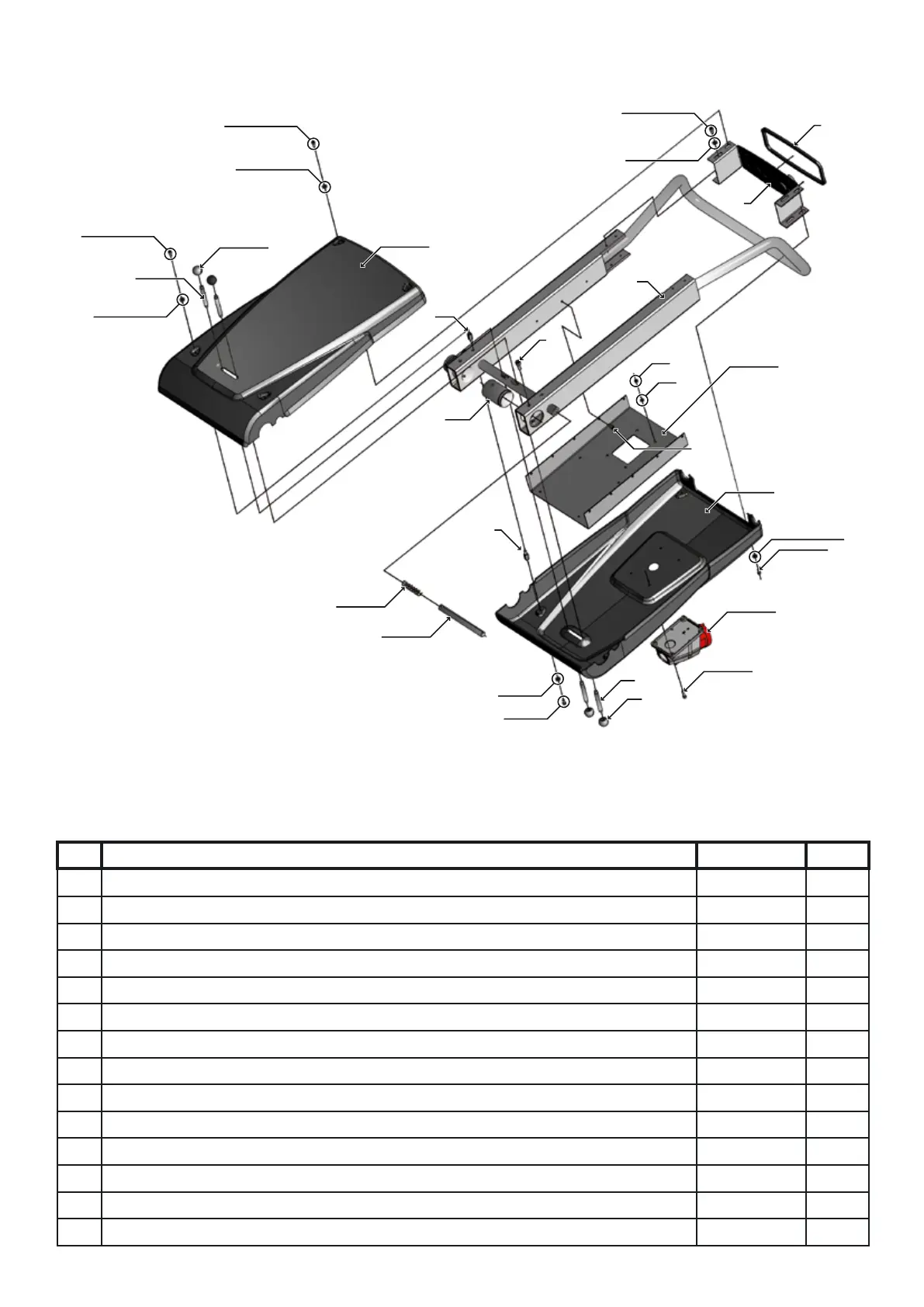

Exploded diagram, HTC 950 handle
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
31
No. Description Art. No. Qty
1 Screw MC6S M6X16 8.8 galvanised 310082 4
2 Washer BRB M6 310012 4
3 Packing control panel 111166 1
4 Console instrument panel HTC 950 110990 1
5 Handle HTC 950 111033 1
6 Nut M6M M5 galvanised 310193 4
7 Washer BRB 5,3x10x1 310194 4
8 Connecting plate elec. HTC 950 111010 1
9 Screw MC6S M6X16 8.8 galvanised 310082 6
10 Control casing lower HTC 950 111043 1
11 Washer BRB M6 310012 2
12 Screw MC6S M6X16 8.8 galvanised 310082 2
13 Wall inlet 32A 346-415V 5P RED
110520 1
13 Wall inlet 32A 346-415V BLACK 110613
1
