HTC 650 - Exploded Diagram, HTC 650 Grinding Head; Parts List HTC 650 Grinding Head

13

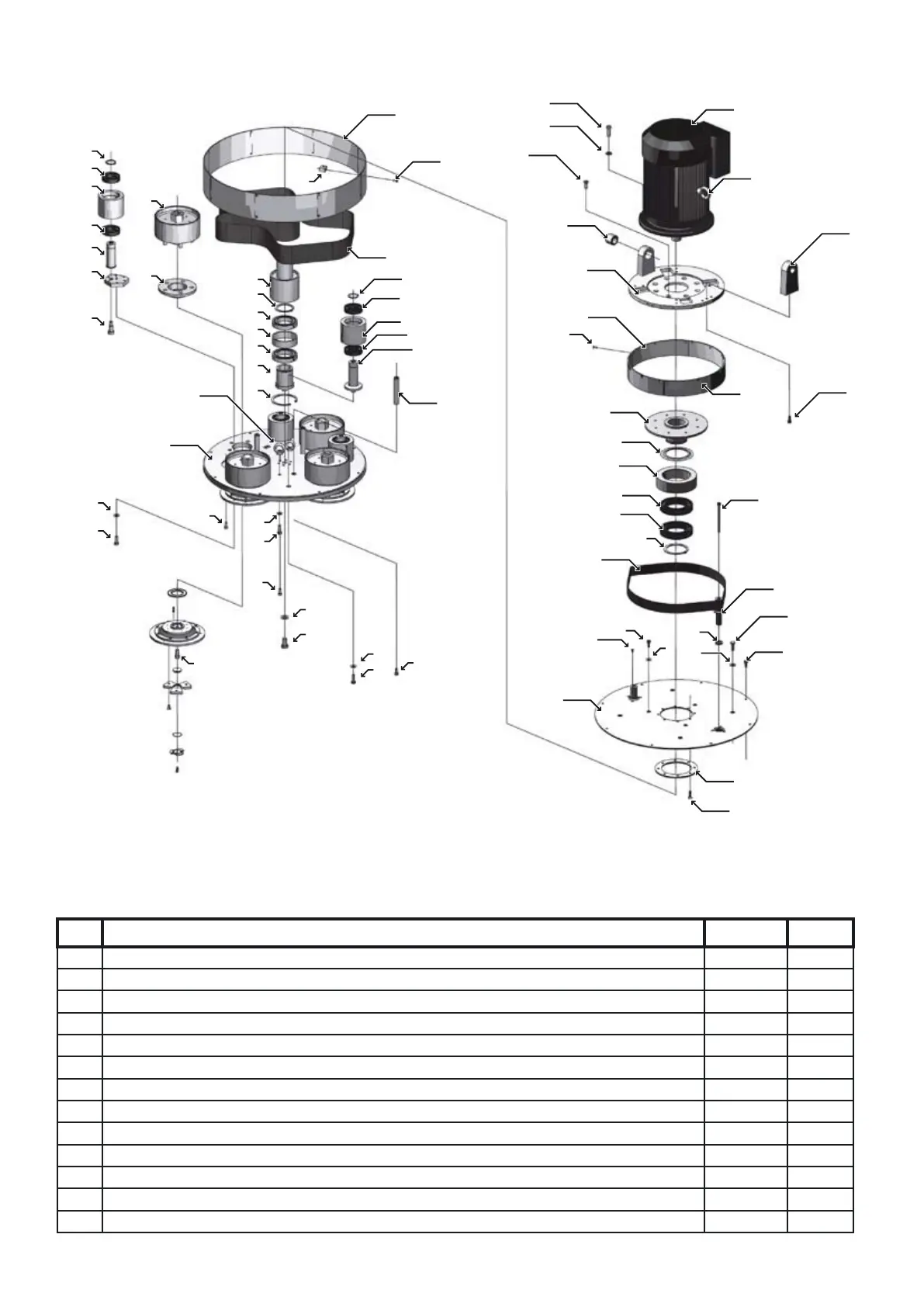

Exploded diagram, HTC 650 grinding head
Parts list HTC 650 grinding head
1
2
3
4
5
6
7
8
9
10
11
12
13
15
17
20
19
21
22
23
24
25
26
27
28
29
31
32
33
34
35
36
37
38
31
40
41
43
44
45
46
47
42
48
49
50
51
52
53
54
55
56
57
58
59
60
61
14
18
16
30
45
55
62
46
47
63
45
45
16
39
No. Description Art. No. Qty
1 Screw M6S M12X30 galvanised 310128 4
2 Washer BRB M12 galvanised 310057 4
3 Motor 11 kW 400/690V 110476 1
4 Lifting eye LH M10 310253 1
5 Screw MF6S M10x30 galvanised 10.9 310146 8
6 Bushing 25-40 30-35 111339 2
7 Fixing lug 111377 2
8 Motor plate HTC 650 (-04) 111072 1
9 Belt ring part 1 HTC 650 (-04) 111448 2
10 Belt ring part 2 HTC 650 (-04) 111449 2
11 Screw MFT 6x16 310014 14
12 Screw MC6S M8x20 8.8 galvanised 310161 6
13 Hub Motor plate HTC 650 (-04)
111076 1
