40

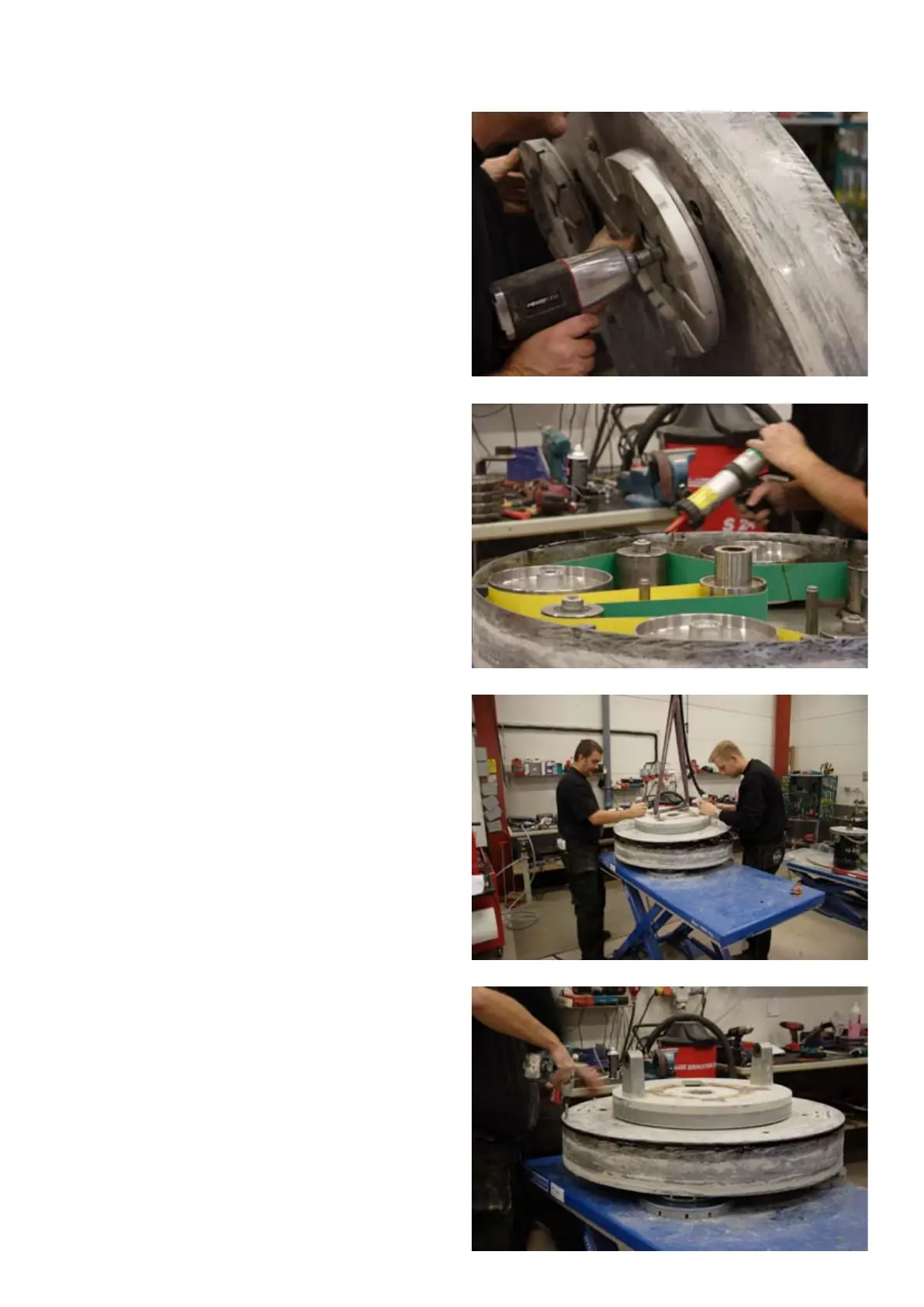

Mount the grinding holders.
Changing the inner belt,
HTC 650,
800 and 950,
continued
Put Loctite flange sealant 5970 on the
edging strip.
Mount the upper cov
er with motor
plate.
Use Loctite 270 on all screws
.
Spread
the sealant.
39
41
