LP-605 Rev. 000 Rel. 009 Date 8.16.18
56

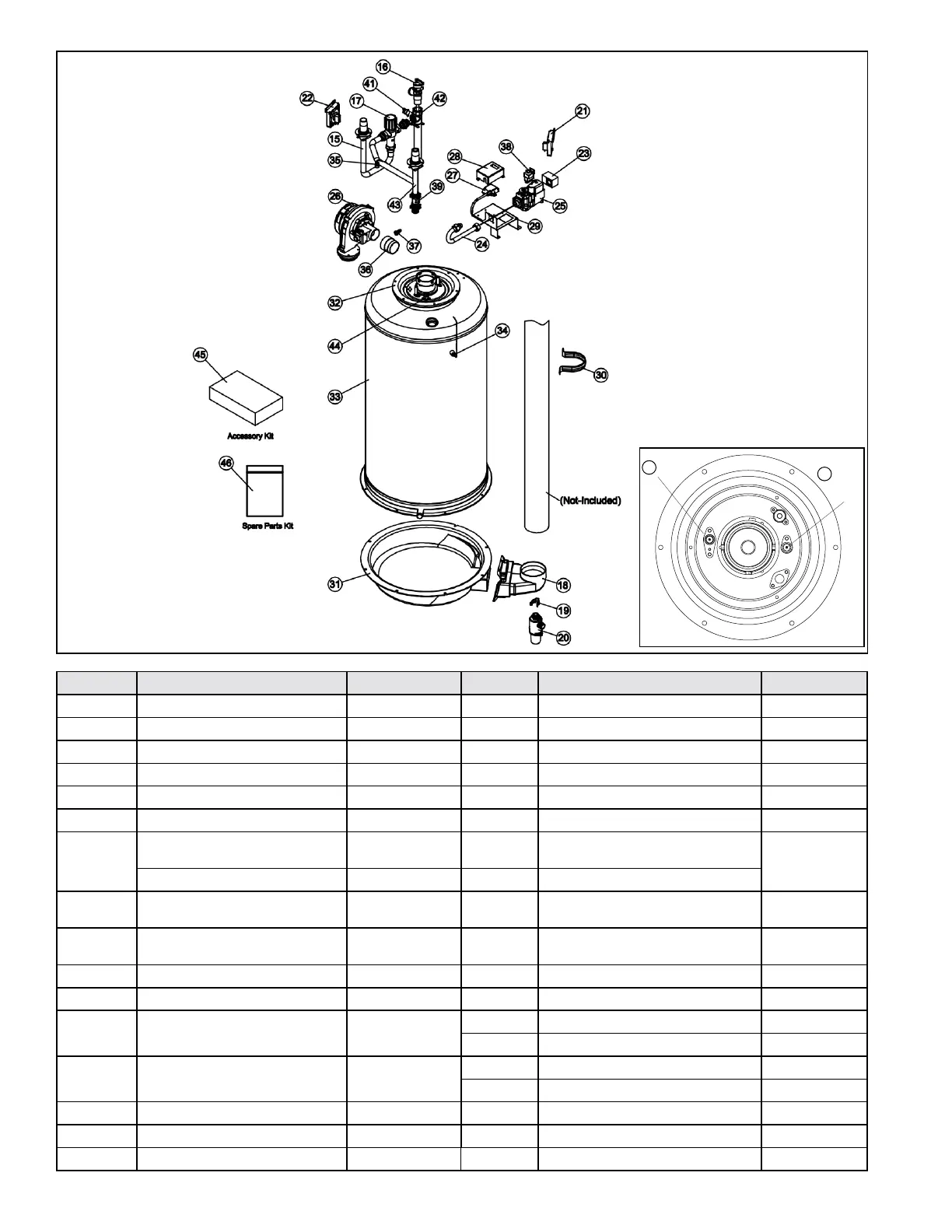

Figure 54 - 40 Gallon Model Combustion System Replacement Parts
Table 36 - 40 Gallon Model Combustion System Replacement Parts
NUMBER DESCRIPTION PART NUMBER NUMBER DESCRIPTION PART NUMBER
15 Hot Outlet Water Pipe 8100P-021 30 Pipe Clamp 8100P-045
16 T&P Relief Valve 8100P-015 31 Exhaust Chamber N/A
17 Tempering Valve 8100P-018 32 Burner Assembly 8100P-004
18 Exhaust Adaptor 8100P-039 33 Water Tank N/A
19 Trap Clamp 8100P-040 34 H/E Thermistor 8100P-014
20 Condensate Trap 8100P-024 35 Outlet Thermistor 8100P-016
21
Intake Air Pressure Switch
(75kBTU Models)
8100P-055 36 Radial Blower Adaptor
8100P-046
(100kBTU Model) 8100P-057 37 APS Adaptor
22
Exhaust Air Pressure Switch
(75kBTU Models)
8100P-053 38 GV Power Plug 8100P-047
Exhaust Air Pressure Switch
(100kBTU Models)
8100P-056 39 Inlet Water Flow Sensor 8100P-023
23 Gas Adaptor 8100P-041 Not Shown Wire Harness 8100P-013
24 Gas Tube 8100P-042 41 ECO Hot Water Outlet (185
o
F) 8100P-060
25 Gas Valve 8100P-035
42 Outlet Fitting 8100P-019
43 Cold Inlet Water Pipe 8100P-020
26 Blower Assembly with Mixer 8100P-054
44 ECO Burner Plate 8100P-022
45 Accessory Kit - 40 Gallon Models 8100P-062
27 Ignitor 8100P-010 46 Spare Parts Kits 8100P-036
28 Ignitor Box 8100P-043 47 Ignition Plug 8100P-050
29 Gas Valve Support 8100P-044 48 Flame Sensing Rod 8100P-071
Flame
Sensing
Rod
Ignition
Plug
47
48
To Next Page
