LP-454 Rev. 004 Rel. 002 Date 12.1.17
41

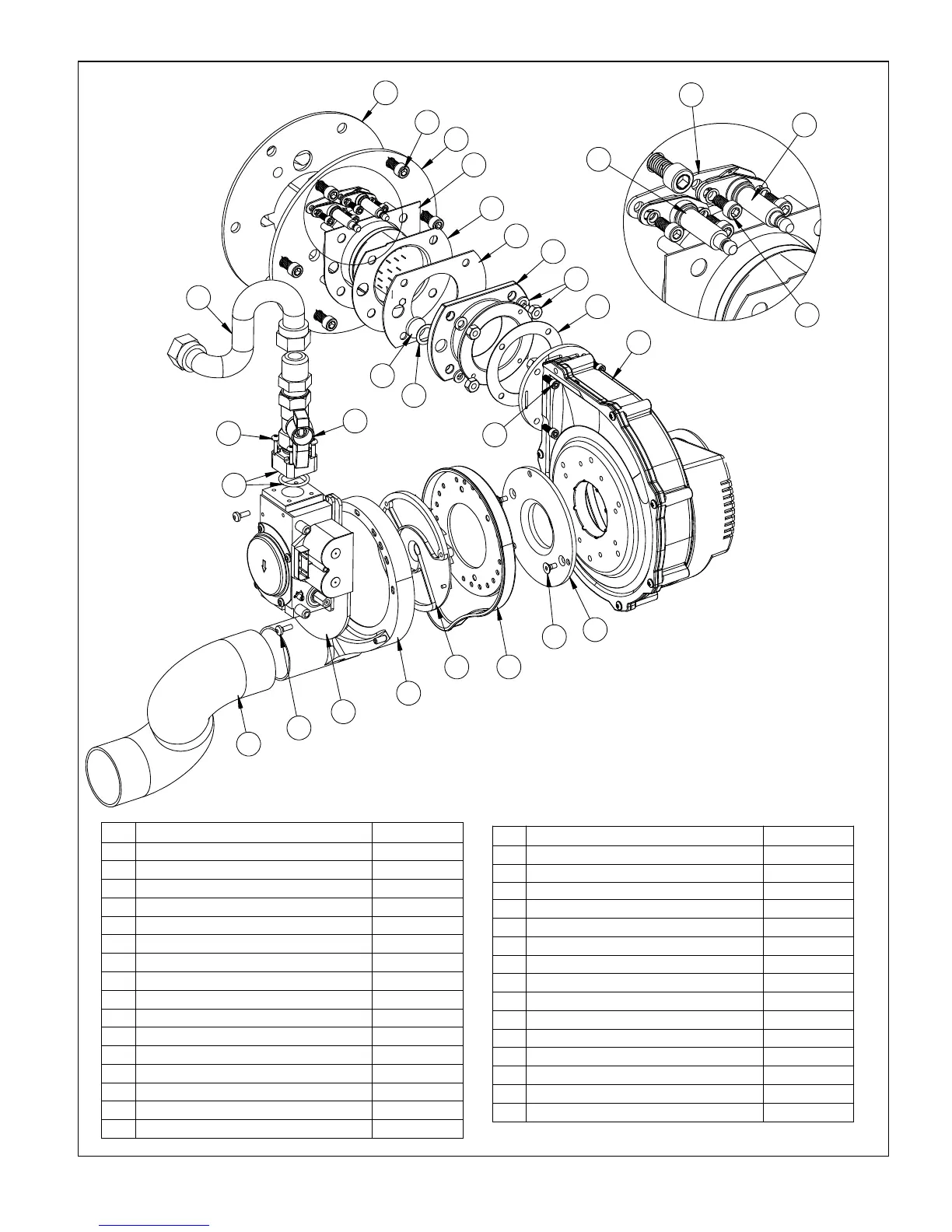

Figure 28 - Replacement Parts - Combustion System
16
12
27
28
1
2
7
8
9
25
10
11
13
15
26
17
18
19
14
20
21
22
23
24
25
5
4
3
6
LP454-X
04/03/17
Item
#
Description
Replacement Part
#
1 GASKET - MOUNTING PLATE 7100P-139
2 MOUNTING PLATE 7100P-007
3 GASKET - PROBES 7100P-155
4 FLAME RECTIFICATION PROBE 7100P-082
5 IGNITOR ELECTRODE 7100P-124
6 10-32 X 3/8 SCREWS/#10 LOCK WASHERS N/A
7 SCREWS - 5/16-18 7700P-101
8 GASKET - BURNER MOUNTING FLANGE 7100P-152
9 BURNER - 100-130K BTU 7100P-516
BURNER - 160-199K BTU 7100P-517
10 GASKET - BURNER OUTLET 7000P-361
11 GASKET - SIGHT GLASS 7100P-105
12 SIGHT GLASS G2000
13 AIR CHANNEL 7100P-048
14 1/4-20 BRASS NUTS/1/4 LOCK WASHERS 7100P-268
15 GASKET - BLOWER TO AIR CHANNEL 7500P-075
Item
#
Description
Replacement Part
#
16 COMBUSTION BLOWER (w/GASKET, SIGHT GLASS) 7100P-518
17 SCREWS - 10-32 x 1/2 7700P-094
18 ADAPTER PLATE 7250P-644
19 FLAT HEAD SCREW - ADAPTER PLATE 7100P-045
20 AIR INTAKE ADAPTER - BLOWER SIDE 7500P-185
21 SWIRL PLATE - BLACK (100/130K BTU) 7100P-042
SWIRL PLATE - WHITE (160/199K BTU) 7500P-092
22 AIR INTAKE ADAPTER - VALVE SIDE 7500P-184
23 GAS VALVE (100/130K BTU) 7000P-862
GAS VALVE (160/199K BTU) 7000P-863
24 GAS VALVE ADAPTER (w/O-RING) 7250P-454
25 SCREWS - M4 X 20MM - GAS VALVE ADAPTER 7250P-717
26 GAS SHUT-OFF VALVE 7250P-140
27 1/2" FLARE X 1/2" NPT FLEX HOSE 7100P-140
28 TUBE - AIR INLET 7500P-189
