27
LP-179 REV. 11.26.14
The standard unit does not meet the required temperature settings for sanitizer booster applications. Use only the Phoenix Sanitizer
Booster that delivers temperatures of 184
o
F. Inlet water to the booster must be supplied at 140
o
F.

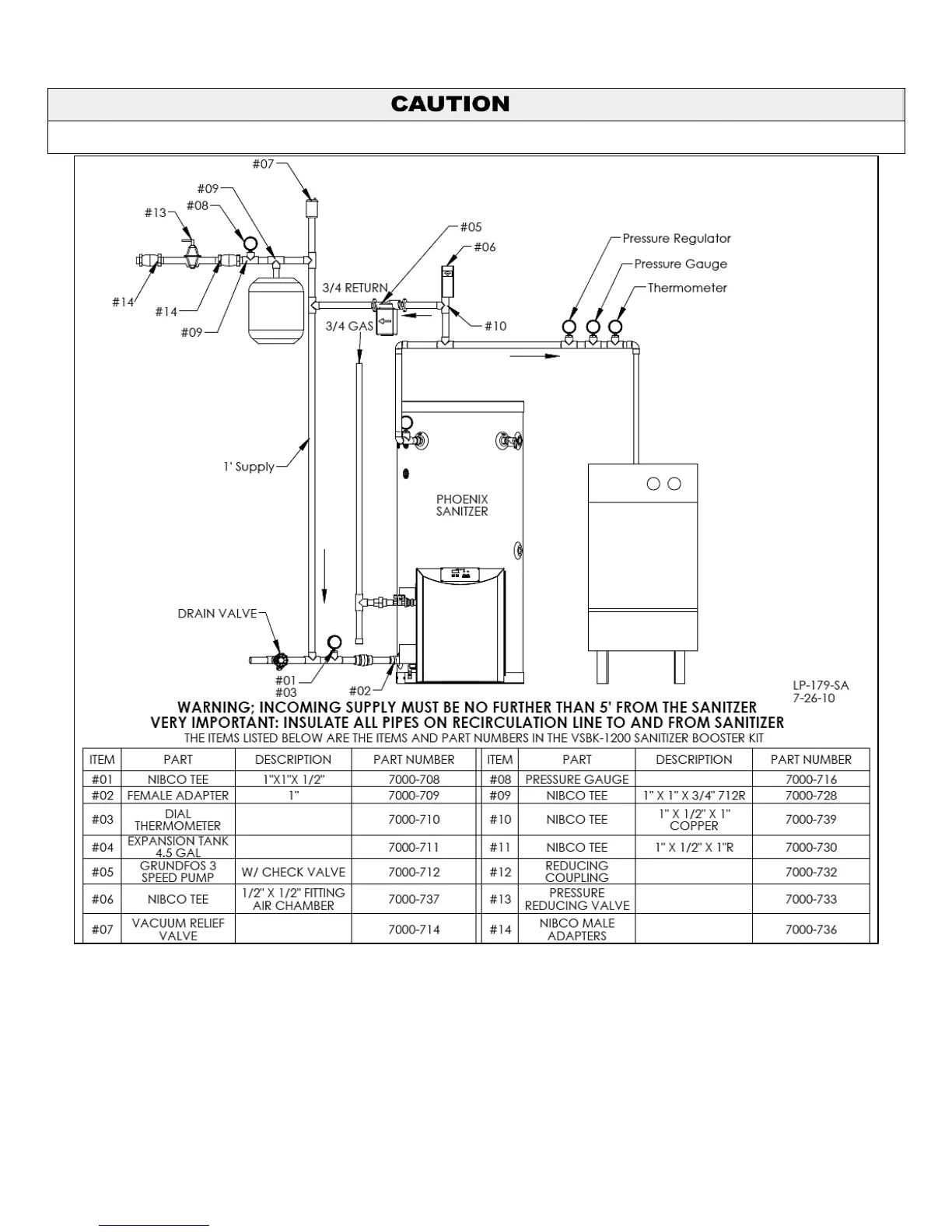

Figure 13 - Phoenix Sanitizer Booster Installation – PH130-55SA / PH199-55SA - LP-179-SA
NOTES:
1. Minimum pipe size should match unit connection size. Upsize pipe accordingly if greater flow is required.
2. A thermal expansion tank suitable for potable water must be sized and installed within this piping system between the backflow preventer and the cold
water inlet.
3. Gas line must be rated to the unit maximum input capacity. Unit must have 10 feet of pipe after gas regulator.
4. All circulators should have an integral flow check.
5. Drains and check valve between unit and storage tank will assist in purging air from system.
6. This drawing is meant to demonstrate system piping only. The installer is responsible for all equipment and detailing required by local codes. In
Massachusetts, you must install a vacuum relief valve per 248 CMR.
7. For further energy savings, install the Phoenix Sanitizer Booster on the same electrical circuit as the dishwasher.
