2.5.2 Pole Mounting
Mounting an AP on a vertical pole

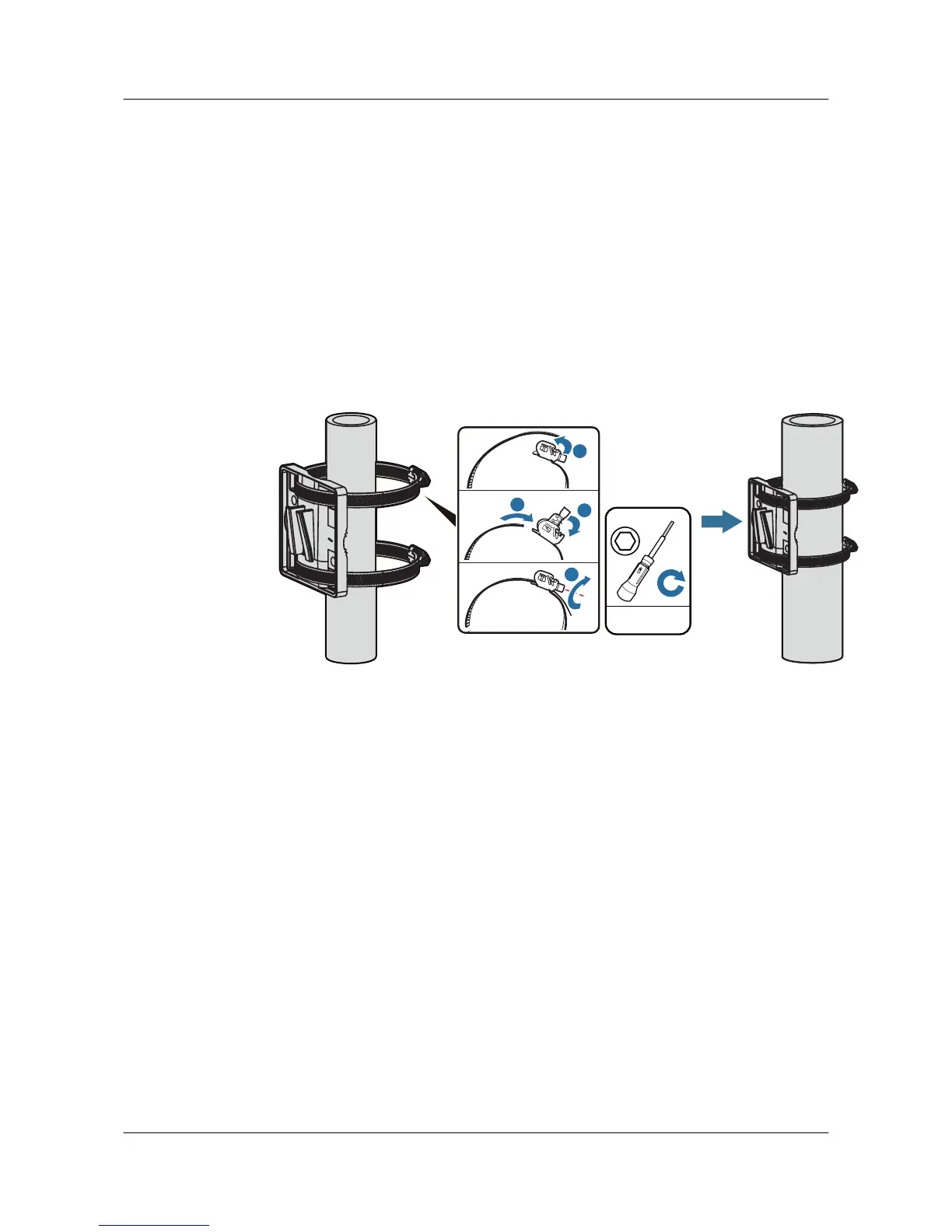

1. Determine the AP installation position and attach the mounting bracket on the pole using
the hose clamp.
a. Use the M6 hex torque screwdriver to loosen screws on the hose clamp and lift the
lid.
b. Slide the hose clamp through the hole of the mounting bracket, attach it to the pole,
and close the hose clamp.
c. Close the lid.
d. Use the hex torque screwdriver to tighten the screws with a torque of 5 N•m.
2. Install the AP. The AP8030DN installation requires use of the angle adjusting component
but the AP8130DN does not.
Install the AP8030DN:
a. Hang the angle adjusting component on the mounting bracket and use a Phillips
screwdriver to tighten the screw at position 3, with a tightening torque of 1.4N.m.
Huawei AP8030DN & AP8130DN
Hardware Installation and Maintenance Guide 2 AP Installation
Issue 02 (2014-12-05) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
