2.6.2 Connecting Optical Fibers and Network Cables
Connecting optical fibers

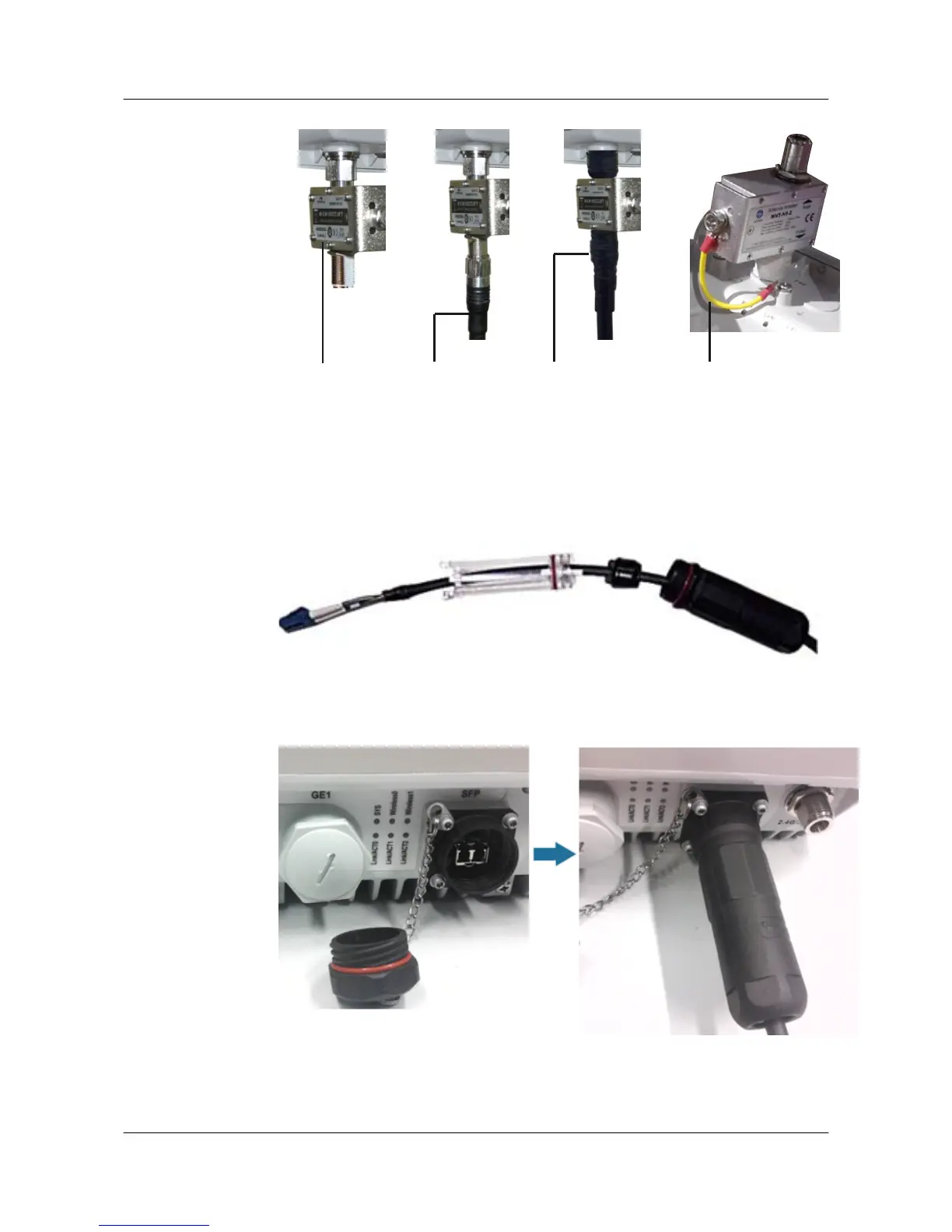

1. Put the optical fiber through the cable-side fiber connector according to the figure.
2. When connecting an optical fiber to the AP, loosen the device-side fiber connector, put the
optical fiber through the fiber connector, and tighten the fiber connector on the device
according to the figure.
