Mounting an AP on a horizontal pole
The procedure for installing the AP against a horizontal pole is similar to the procedure for
installing the AP against a vertical pole.
2. 4G/5G
2. 4G/5G
5G
5G
Default
2.6 Connecting Cables

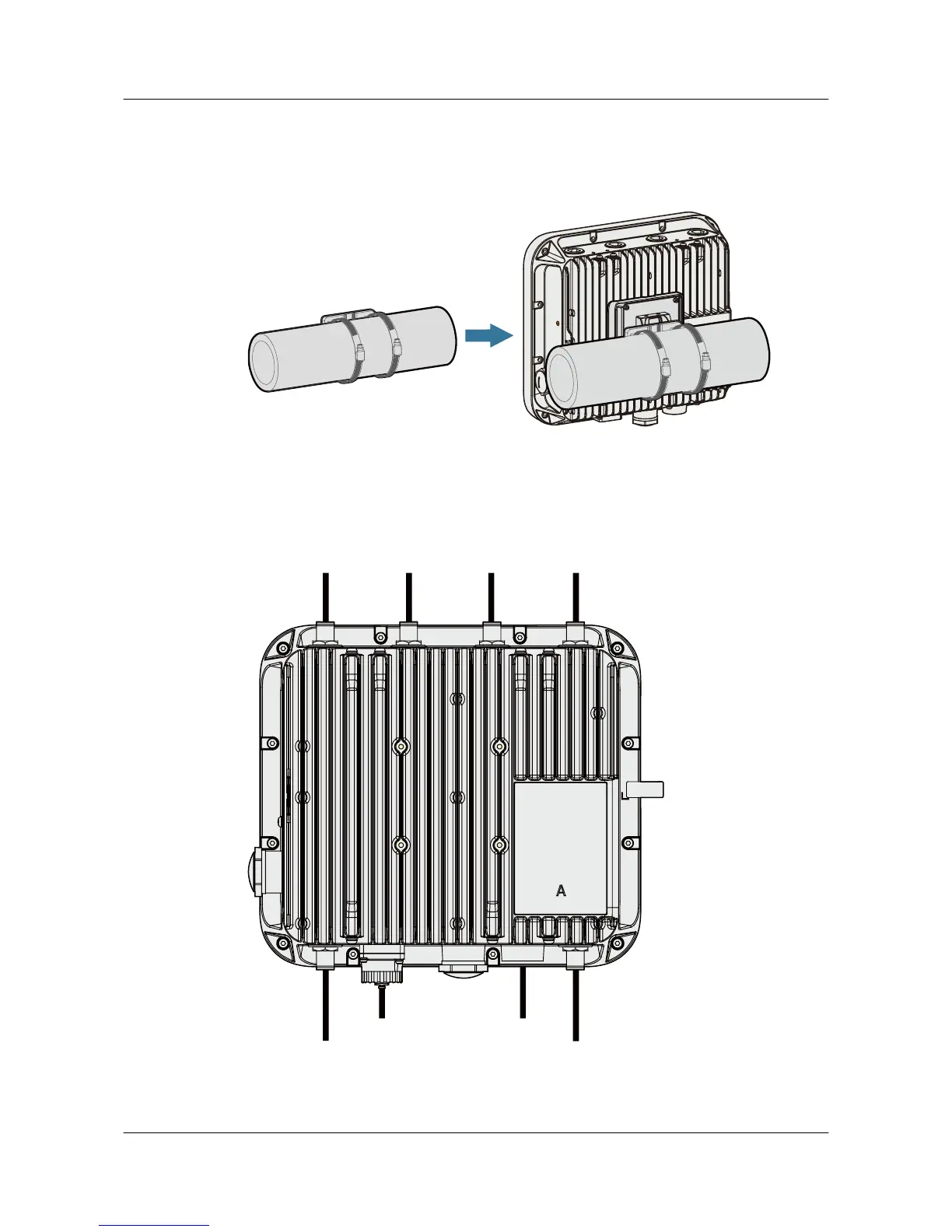

Figure 2-5 AP8130DN external cable arrangement
Feed line Feed line Feed line Feed line
Feed line Feed line
Optical fiber Network cable
Huawei AP8030DN & AP8130DN
Hardware Installation and Maintenance Guide 2 AP Installation
