Huawei AP8030DN User Manual

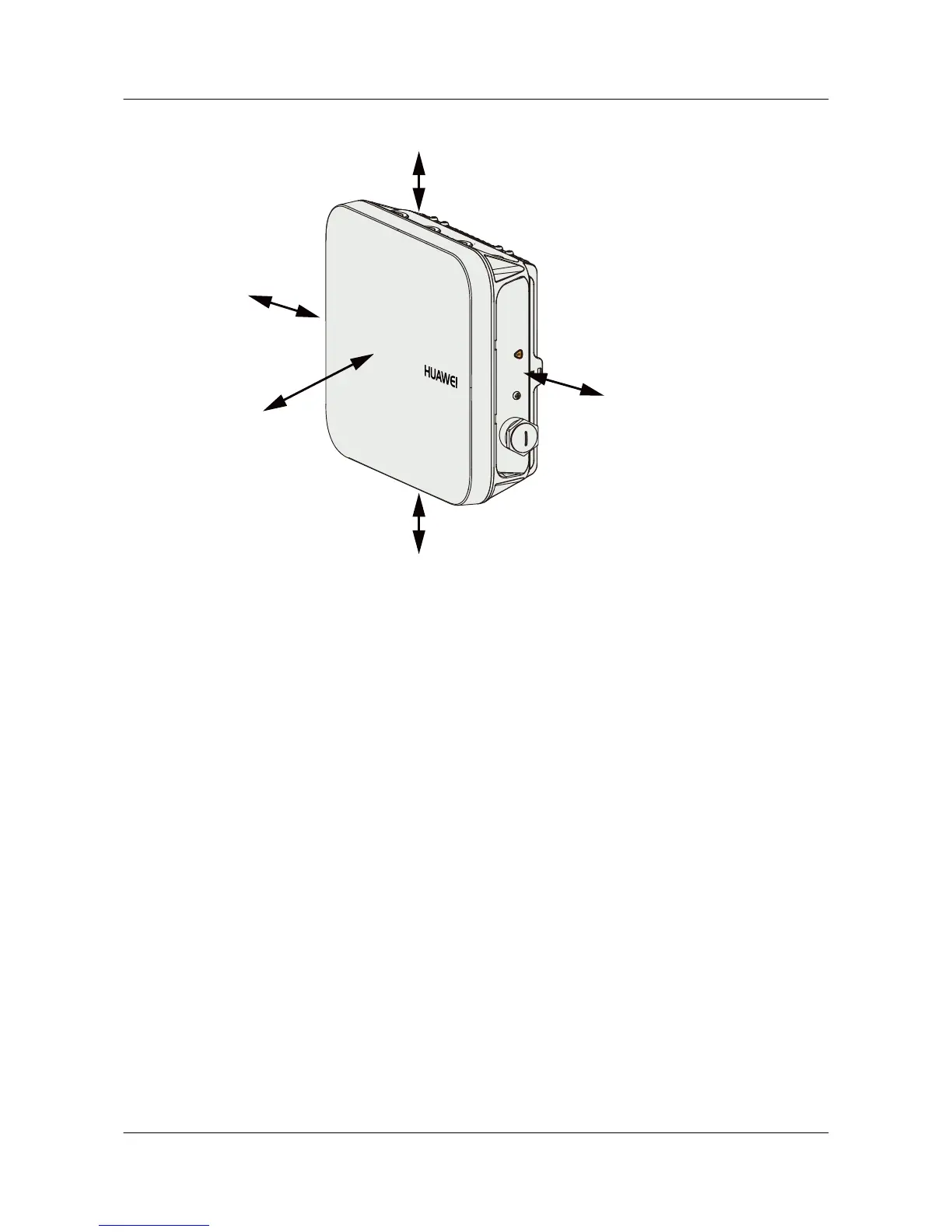

Figure 2-4 Space requirements for installing an AP8130DN (unit: mm)
'HIDXOW
≥500
≥1000
≥500
≥200
≥200
2.5 Installing the AP
2.5.1 Wall Mounting
Wall mounting requires use of the mounting bracket and matching expansion bolts. When the
AP8030DN is mounted to a wall, the angle adjusting component is required. The procedures are
as follows:
1. Fix the mounting bracket to the wall, adjust the installation position, and use the marker to
mark the drilling positions where expansion bolts are installed. See the following figure
for the installation positions.
Huawei AP8030DN & AP8130DN
Hardware Installation and Maintenance Guide 2 AP Installation
Issue 02 (2014-12-05) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
