l To adjust the vertical angle of the AP, use the M6 hex key to loosen the screw at
position 1, install the AP, and adjust the vertical angle with the weight of the AP.

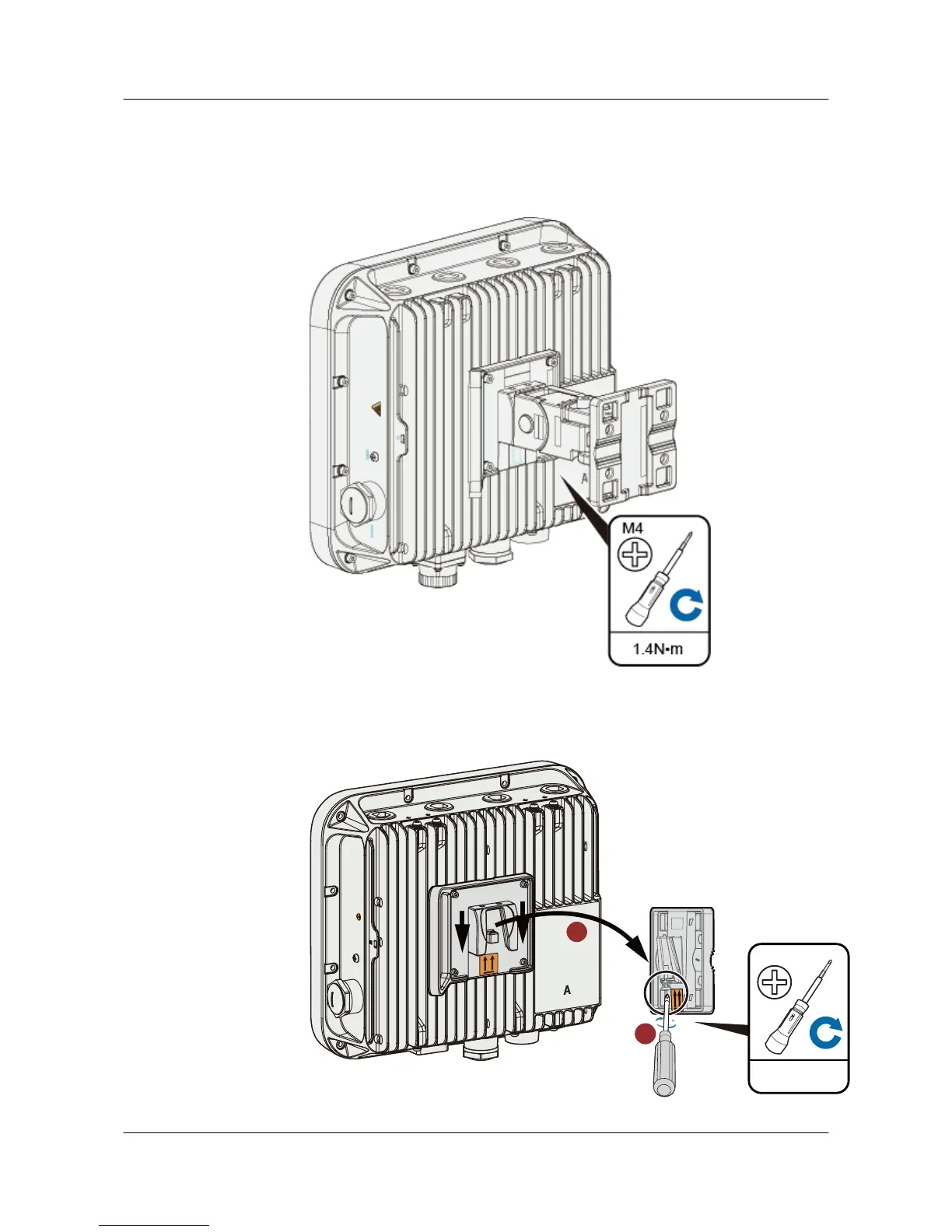

c. Hang the AP with the AP-side mounting bracket module to the wall-side mounting
bracket module and tighten the screws to secure the AP.
Install the AP8130DN:
a. Hang the AP with the AP-side mounting bracket module to the wall-side mounting
bracket module and tighten the screws to secure the AP.
Huawei AP8030DN & AP8130DN
Hardware Installation and Maintenance Guide 2 AP Installation
Issue 02 (2014-12-05) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
23
