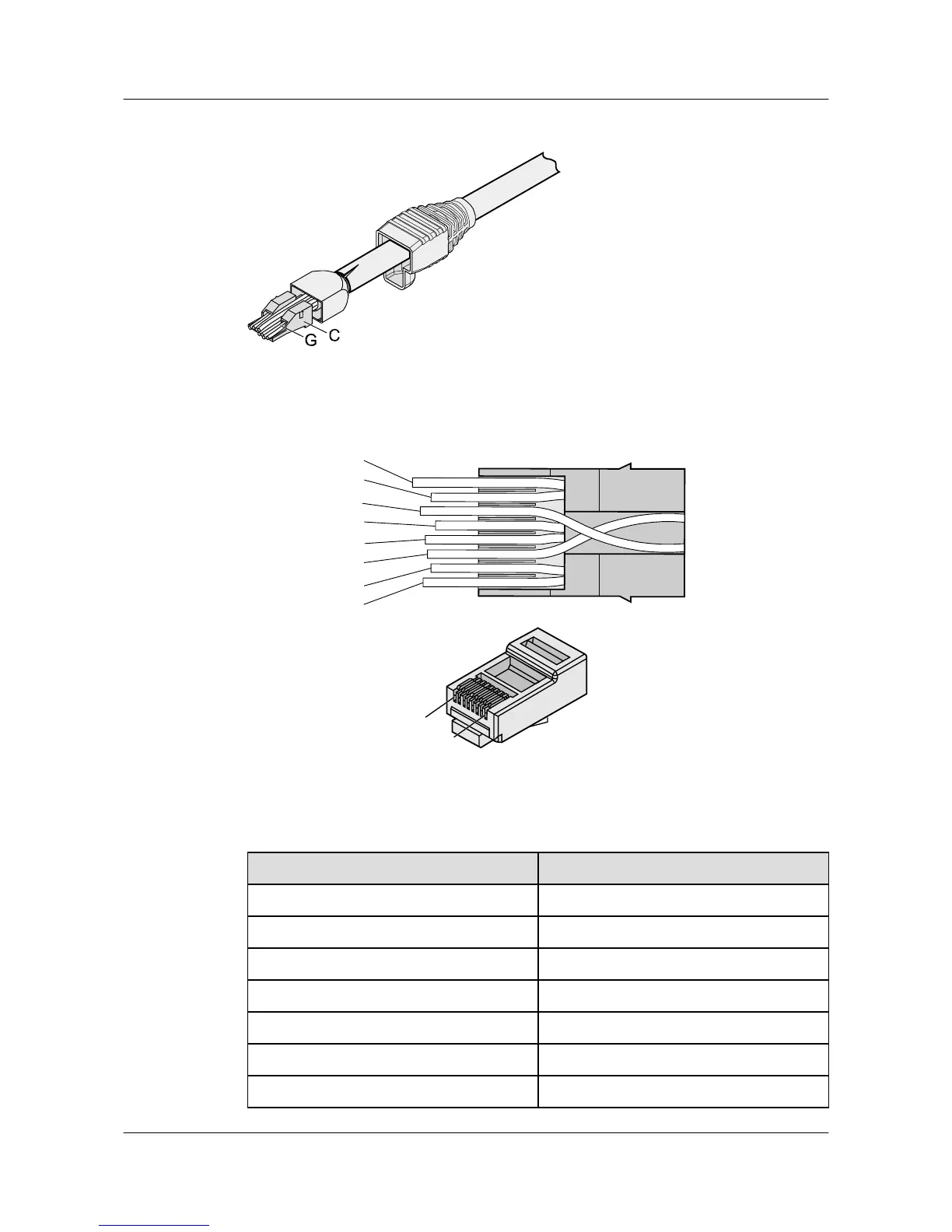

Figure 5-22 Four pairs of cables on a wire holder

Figure 5-23 Connections between wires and pins

Brown

White-Brown

Green

White-Blue

Blue

White-Green

Orange

White-Orange

Pin 8

Pin 1

Table 5-5 Connections between wires and pins (using a straight-through cable as an example)

Matching Pins of Wires Wire Color

1 White-Orange

2 Orange

3 White-Green

4 Blue

5 White-Blue

6 Green

7 White-Brown
