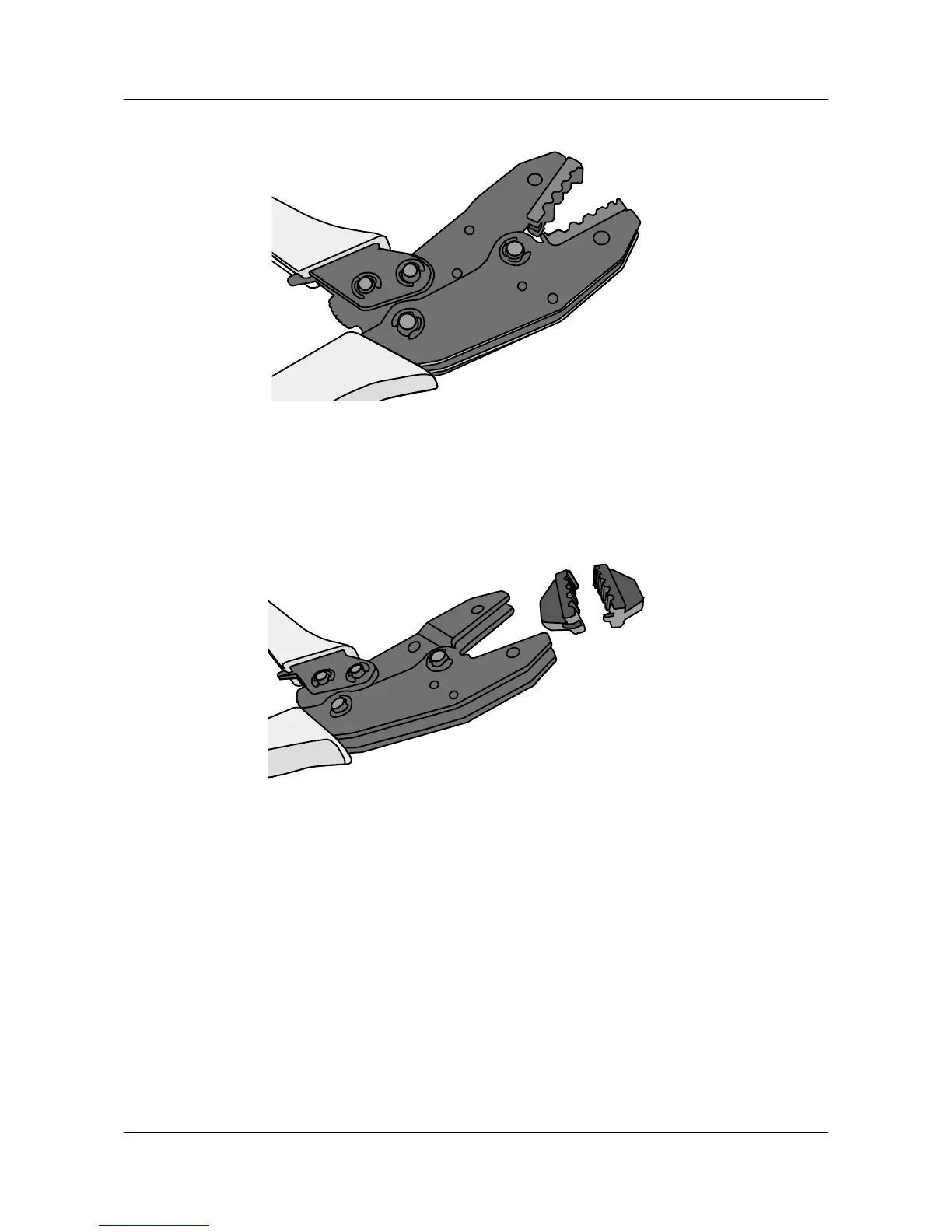

Figure 5-73 Pliers jaw opening automatically

Step 3 Remove the mould from the COAX crimping tools, as shown in Figure 5-74.

Figure 5-74 Removing the mould from the COAX crimping tools

Step 4 Place the mould to be installed into the jaw of the COAX crimping tools and align the screw

holes, as shown in Figure 5-75.

Huawei AP8030DN & AP8130DN

Hardware Installation and Maintenance Guide 5 Appendix

Issue 02 (2014-12-05) Huawei Proprietary and Confidential
