Huawei BTS3902E WCDMA Hardware Description

2.1 BTS3902E Exterior
The BTS3902E has a modular design with its ports on the bottom.

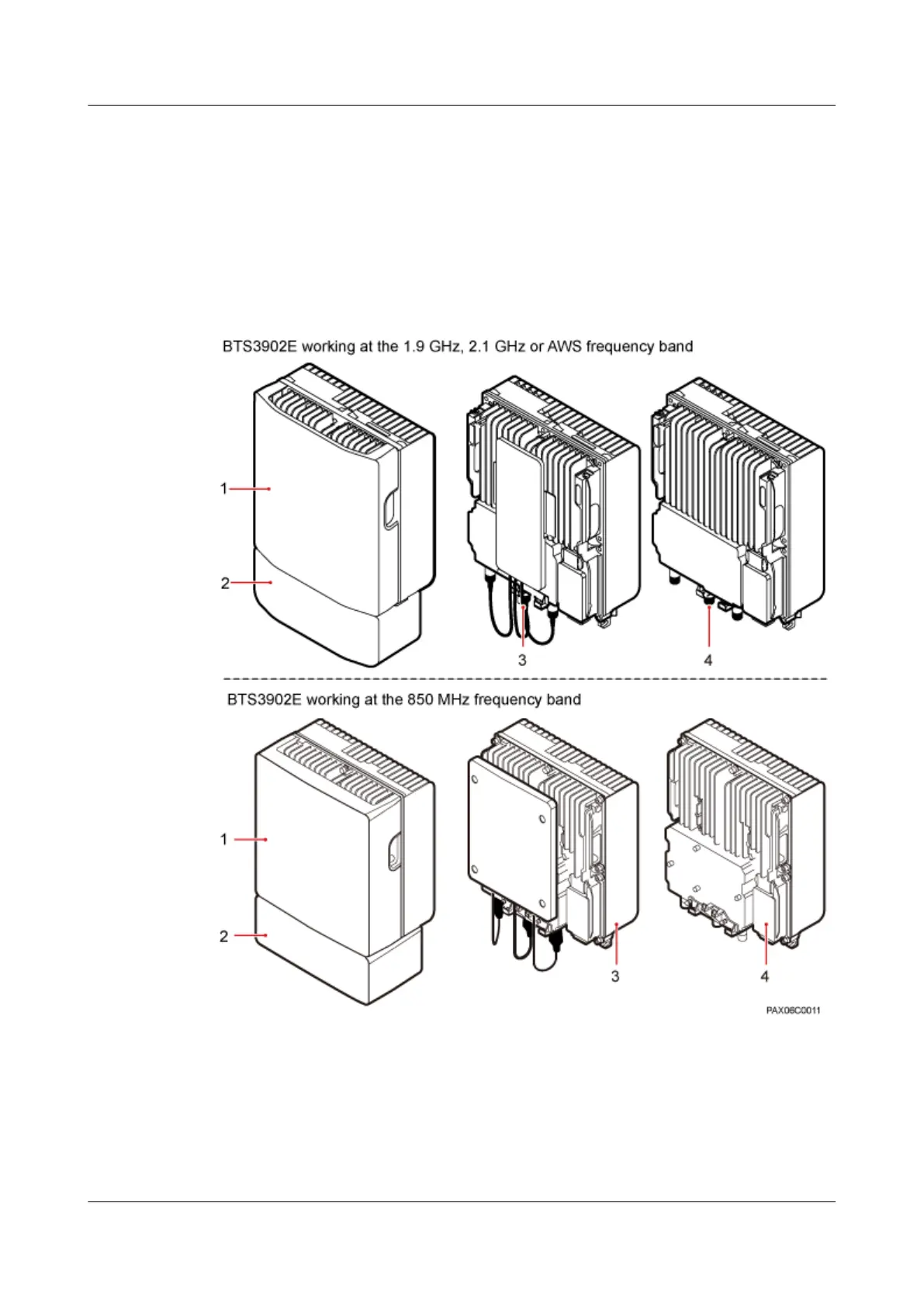

Figure 2-1 shows the BTS3902E. The BTS3902E on the left has a housing, and the
BTS3902E on the right does not have a housing. The camouflage shell is optional.
Figure 2-1 BTS3902E
(1) Upper
housing
(2) Camouflage
shell
(3) BTS3902E with built-in antenna (4) BTS3902E with external antennas
Figure 2-2 shows the dimensions of a BTS3902E, Table 2-1 shows the specifications of a
BTS3902E
BTS3902E WCDMA
Hardware Description
2 BTS3902E Overview
Issue 09 (2014-05-16) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
