Table 3-4 Specifications of PGND cables
Cable Name Cross-
Sectional
Area
One End The Other
End
Cable Color
PGND cable
used for the 1.9
GHz, 2.1 GHz
AWS frequency
band
16 mm
2
(0.025
in.
2
)
OT terminal
(M6, 16 mm
2
[0.025 in.
2
])
OT terminal
(M6, 16 mm
2
[0.025 in.
2
])
Yellow and
green
PGND cable
used for the 850
MHz frequency
band
6 mm
2
(0.025 in.
2
)
OT terminal
(M6, 6 mm
2
[0.025 in.
2
])
OT terminal
(M6, 6 mm
2
[0.025 in.
2
])
Yellow and
green
OT terminals must be added to both ends of the PGND cable onsite. You can determine the color
of the cable and whether to use two-hole terminals in compliance with local regulations.
Figure 3-2 shows a two-hole terminal.

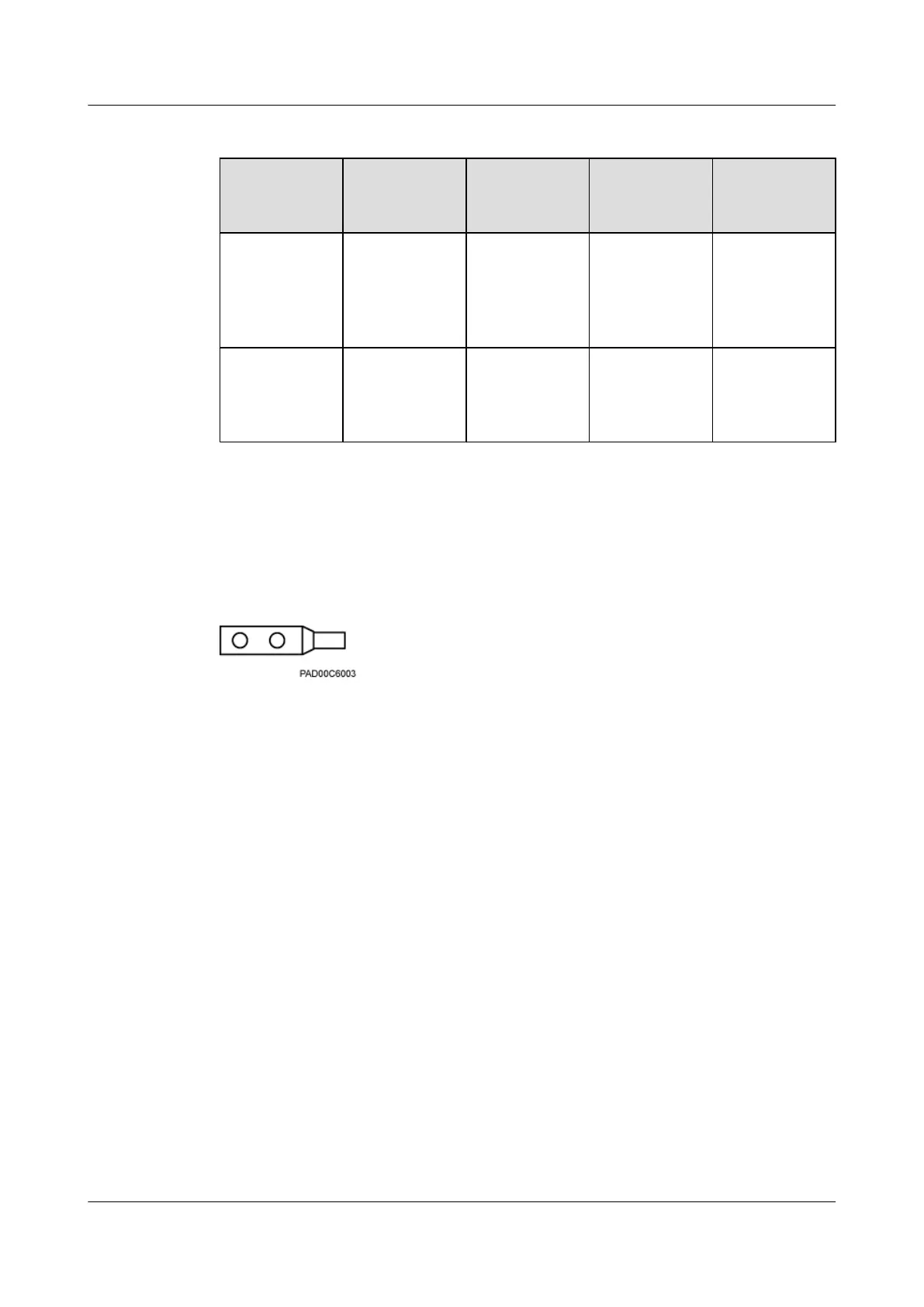

Figure 3-2 Two-hole terminal
3.3 BTS3902E Power Cable
A BTS3902E power cable feeds power to a BTS3902E from an external power device.
3.3.1 AC Power Cable (Working at The 1.9 GHz or 2.1 GHz
Frequency Band)
This section describes the AC power cable applied to the BTS3902E working at the 1.9 GHz or
2.1 GHz frequency band. For outdoor BTS3902Es, the AC surge protection box is optional.
l Without AC Surge Protection Box
Figure 3-3 shows the power cable between the BTS3902E and the power device when no
AC surge protection box is configured. The cross-sectional area of the power cable is 1.5
mm
2
.
BTS3902E WCDMA
Hardware Description
3 BTS3902E Cables
Issue 09 (2014-05-16) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
18
