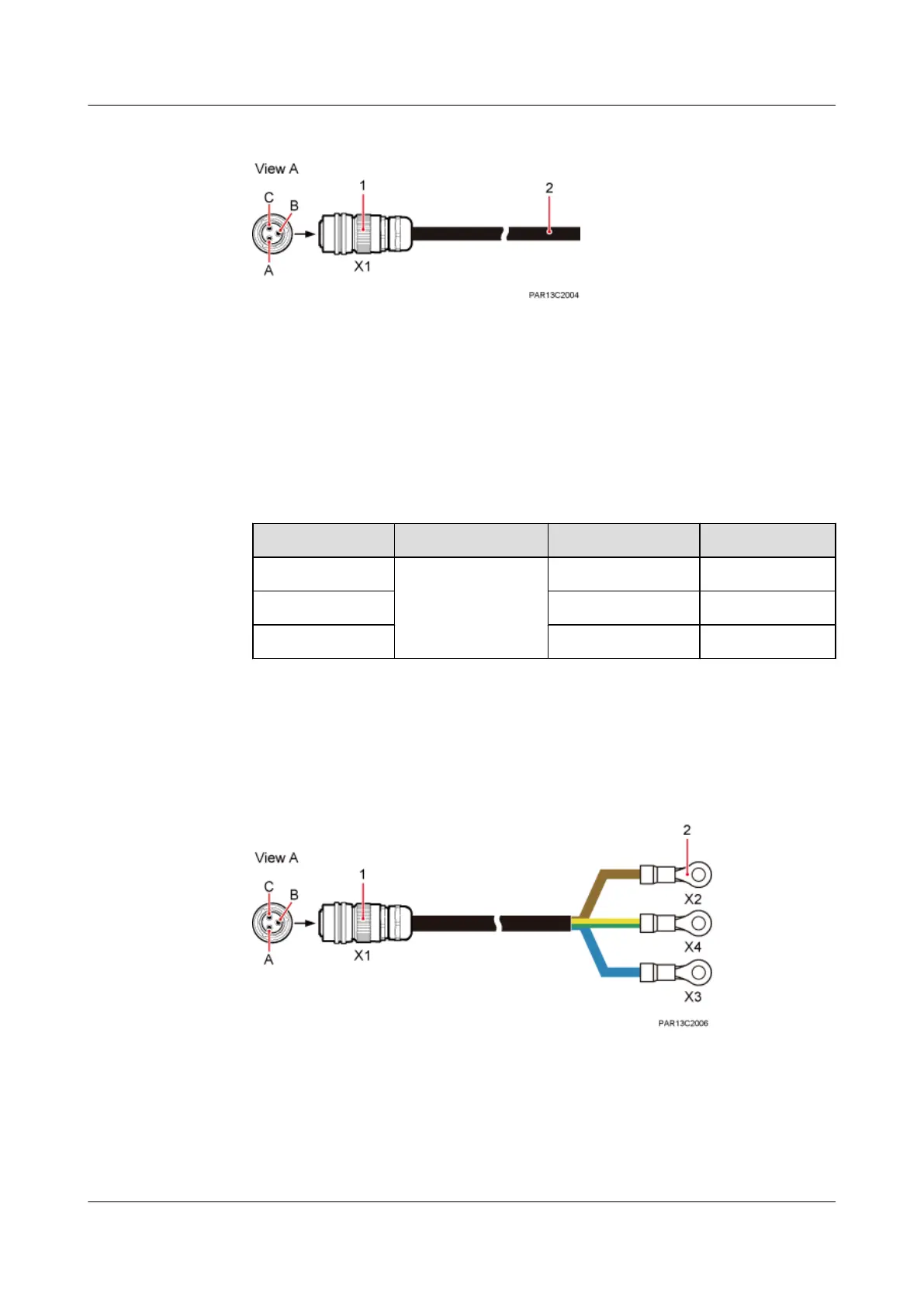

Figure 3-3 Power cable between a BTS3902E and a power device
(1) 3-pin waterproofed round AC connector (2) Bare wire
Table 3-5 describes the pin assignment for the wires of the power cable between a
BTS3902E and a power device.
Table 3-5 Pin assignment for the wires of the BTS3902E power cable (AC surge protection
box not configured)
BTS3902E End Power Device End Wire Color Description
X1.A Bare wire Brown L
X1.C Blue N
X1.B Yellow and green PE
l With an AC Surge Protection Box
Figure 3-4 shows the power cable between a BTS3902E and an AC surge protection box,
which is already configured. The cross-sectional area of the power cable is 1.5 mm
2
.
Figure 3-4 Power cable between a BTS3902E and an AC surge protection box
(1) 3-pin waterproofed round AC connector
(2) OT terminal
Table 3-6 describes the pin assignment for the wires of the power cable between a
BTS3902E and an AC surge protection box.
BTS3902E WCDMA
Hardware Description
3 BTS3902E Cables
Issue 09 (2014-05-16) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19
