4.1 IFS06
An Indoor Floor installation Support (IFS06) is used for installing indoor BTS3902Es which are
equipped with external antennas.
Exterior

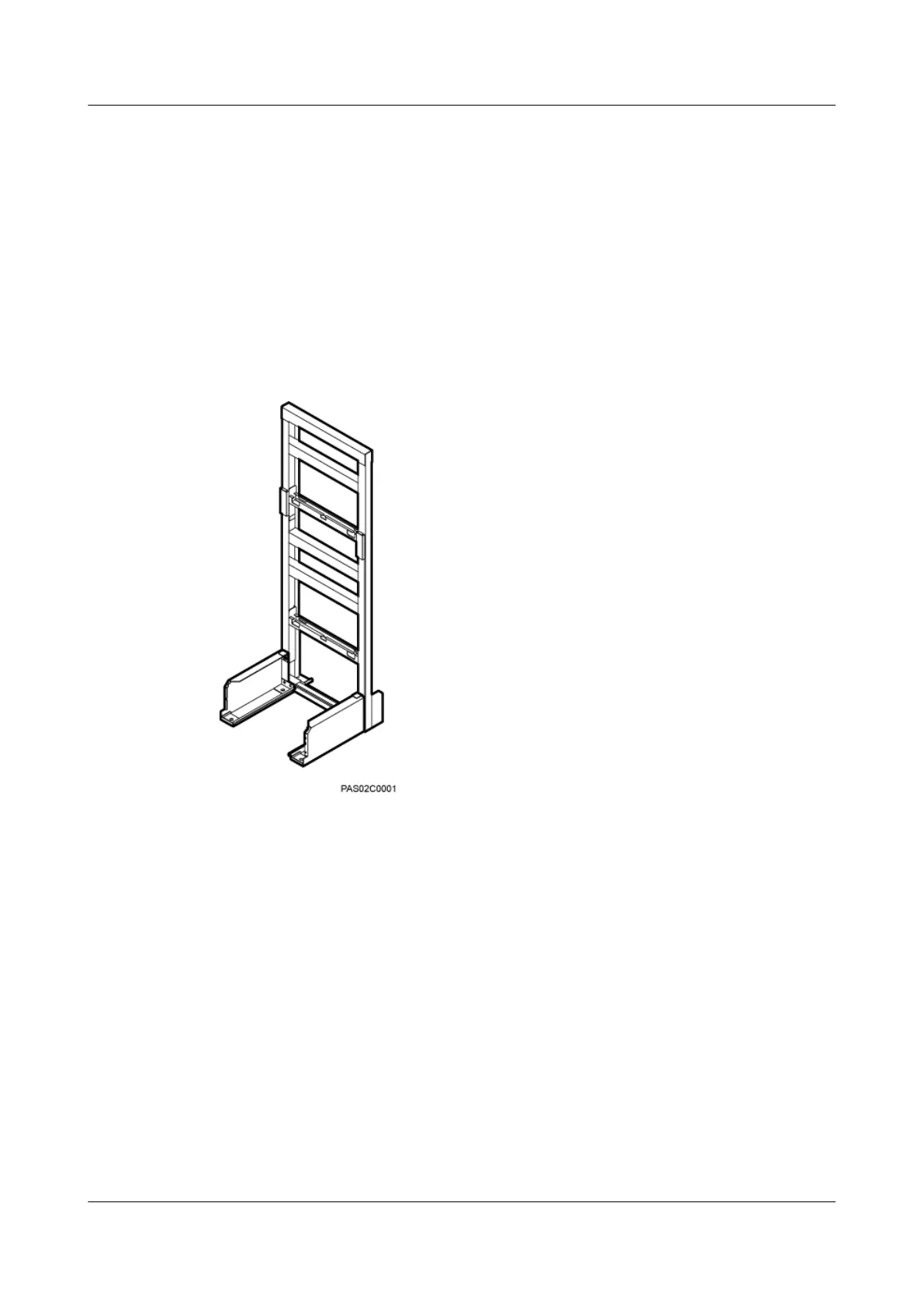

Figure 4-1 shows an IFS06.
Figure 4-1 IFS06
Function
l It can be installed on the ground.
l It supports the installation of four BTS3902Es.
l It supports the installation of two BTS3902Es.
l The upper and lower adjustable beams on an IFS06 can be moved up and down to fit for
heights of BTS3902Es.
Structure
The IFS06 consists of the main frame, cable tray, upper and lower adjustable beams, and front
and rear feet, as shown in Figure 4-2.
