Feature Description
Operating ambients Operating temperature: -40°C to +65°C (-40°F to 149°F)
Long-term relative humidity: 5% to 85%
Short-term relative humidity: 5% to 95%
Storage ambients Storage temperature: -40°C to +70°C (-40°F to 158°F)
Storage humidity: 0% to 95%
4.8 32-Port E1 Physical Interface Card(PIC, 120ohm)
Overview
The 32-Port E1 Physical Interface Card(PIC, 120ohm) is hot-swappable and provides up to 32
E1 interfaces. The service type of every interface can be configured flexibly.

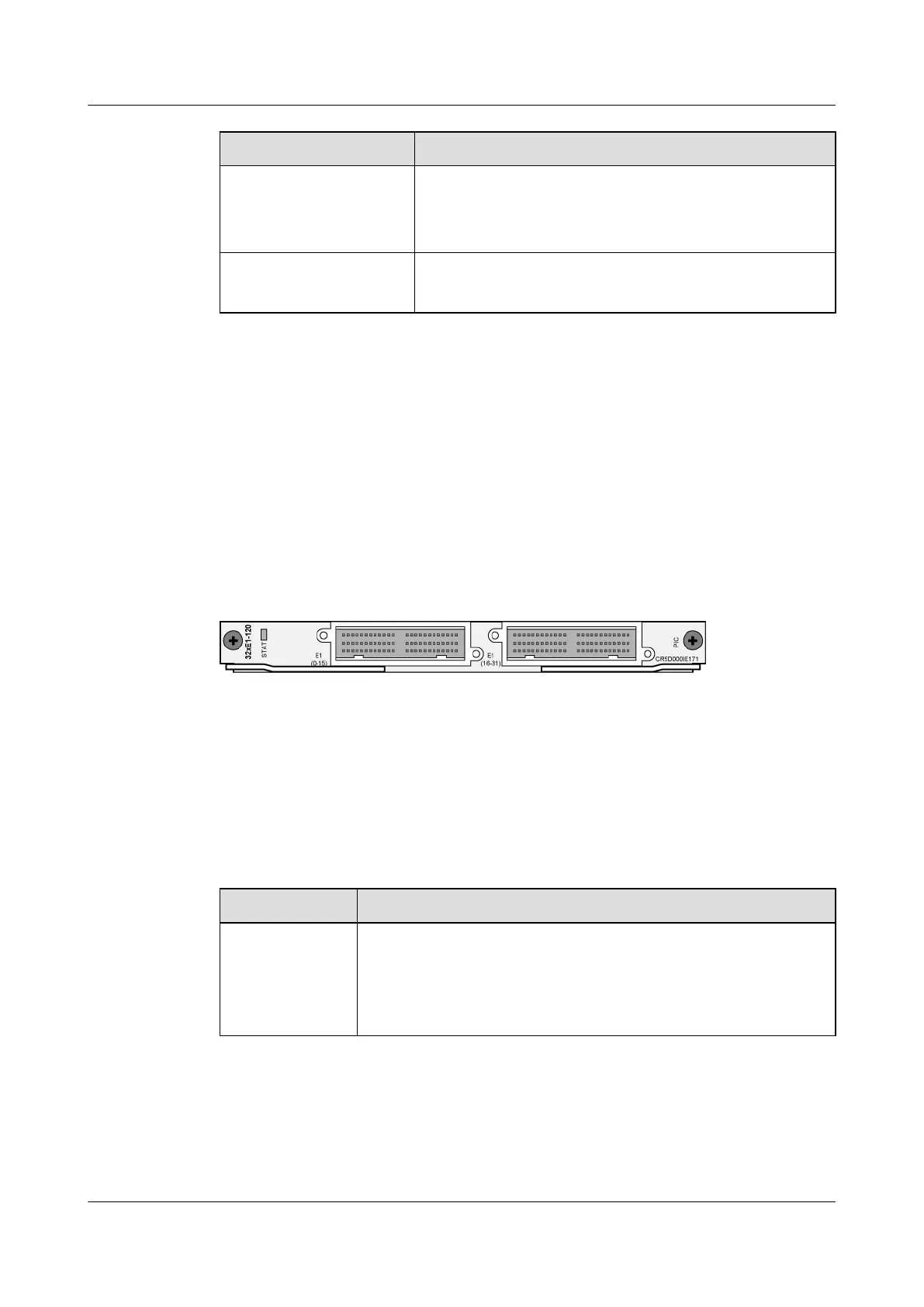

Figure 4-8 shows the appearance of the 32-Port E1 Physical Interface Card(PIC, 120ohm).
Figure 4-8 Appearance of 32-Port E1 Physical Interface Card(PIC, 120ohm)
Panel Description
Table 4-43 describes the buttons and indicators on the 32-Port E1 Physical Interface Card
(PIC, 120ohm).
Table 4-43 Buttons and indicators on the 32-Port E1 Physical Interface Card(PIC, 120ohm)
Indicator Description
STAT If the indicator is steady green, the card is working properly.
If the indicator is off, the card is not powered on or fails to be registered.
If the indicator is steady red, the card hardware card is faulty.
If the indicator is steady yellow, logic is not loaded to the card.
Interface Attributes
Table 4-44 shows the interface attributes of the 32-Port E1 Physical Interface Card(PIC,
120ohm).
