connector, and the other end is connected to the Digital Distribution Frame (DDF). The connector
is manufactured based on the actual requirements.
5.9.2 Architecture
One end of the 75Ω trunk cable is connected to the 155M electrical interface optical module
through the SAA connector. Figure 5-9 shows the cable appearance.

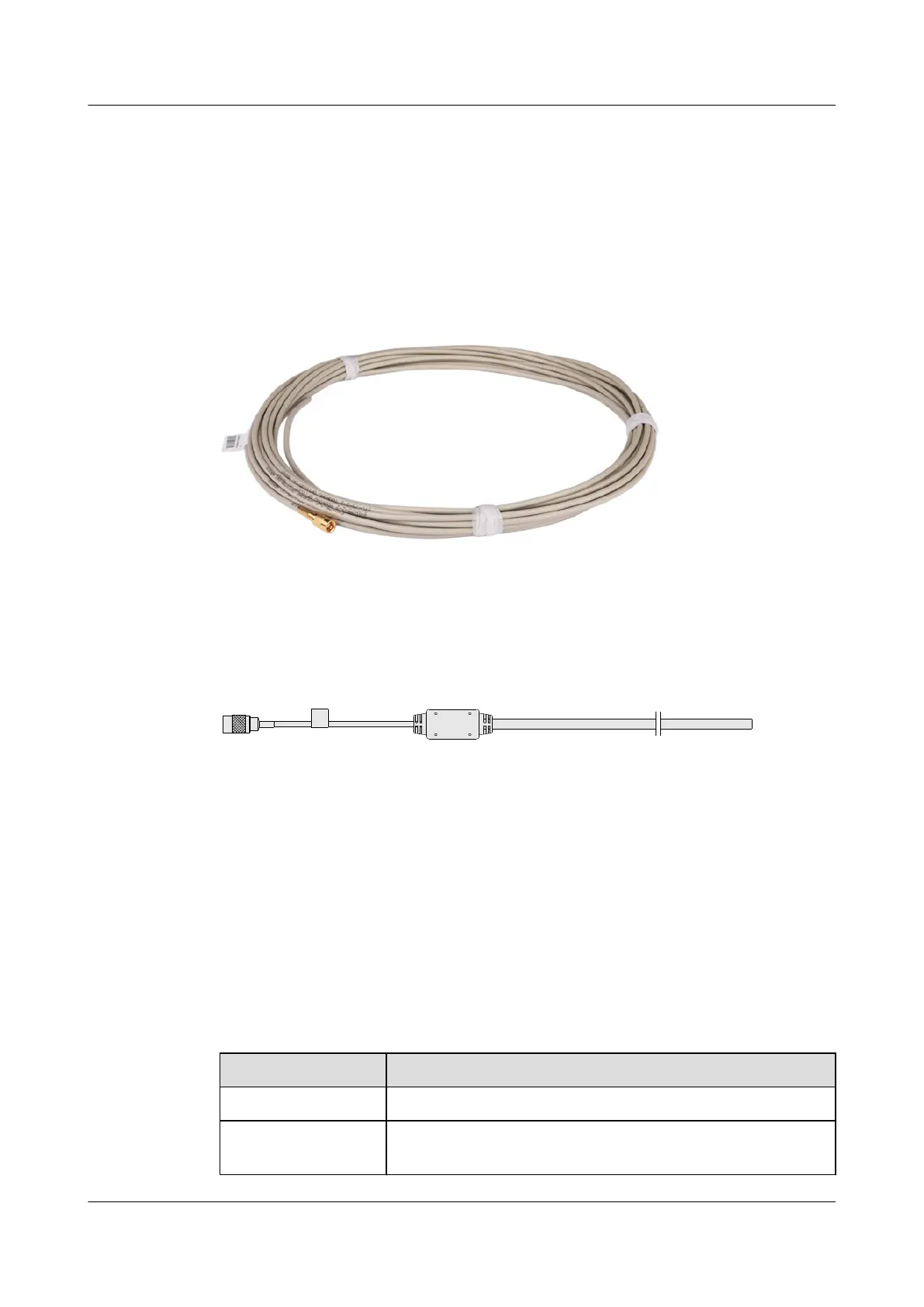

Figure 5-9 75-ohm 155M electrical interface optical module cable
Figure 5-10 shows the architecture of the 75-ohm 155M electrical interface optical module
cable.
Figure 5-10 Architecture of the 75-ohm 155M electrical interface optical module cable
W1
W2
5.9.3 Technical Specifications
Technical Specifications of the 75-ohm 155M Electrical Interface Optical Module
Cable
Table 5-23 shows the technical specifications of the 75-ohm 155M electrical interface optical
module cable.
Table 5-23 Technical specifications of the 75-ohm 155M electrical interface optical module
cable
Item Parameter
Cable name Trunk Cable,10m,75ohm,3.9mm,SAA75SM-I,SYV75-2/0.34(S)
Connector RF Coaxial Connector,SAA,75ohm,Straight
Plug,Male,Matching,SYV-75-2-2
HUAWEI CX600-X1-M/CX600-X2-M Series Metro
Services Platform
Hardware Description 5 Cables
Issue 03 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
152
