Item Specification
Weight 2.6 kg ( 5.73 lb )
Dimensions (H x W x D) 20 mm x 194 mm x 226 mm (0.79 in. x 7.64 in. x 8.90 in.)
Earliest Software Version V800R005C01
3.4.4 Introduction to the NPU-120
NOTE
NPU-120 must not be installed in an outdoor cabinet.
The NPU-120 has a 120-Gbit/s forwarding capability in each direction, and all subcards
exchange data through the NPU-120.
You can install two NPUs on the chassis of the CX600-X2-M16. The two NPUs can work in 1
+1 or 1:1 mode. In 1+1 mode, the NPU-120 is connected to the eight PICs. In 1:1 mode, the
NPU-120-E is connected to the sixteen PICs.
The NPU-120 consists of the following planes:
l Control and management plane
Through the management channels between MPUs and NPUs, the MPUs can manage
NPUs and associated subcards, and transmit routing protocol data.
l Data forwarding plane
The NPUs are responsible for service processing in the entire system, and are connected
to all subcards through data channels.
Table 3-19 NPU parameters
Item Description Remarks
Forwarding capability 120 Gbit/s (bidirectional) -

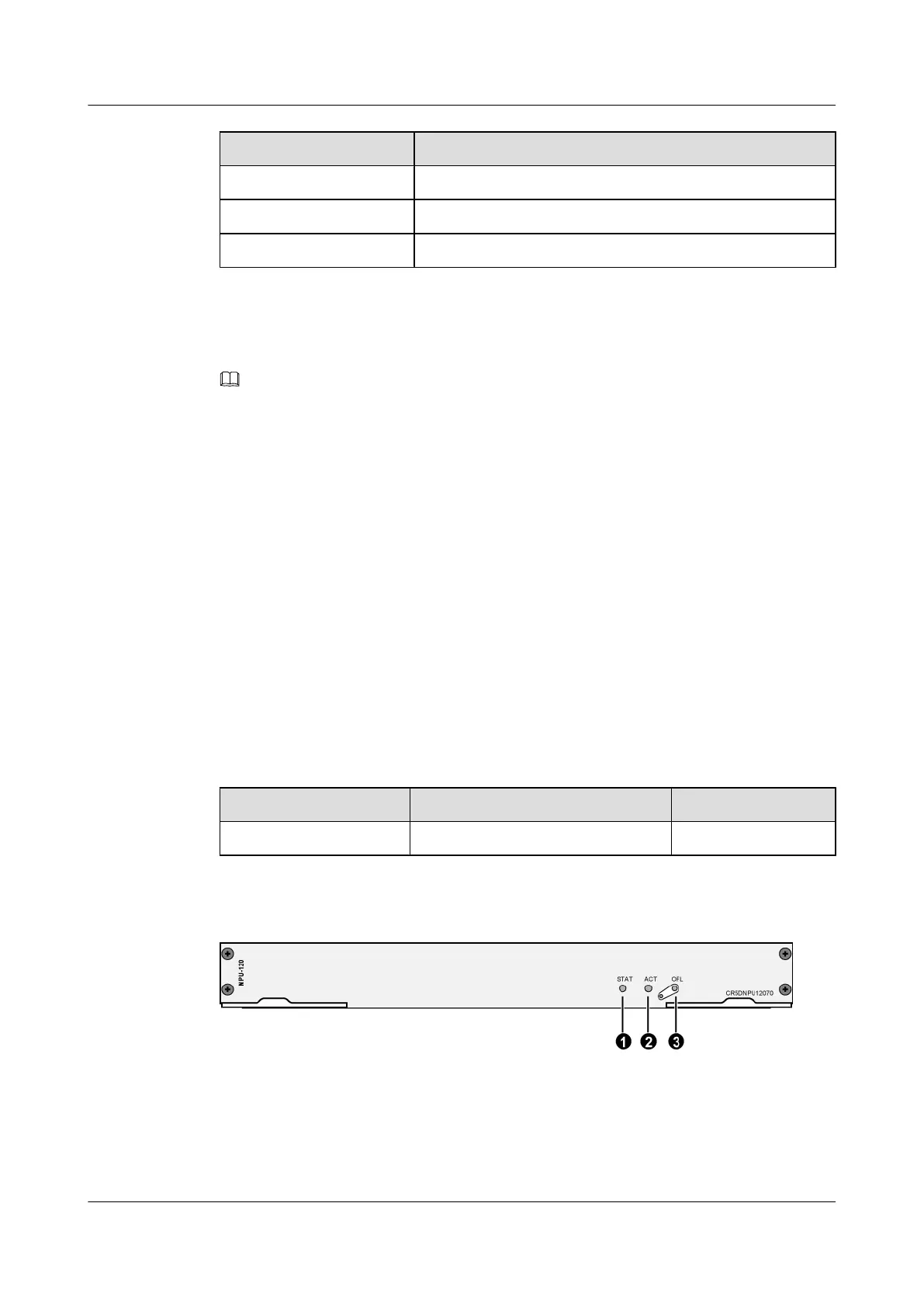

Figure 3-14 Appearance of the NPU panel
1. STAT indicator
2. ACT indicator 3. OFL button
Table 3-20 describes the buttons and indicators on the NPU panel.
