5.4 Installing FE Communications Cables
Context
Table 5-4 FE communications port
Port Function Description
LAN RJ45 network port Connects to a charger.
WAN RJ45 network port Connects to a router.
NO TE
● The EMMA is connected to the router through the FE or WLAN port.
● If there are two chargers, they must be connected to the router only through the FE or
WLAN port. Do not connect one charger to the EMMA and the other charger to the
router respectively at the same time.
Procedure
Step 1 Connect the FE communications cables.

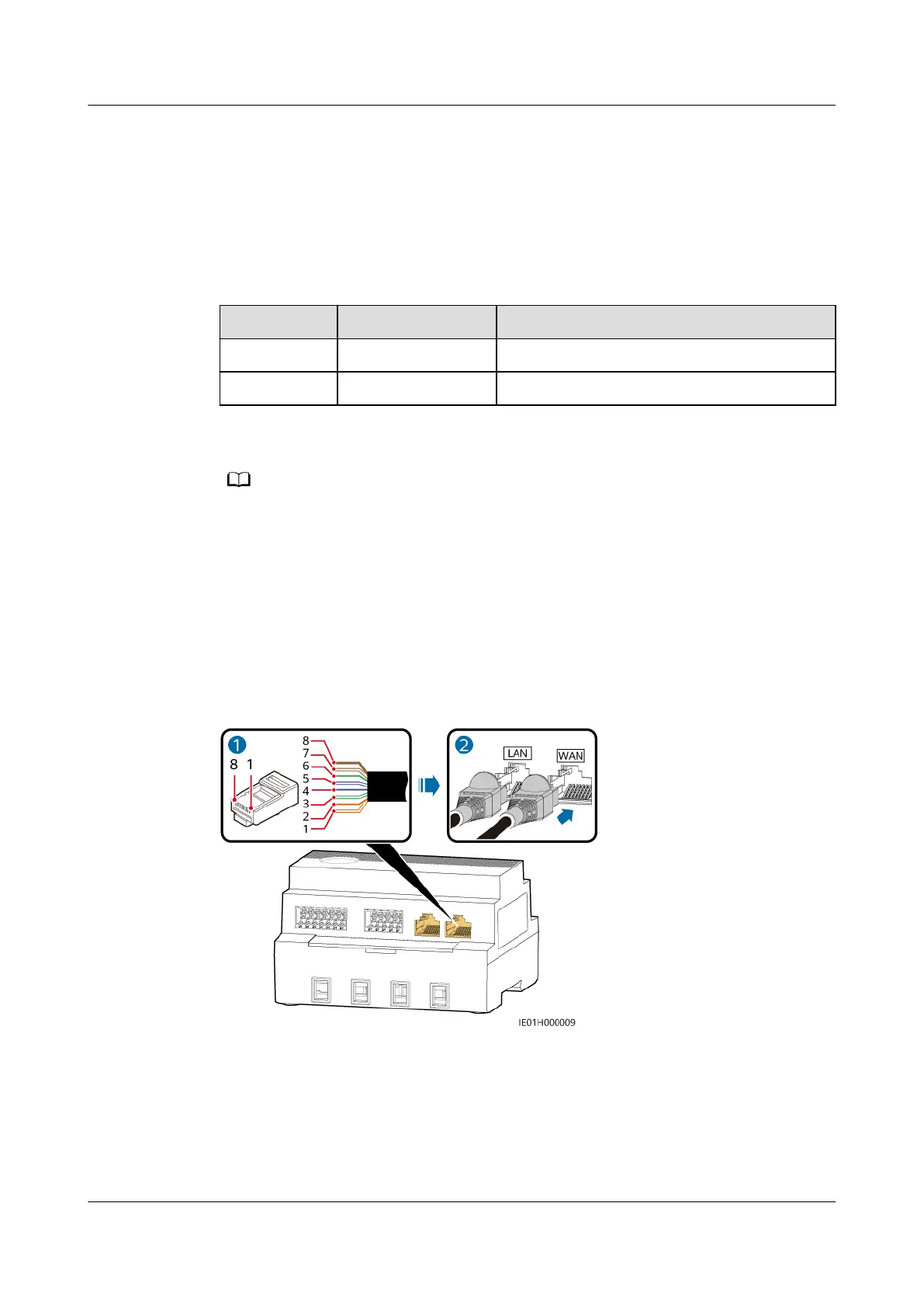

Figure 5-14 Connecting FE communications cables
(1) White-and-orange
(2) Orange (3) White-and-green (4) Blue
(5) White-and-blue (6) Green (7) White-and-brown (8) Brown
----End
