5.5 (Optional) Installing External WLAN Antennas
The EMMA can connect to a WLAN built-in antenna by default. If the signal
quality of the power distribution box is poor, an external antenna with the RP-
SMA-J port can be congured to enhance the signal quality.
Procedure
Step 1 Remove the dustproof cap from the ANT port.
Step 2 Install the external WLAN antenna.

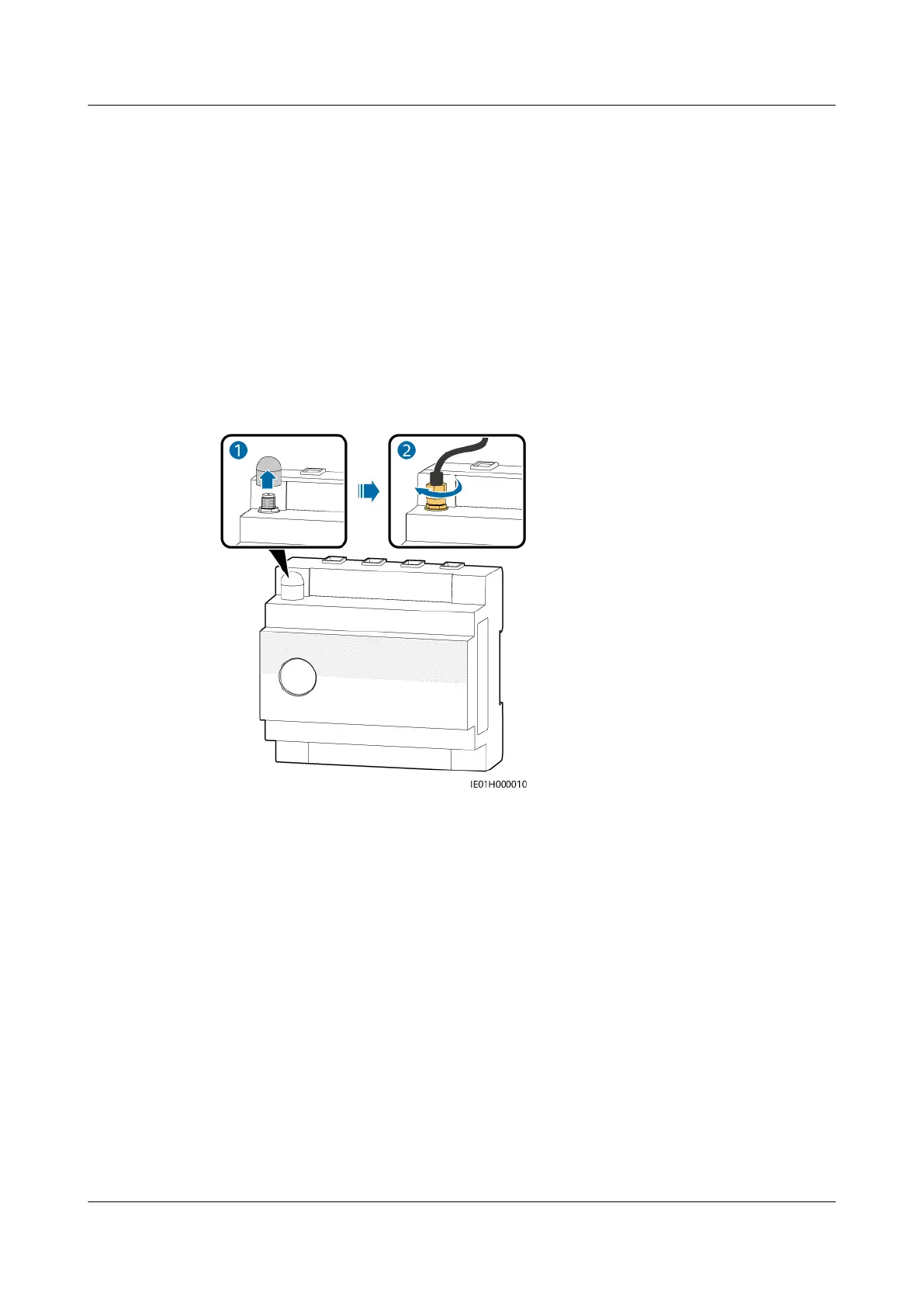

Figure 5-15 Installing a WLAN antenna
----End
EMMA-(A01, A02)
User Manual 5 Electrical Connections
Issue 05 (2024-01-19) Copyright © Huawei Digital Power Technologies Co., Ltd. 39
