Huawei FusionModule500 Product Description

FusionModule500 Smart Mini Data Center
Product Description (ECC800e)
3 System Architecture
Issue 05 (2019-11-22)
Copyright © Huawei Technologies Co., Ltd.
28
Item
Specifications
(Vertically
Installed
Full-Height
rPDU)
Specifications
(Vertically
Installed
Half-Height
rPDU)
Specifications
(Horizontally
Installed 1 U
rPDU)
Output port
configuration
IEC: 20 x C13 + 4 x
C19
Chinese national
standards: 20 x 10 A
+ 4 x 16 A
IEC: 9 x C13 + 3 x
C19
Chinese national
standards: 9 x 10 A
+ 3 x 16 A
IEC: 8 x C13
Chinese national
standards: seven
sockets that comply
with Chinese
national standards
Rated output current
32 A
32 A
16 A
3.2.2 Dual–Live Wire 208 V Power System
3.2.2.1 Overview
The UPS supplies uninterruptible power to IT loads by means of batteries when the external
power supply fails.

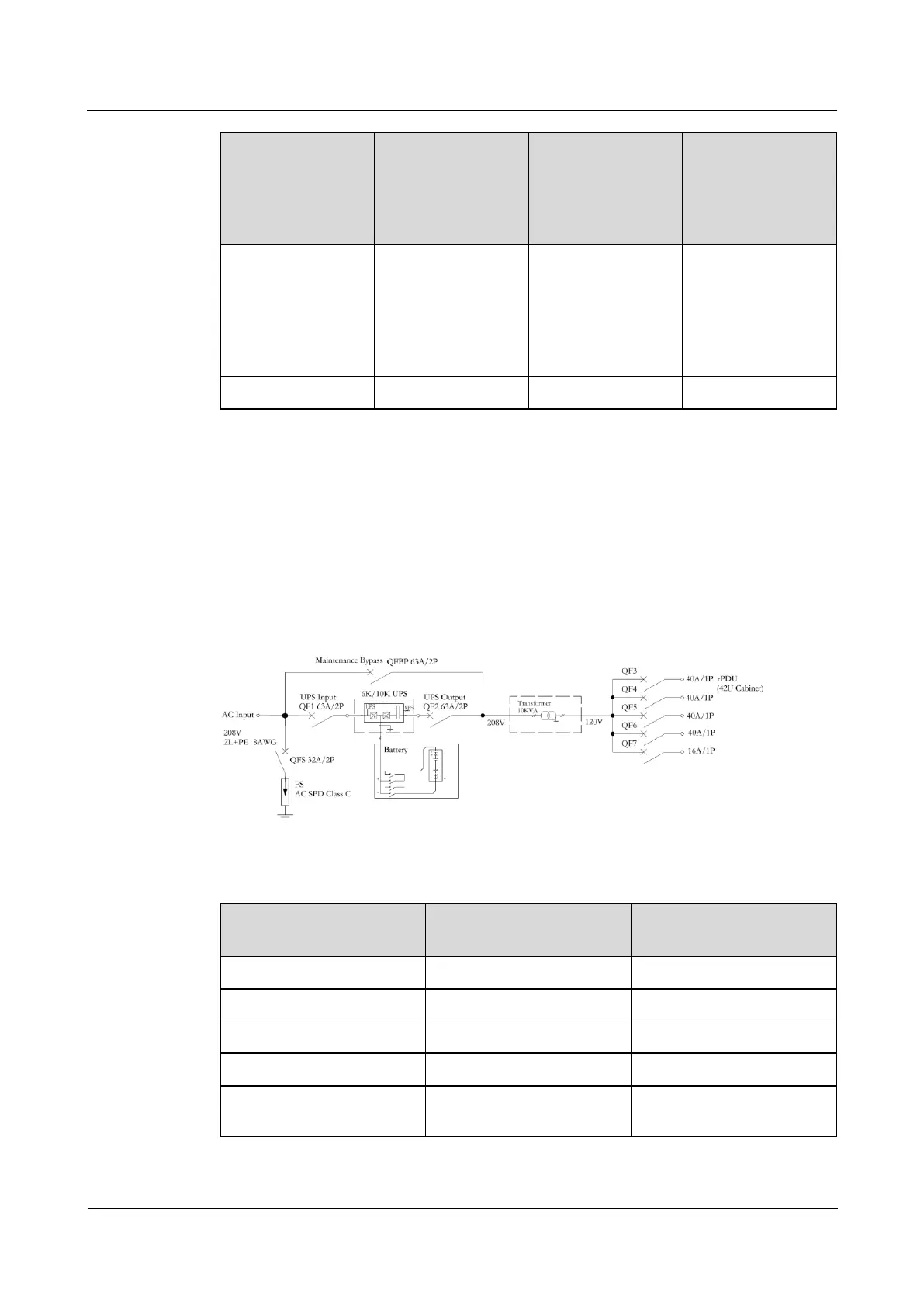

Figure 3-7 Electrical conceptual diagram for the 208 V dual-live wire system configured with the
10 kVA/6 kVA UPS
Table 3-8 Power distribution system technical specifications
Item
Specifications (10 kVA
UPS)
Specifications (6 kVA
UPS)
Rated power
8.1 kW
4.8 kW
Rated input voltage
208 V
208 V
Rated frequency
60 Hz
60 Hz
Maximum input current
48 A
31 A
External input power
distribution circuit breaker
63 A
50 A
