Huawei FusionModule500

FusionModule500 Smart Mini Data Center
Product Description (ECC800e)
3 System Architecture
Issue 05 (2019-11-22)
Copyright © Huawei Technologies Co., Ltd.
37

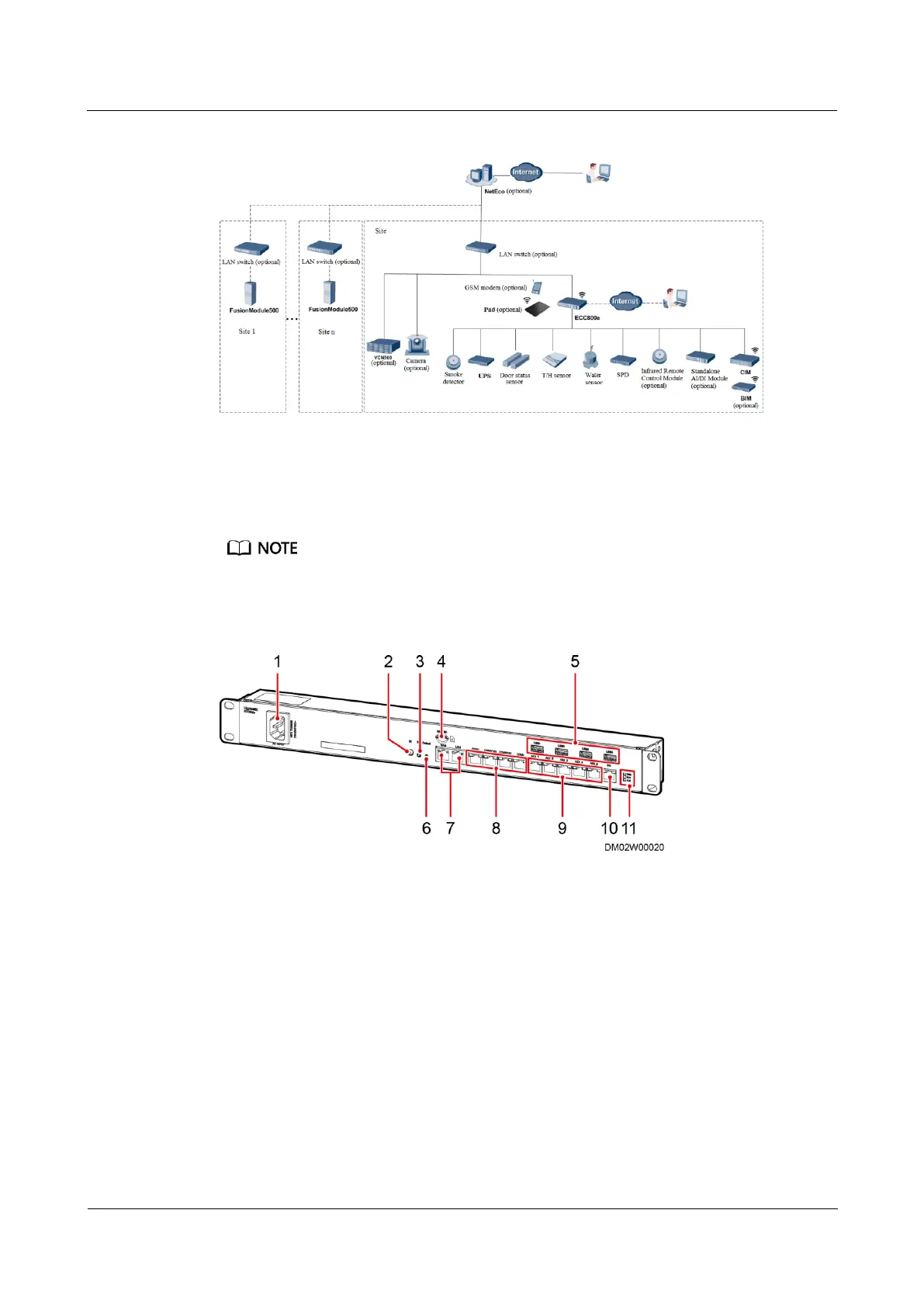

Figure 3-14 System network diagram
3.4.2 ECC800e
The ECC800e monitors the equipment and environment inside the smart module.
The ECC800e supports alarm notification by SMS and email, enabling remote maintenance. Information
about a maximum of 20 users who will receive alarm notification can be displayed.
Figure 3-15 Appearance
(1) Power input
socket
(2) Infrared receiver (IR)
(3) SW button
(4) Micro SD port
(5) USB (USB1–USB4) port
(6) Default button
(7) FE port (WAN
port and LAN port)
(8) RS485 port (COM1,
COM2–3/12V) and CAN port
(COM4)
(9) AI/DI_1–5 sensor input
ports
(10) DO dry contact
(11) Status indicator
