Huawei HG232f

2 Hardware Installation
HG232f 300Mbps Wireless Router
User Guide
2-4

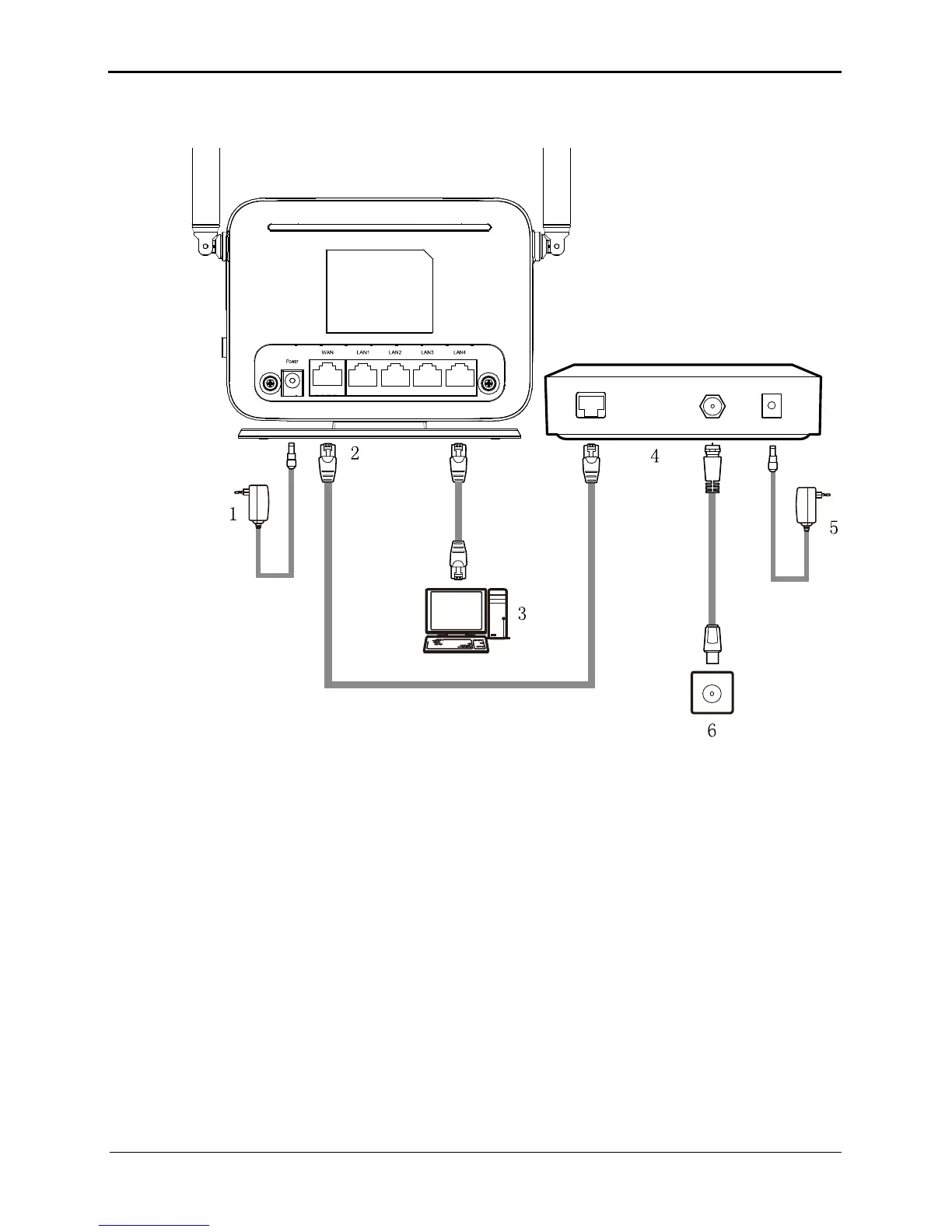

Figure 2-3 Shows the cable connections of a CATV broadband network after the router
is installed on the network
1. Power adapter of the router
2. Router
3. Desktop computer
4. Cable modem
5. Power adapter of the cable modem
6. CATV network interface on the wall
