5-23
Step 3

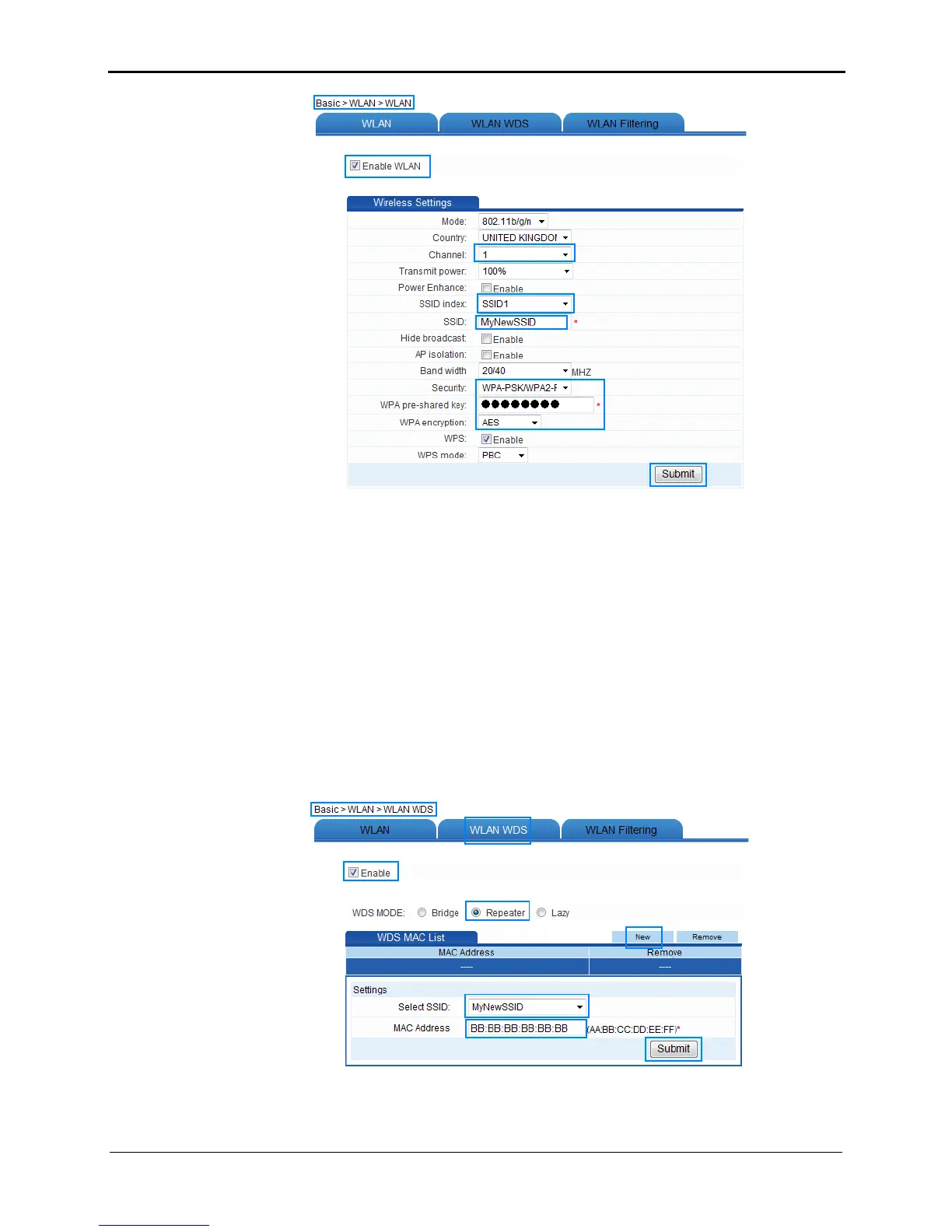

Configure the WDS function of router A.
1. In the navigation tree, choose Basic > WLAN.
The WLAN configuration page is displayed.
2. Click WLAN WDS.
3. Select Enable.
4. Select Repeater for WDS MODE.
5. Click New.
6. Select mySSID for Select SSID.
7. In MAC Address, enter BB:BB:BB:BB:BB:BB.
This MAC address is the wireless MAC address of router B and is recorded in Step 1.
8. Click Submit.
Step 4
Set the WLAN parameters of router B.
