16

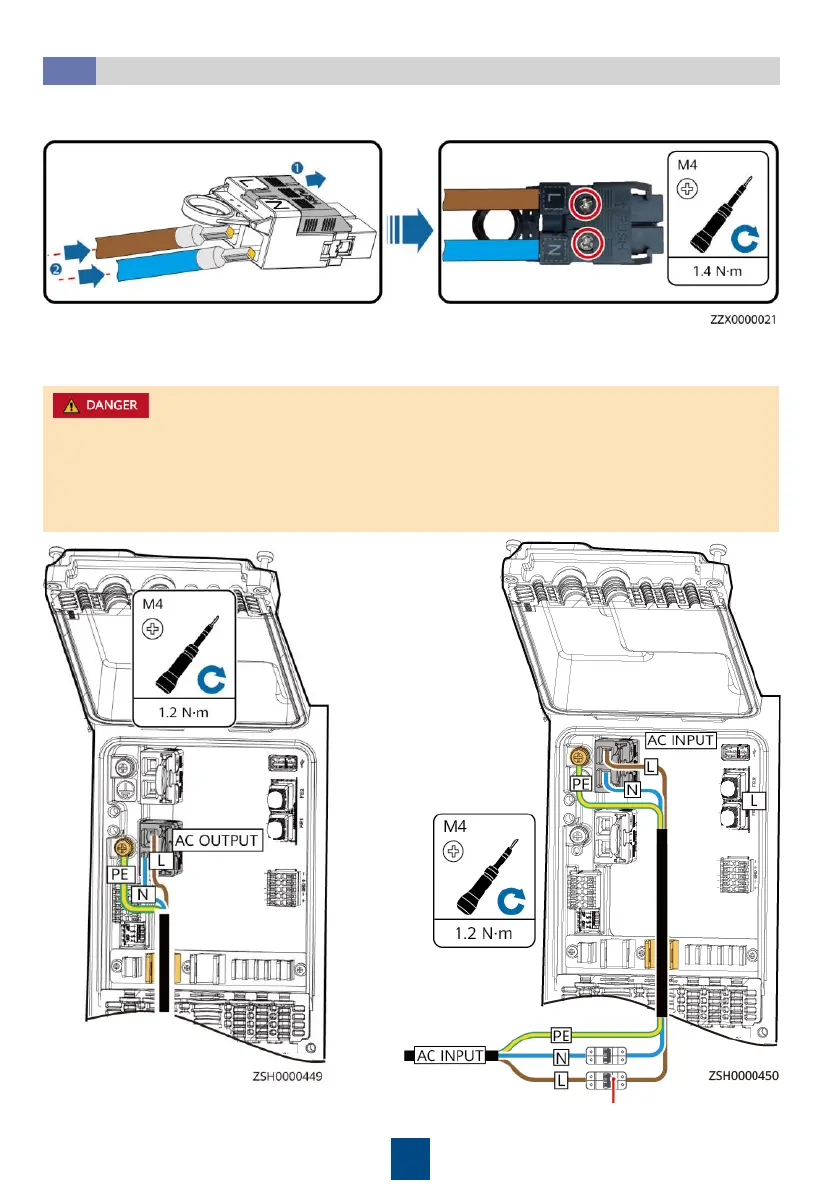

1. Prepare cable terminals by referring to the appendix. Connect AC power cables to the
terminal connectors.
Installing AC Input and Output Power Cables
6.3
Before installing an AC input power cable, ensure that the upstream AC input switch is turned
off and a prominent label indicating "Do not operate" is set.
AC switches (with a capacity of 40 A) must be installed for phases L and N of the iSitePower-
M AC input. The AC switches are delivered with the iSitePower-M. Do not use a Type D circuit
breaker because it cannot effectively protect products.
2. Install the AC output power cable and
secure the cable using cable clips.
3. Install the AC input power cable and
secure the cable using cable clips.
AC input switch
